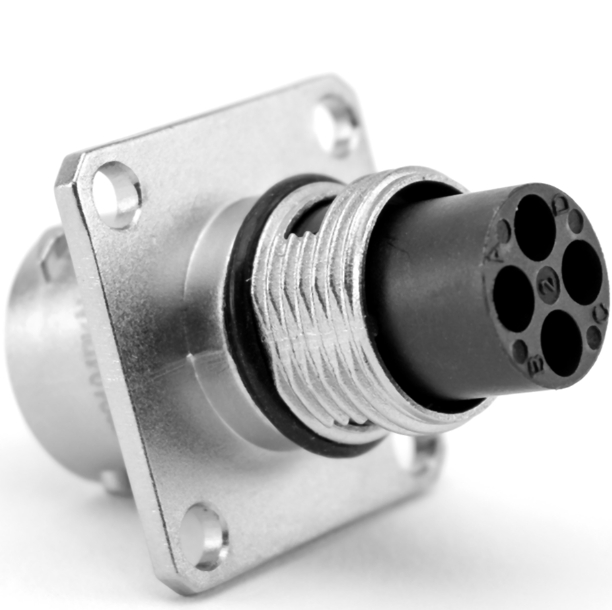

RT00104PKNH03 Square Flange Receptacle,Pin with silicone seal IP69k Amphenol
Short Description:
Receptacle, Square Flange
4 Position
Male
Shell Size 10
Silicone Seal
IP69K
Product Detail
Product Tags
Amphenol RT00104PKNH03 Square Flange Receptacle: Industrial-Grade Sealed Connector。Engineered for extreme environments, it features a zinc alloy housing, bayonet mating, and IP69k-rated silicone seals for unmatched durability
Key Specifications
Position/Contacts：4-position, male (pin) contacts
Current Rating ：13A (250V AC/DC)
IP Rating：IP67 & IP69k (high-pressure/steam resistant)
Housing Material：Zinc alloy
Termination：Crimp
Dimensions：15mm diameter × 32mm length
Flammability Rating：UL 94 V-0
Mounting Style：Panel mount (square flange)
Temperature Resilience: Operates from -40°C to +105°C
Data Overview
| Shell Size | 10 |
| No.of Contacts | 4 |
| Contact Size | 16 |
| Contact Pin or Socket? | Pin |
| AWG | 14-26 |
Contact Features
| Amperage | 13A |
| Housing Material | Zinc Alloy, Nickel Plated |
| IP Rating | IP67 / IP69k (in mated condition) |
| Temperature Range | -40° C to +125°C |
| Gender | Male |
