RT061412PNH03 Standard Circular Connectors Male Plug Amphenol
Short Description:
Male Plug; without Backshell; Size 14; 12 Pin; IP67
rated voltage 500 V
number of positions (w/o PE) 12
rated current (40 °C) 13 A
termination crimp
IP-class mated IP67
Product Detail
Product Tags
Ideal for machinery, vehicles and field equipment, this rugged male plug connector combines Amphenol quality with MIL-DTL-5015 compatibility. The sealed metal construction withstands dust, moisture and mechanical stress while maintaining secure electrical connections.
Data Overview
| part category | male cable connector |
| gender | male |
| locking system | bayonet ring |
| minimum cable diameter | 6.5 MM |
| maximum cable diameter | 12.5 MM |
Contact Features
| rated voltage | 500 V |
| rated current (40 °C) | 13 A |
| number of positions (w/o PE) | 12 |
| min. wire gauge | 0.09 |
| max. wire gauge | 2.5 |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

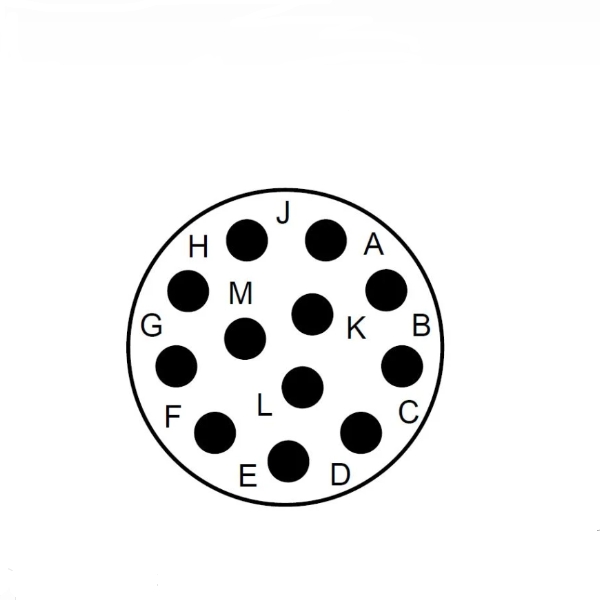

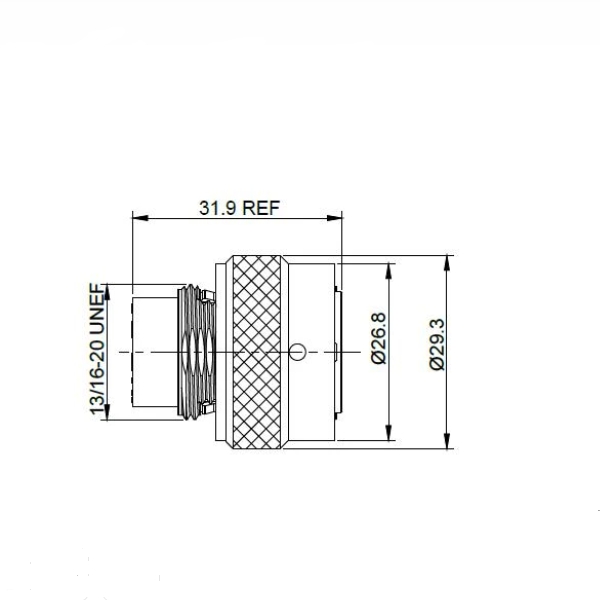

Product Display
