RTS014N12P03 Amphenol12 positions square flange Receptacle, size 14, pin contact
Short Description:
PART NUMBER: RTS014N12P03
Manufacturer: Amphenol Sine Systems
No. of Contacts: 12
Contact Pin or Socket: Pin
Amperage: 13A
Rohs Compliant: Yes
Housing Material: Thermoplastic UL94 V-0
Product Detail
Product Tags
RTS014N12P03 Amphenol 12-Position Square Flange Receptacle
Type: Square flange receptacle
Contact Type: Pin (male)
Position Count: 12
Shell Size: 14
Mounting Style: Flange mount
Orientation: Straight
Current Rating ：13A
Voltage Rating ：500V
Contact Resistance：≤5mΩ
Insulation Resistance：≥1000MΩ at 500V DC
Dielectric Withstanding Voltage：1500V AC
Housing Material：Thermoplastic (TP)
Contact Material：Copper alloy
IP Rating：IP67 (dust tight and protected against immersion)
Flammability Rating：UL 94 V-0
Operating Temperature：-40 to 125°C
Mating Cycles：≥100 cycles
Vibration Resistance：MIL-STD-202G, Method 204D
Shock Resistance：MIL-STD-202G, Method 213B
Length：73mm
Data Overview
| Amperage | 13A |
| No. of Contacts | 12 |
| Shell Size | 14 |
| Contact size | 16 |
| IP Rating | IP67 / IP69k (in mated condition) |
Contact Features
| Contact Pin or Socket | Pin |
| Volt | 500 |
| Rohs Compliant | Yes |
| Gender | Male |
| Temperature Range | -40 to 125°C |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

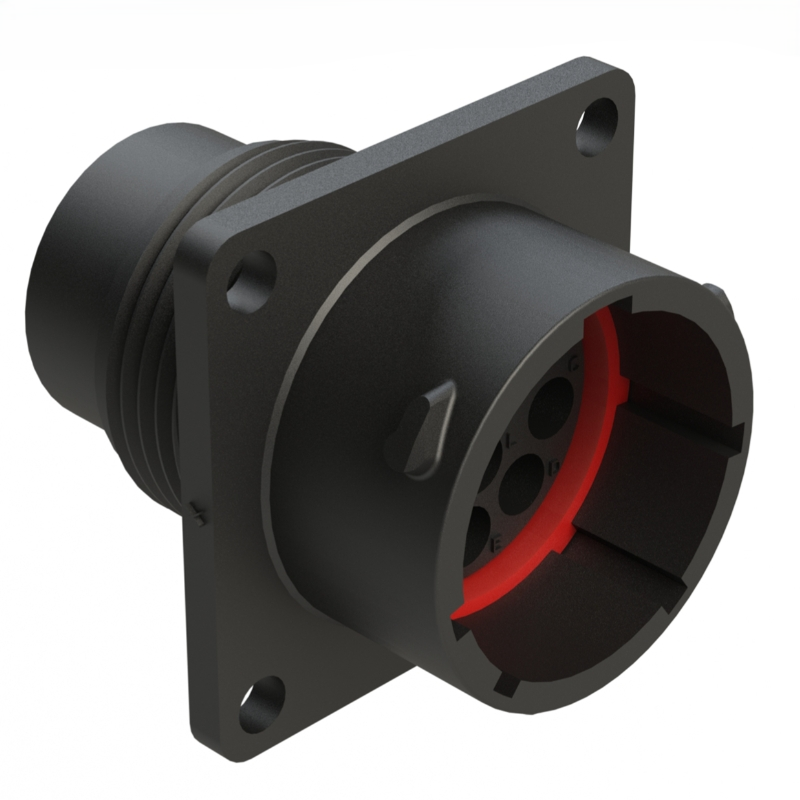

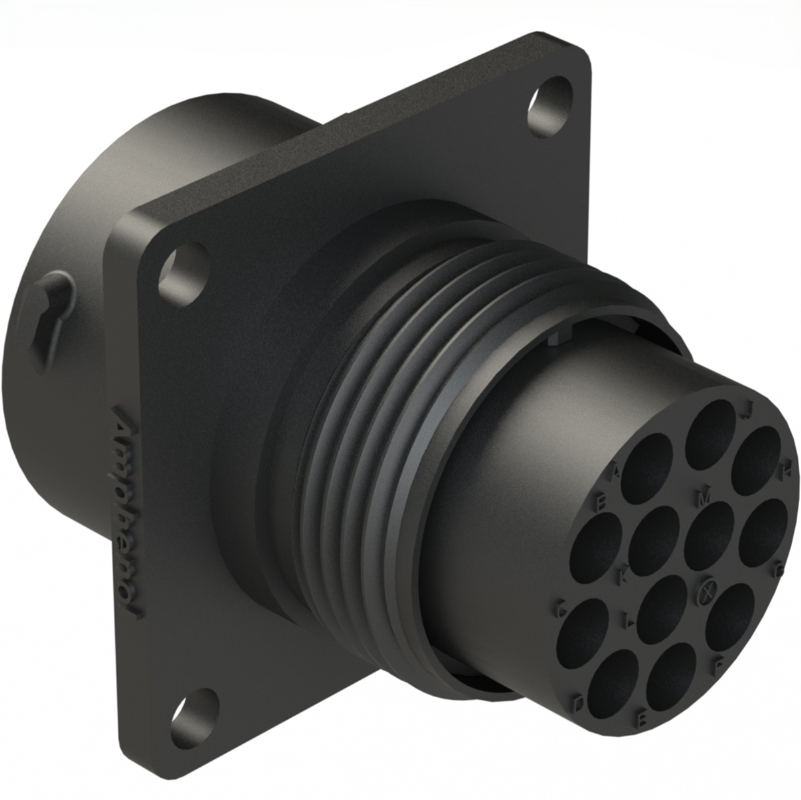

Product Display
