RTS6BS16N19SHEC03 Amphenol Straight plug with endcap 19 positions
Short Description:
RTS6BS16N19SHEC03 Straight plug with endcap
19 positions
size 16
socket contact
Product Detail
Product Tags
RTS6BS16N19SHEC03 is a high-performance circular connector plug from Amphenol SINE Systems, designed for robust industrial and automation environments.
Key Specifications and Features
Positions: 19-pin plug configuration, ensuring versatile connectivity for multi-wire systems.
Shell Size: Compact size 16 shell (diameter approximately 32.5 mm), enabling space-efficient installations.
Mounting Style: Free-hanging (cable-mounted) design with bayonet locking for quick, secure mating and vibration resistance.
Contact Termination: Crimp-style contacts, facilitating reliable wire attachment and easy field maintenance.
Current Rating: 13A per contact, suitable for moderate-power applications like control systems and actuators.
IP Rating: IP69K (equivalent to IP69X) protection, offering full resistance against dust, high-pressure water jets, and temporary immersion up to 1 meter.
Material and Safety: Thermoplastic (TP) shell with UL 94 V-0 flammability rating, ensuring fire safety and long-term durability in harsh conditions.
Mating Cycles: Rated for 500 mating cycles, guaranteeing consistent performance over extended use.
Orientation: Straight plug type with normal (N) orientation, simplifying alignment during assembly.
Environmental Resilience: Operates across a wide temperature range (-40°C to +105°C), making it ideal for extreme industrial or outdoor settings.
Data Overview
| Shell Size | 16 |
| No. of Contacts | 19 |
| Contact Pin or Socket | Socket |
| Termination Technique | Crimp |
| Volt | 500 |
Contact Features
| IP Rating | IP67 / IP69k (in mated condition) |
| Rohs Compliant? | Yes |
| Salt Spray | >500h |
| Temperature Range | -40°C to +125°C |
| Housing Material | Thermoplastic UL94 V-0 |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

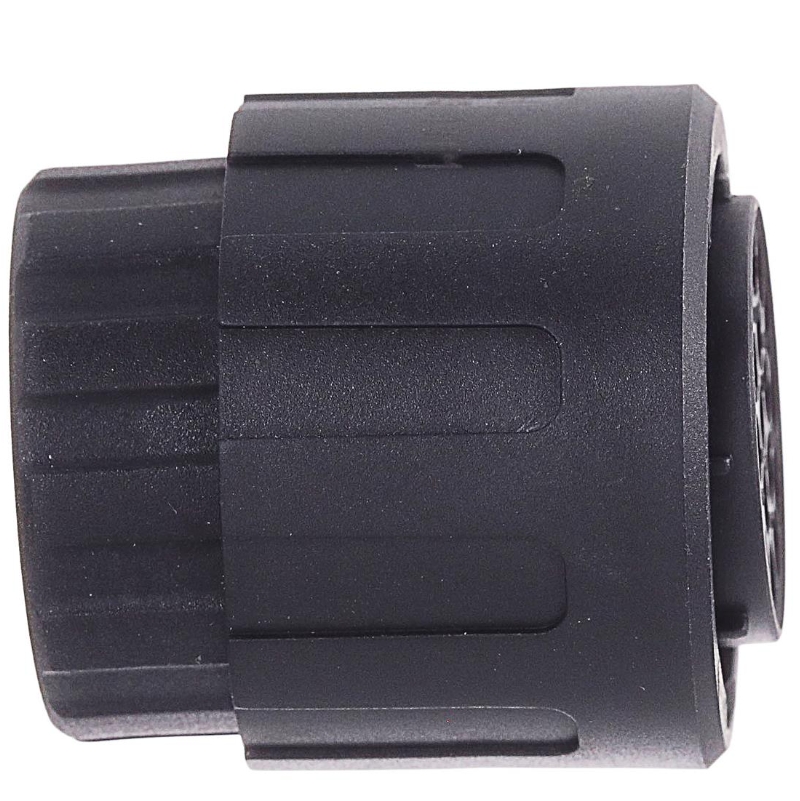

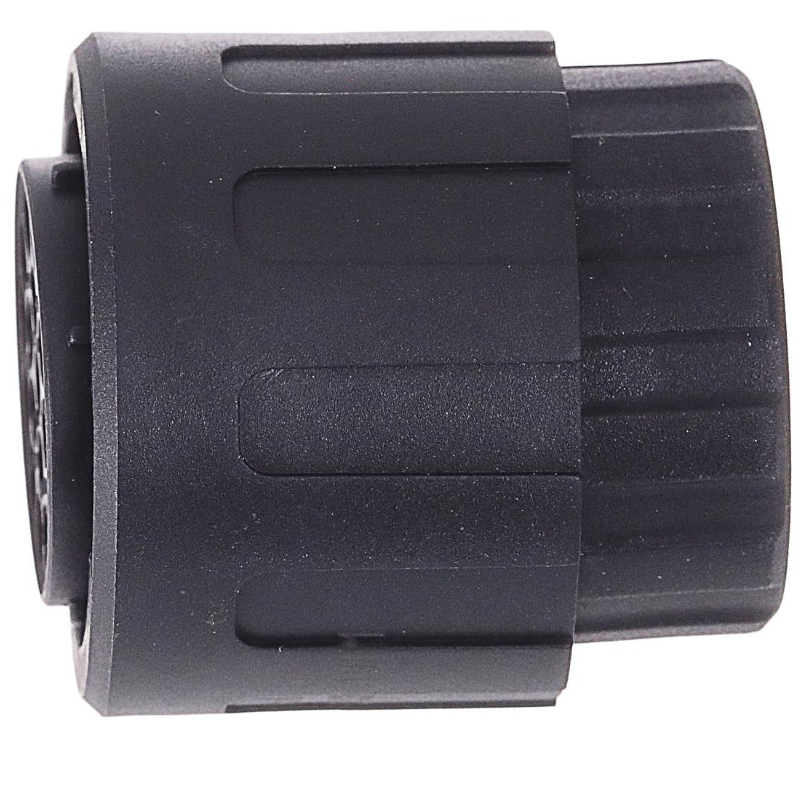

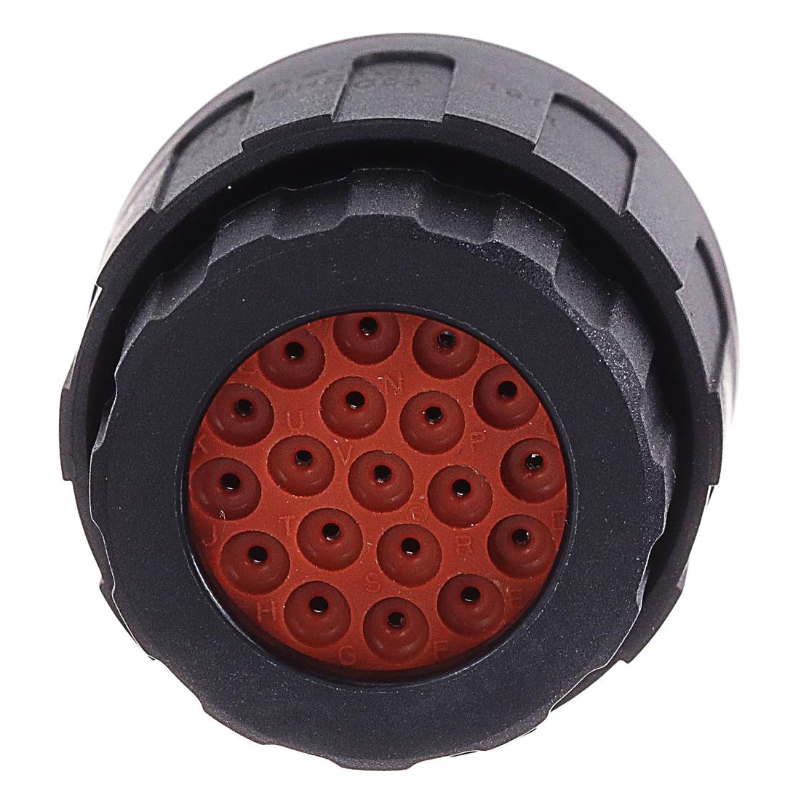

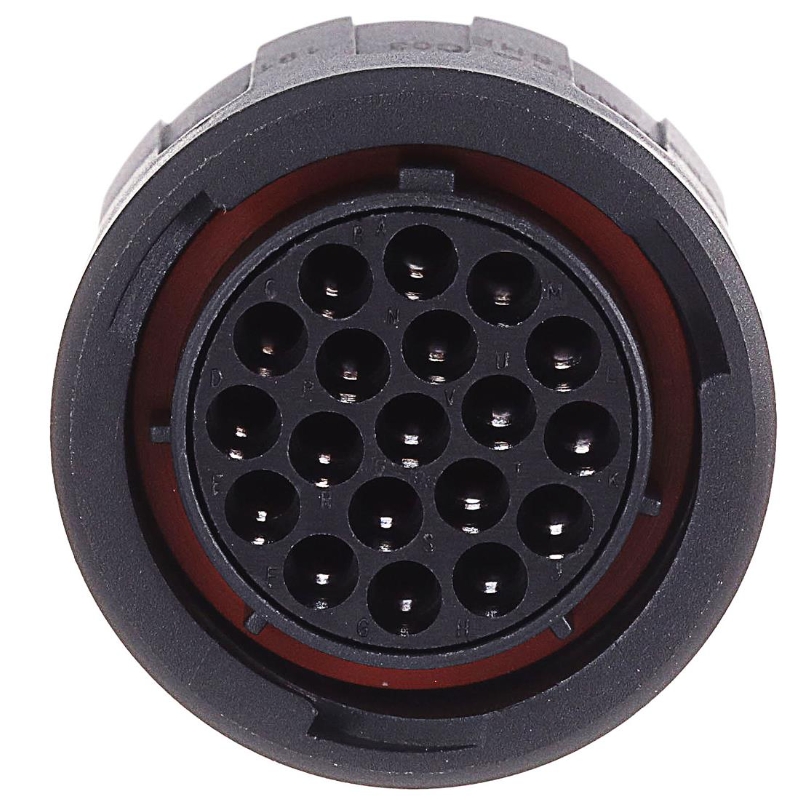

Product Display
