7114-4020 Yazaki Terminals 2.3II(090II) Connector
Short Description:
Mating Part Numbers：7116-4020
Classified Parts：Terminal
Family：2.3II(090II) Connector
Length：26.70
Width：2.30
Height：0.64
Product Detail
Product Tags

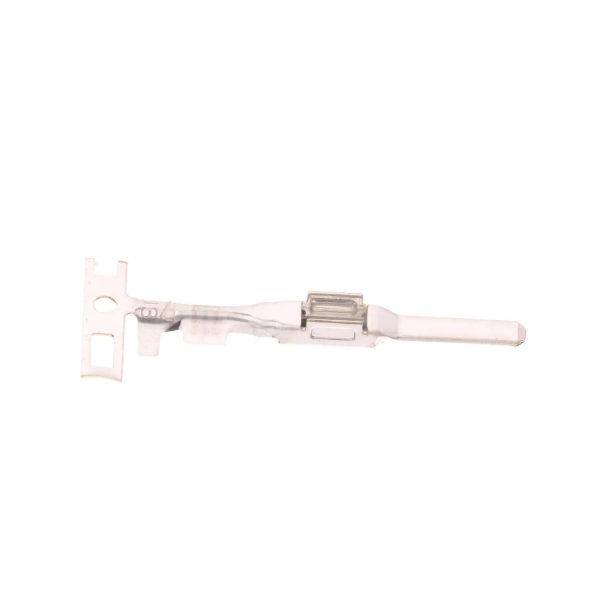

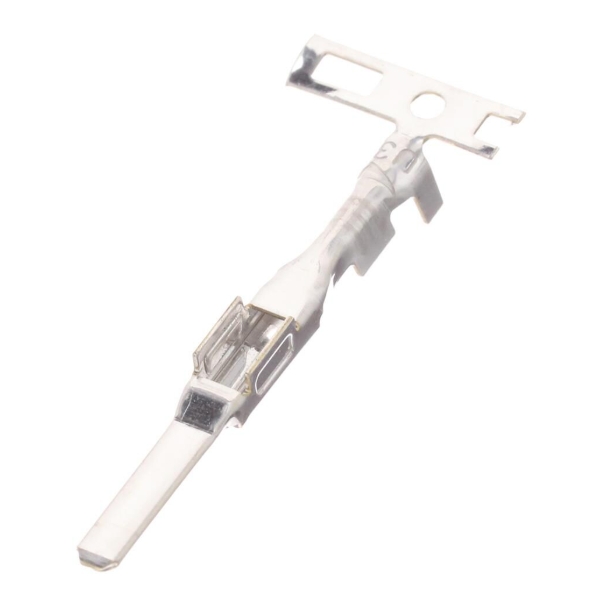

Yazaki 7114-4020 2.3II(090II) Male Terminal，High-Performance Automotive Connector for Secure Wire-to-Wire Connections
Series：2.3II(090II) Connector System
Tab Dimensions：2.3mm (0.09") width × 0.6mm thickness
Wire Compatibility：22–24 AWG (0.5 mm²)
Contact Material：Tin-plated copper alloy
Current Rating ：7–10A (depending on wire gauge)
Temperature Range：-40°C to +125°C
Mating Part：7116-4020 Female Terminal
Compliance：RoHS, ELV
Data Overview
| Product | Terminals |
| Gender | Pin (Male) |
| Mounting Style | Cable Mount / Free Hanging |
| Termination Style | Crimp |
| Contact Plating | Tin |
Contact Features
| Contact Gender | Pin (Male) |
| Locking Mechanism | Housing |
| Allowable Current(Ref.) | 10A(Ref) |
| Insulation resistance | 100Megohm Min.(at 500VDC) |
| Temperature Range | -30 to 80deg.C |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

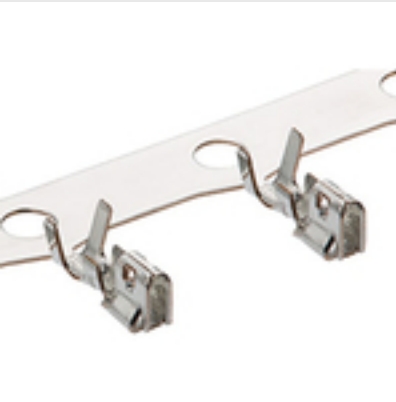

Product Display
