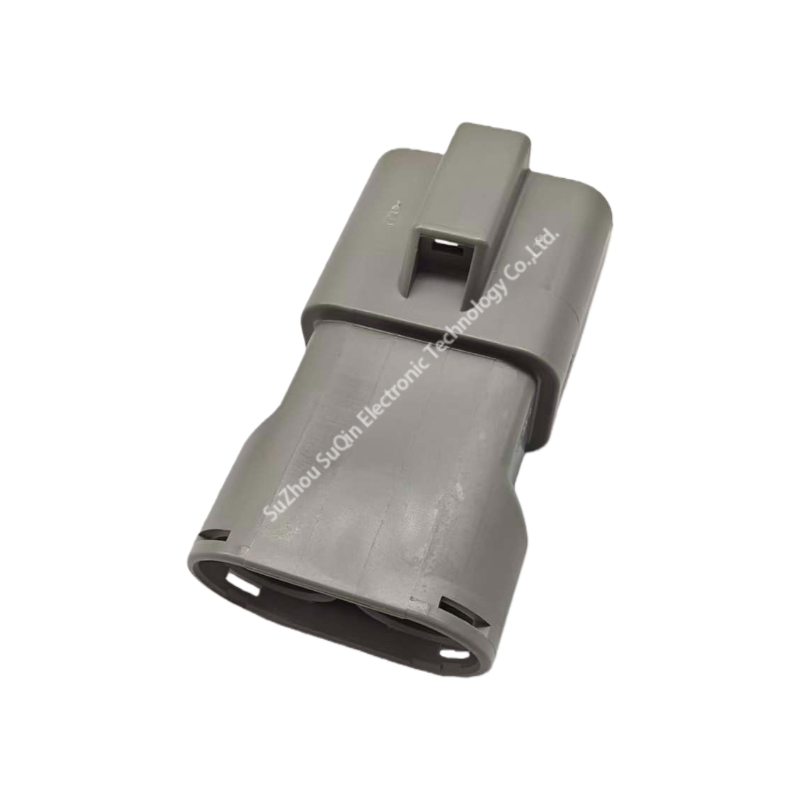

Yazaki 58 Connector Y-Type 2-Pole Male Housing | Sealed, 40A High Current, 9.5mm Tab

Heavy-Duty Power: Yazaki 58 Series Y-Type 2-Pole Connector

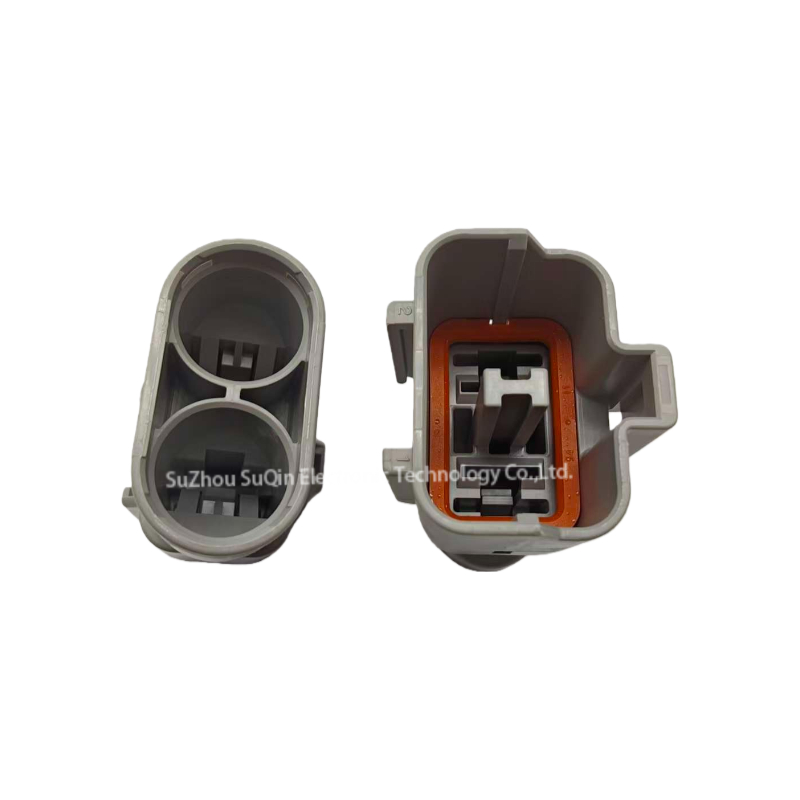

Engineered for High-Current Applications The Yazaki 58 Y-Type housing is designed to accommodate large 9.5mm width terminals, enabling a reference current capacity of 40A.

• Advantage: The wide contact surface area minimizes electrical resistance (Max 2mΩ initial) and heat generation during power transmission.

• Benefit: This makes it the ideal solution for your high-load automotive circuits, such as cooling fans, electric pumps, and main power distribution, ensuring your systems run efficiently without overheating.

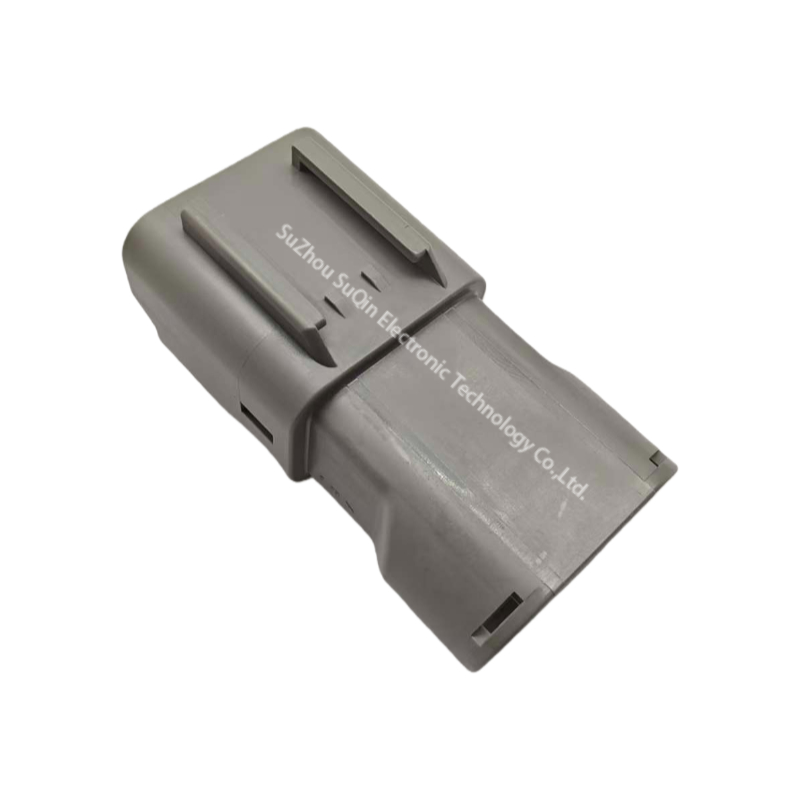

Superior Sealed Protection Featuring a robust sealed wire harness design, this connector housing blocks out moisture, dust, and contaminants.

• Advantage: It maintains high insulation resistance (250MΩ Min) and withstands up to 1000V AC even in tough environments.

• Benefit: You can confidently deploy this connector in exposed areas like the engine bay or chassis, reducing the risk of short circuits and corrosion-related failures, thereby extending the vehicle's service life.

Rugged Thermal & Physical Durability Molded from high-grade Gray PBT material, the housing offers excellent dimensional stability.

• Advantage: It performs reliably across a wide temperature range of -40°C to 120°C and resists chemical exposure common in automotive settings.

• Benefit: Your connection remains secure and structurally sound regardless of weather extremes or engine heat cycles, minimizing maintenance needs.
