YAZAKI 7282-7029-40 Connector Housing (2P Male, 2.3II/090II Series)
Short Description:
Manufacturer:Yazaki
Yazaki Part Number：7282-7029-40
Product Category:Automotive Connectors
Product:Housings
Family：2.3II(090II) Connector
Number of Positions:2
Male/Female：Male
Insulation resistance：100Megohm Min.(at 500VDC)
Withstand voltage：1000V AC (1min.)
Product Detail
Product Tags
Manufacturer:Yazaki
Yazaki Part Number：7282-7029-40
Product:Housings
Family：2.3II(090II) Connector
Number of Positions:2
Male/Female：Male
Series：2.3II(090II) (2.3mm pitch)
Material：PBT (UL94-V0 flame-retardant)
Sealing：Optional waterproof designs
Temperature Range：-40 to 120deg.C)
RoHS Compliance ：Yes (lead-free, environmentally friendly)
Current Rating ：Up to 10A (reference value)
Contact Resistance：≤3mΩ (initial)
Data Overview
| Classified Parts | Housing |
| Family | 2.3II(090II) Connector |
| Number of Poles | 2 |
| Tab size (mm) | 2.30 |
| Allowable Current(Ref.) | 10A(Ref) |
Contact Features
| Connection Type | Wire Harness Connector |
| Unsealed/Seald | Sealed |
| Male/Female | Male |
| Materials | PBT |
| Color | LIGHT GRAY |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

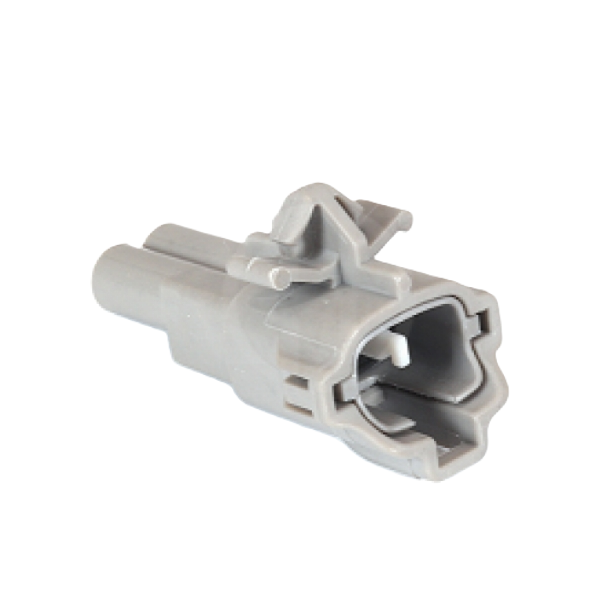

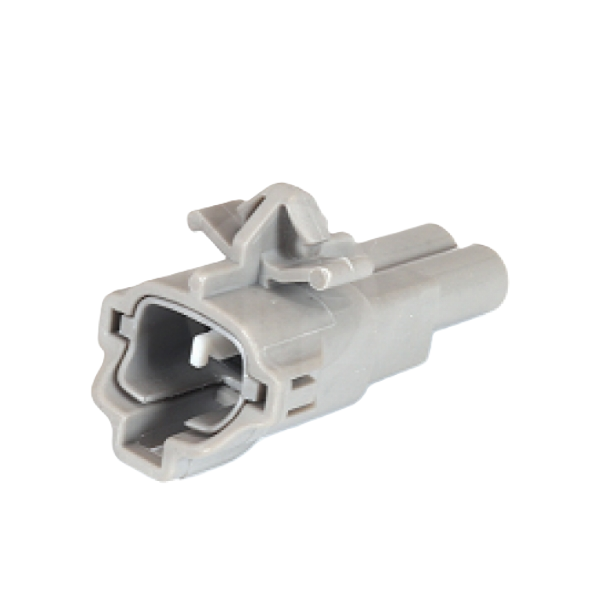

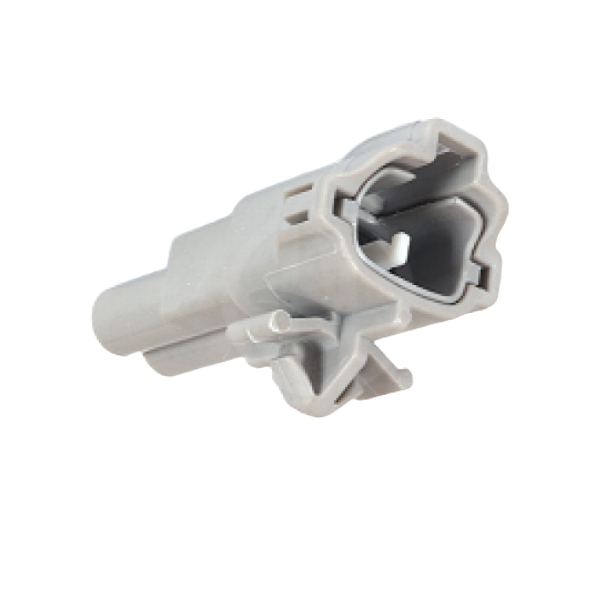

Product Display
