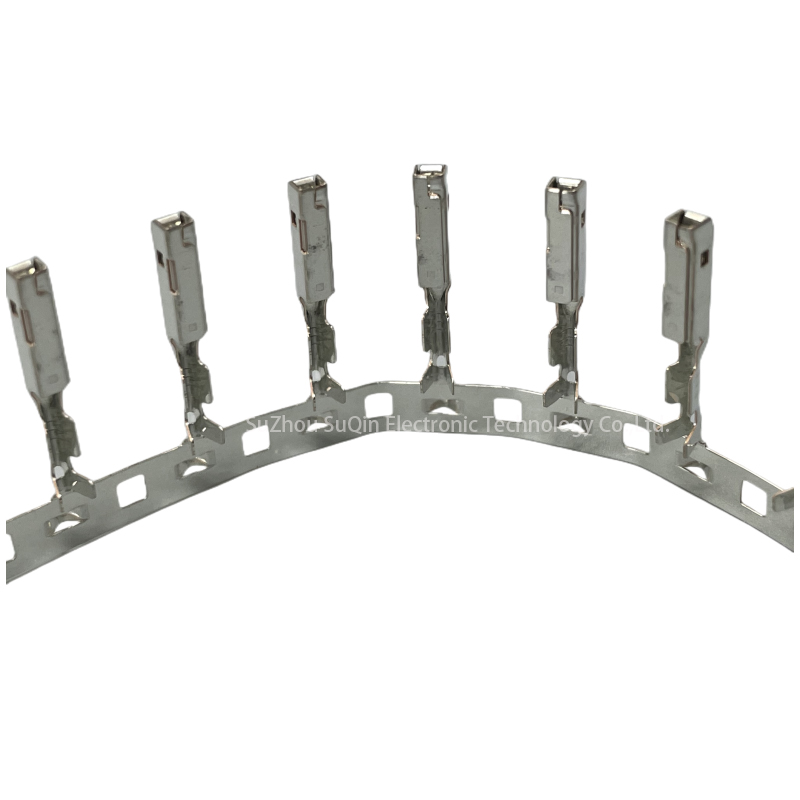

Yazaki original connector wire-to-wire terminal 7116-4780-02
Short Description:
Model number：7116-4780-02
Brand：Yazaki
Mounting Type：Free Hanging (In-Line)
Type:electron component
Application:automotive
Unit price：Contact us for latest quotation
Product Detail
Product Tags
Compact Dimensions: Measuring 20.55 mm in length, 2.60 mm in width, and 2.85 mm in height, the terminal has a compact profile. This compact design is especially beneficial in applications where space is limited, such as in modern automotive electrical systems with complex wiring layouts.Robust Build: The use of a tin - plated copper alloy not only improves conductivity but also makes the terminal highly resistant to vibration, moisture, and thermal stress. These properties are crucial in automotive applications, where components are constantly subjected to harsh conditions.
Data Overview
| Classified Parts | Terminal |
| Unsealed/Seald | Unsealed |
| Tab size (mm) | 1.50 |
| Male/Female | Female |
| Materials | COPPER ALLOY |
Contact Features
| Plating | Tin Plating |
| Allowable Current(Ref.) | 15A(Ref) |
| Low-voltage low-currentresistance | 10milli ohm Max.(Initial) |
| Insulation resistance | 20Megohm Min.(at 500VDC) |
| Withstand voltage | 1000V AC (1min.) |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.
Product Display
