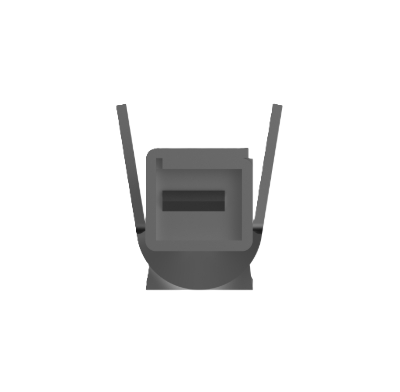

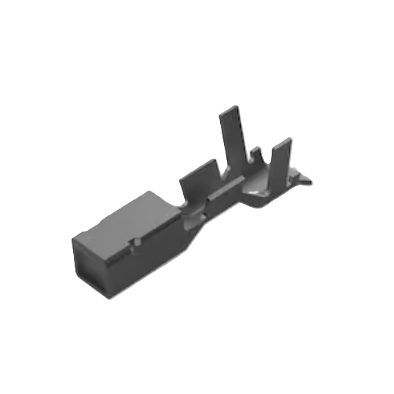

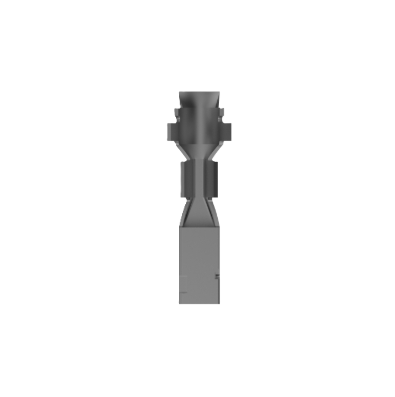

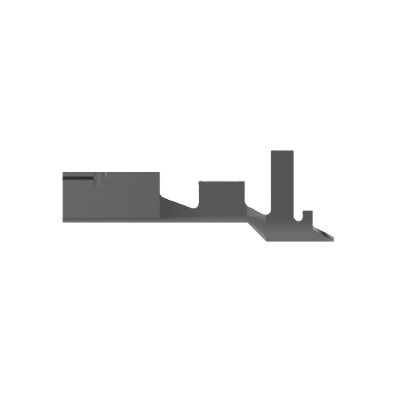

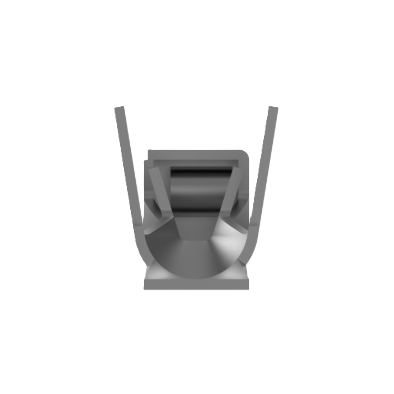

1376348-2 Connector ContactsTin (Sn), Receptacle Contact, 24 – 20 AWG TE
Short Description:
-
Manufacturer: TE Connectivity
-
Part Number: 1376348-2
-
Series: Economy Power (EP)
-
Product Category: Connector Contacts
-
Contact Type: Receptacle (Female)
-
Wire Gauge Range: 24 – 20 AWG (0.2 – 0.6 mm²)
-
Contact Plating: Tin (Sn)
-
Contact Base Material: Phosphor Bronze
-
Termination Style: Crimp
-
Packaging: Bulk / Strip (Option dependent)
-
Typical Application: Power Supplies, Industrial Controls, Home Appliances
Product Detail
Product Tags
Order TE Connectivity 1376348-2. A high-quality Economy Power (EP) receptacle contact for 20-24 AWG wires. Features tin plating and phosphorus bronze material for reliable power and signal transmission.
Data Overview
| Attribute Category | Technical Specification |
| Brand | TE Connectivity |
| Part Number | 1376348-2 |
| Product Family | Economy Power (EP) |
| Contact Gender | Receptacle (Socket) |
| Wire Range (AWG) | 20, 22, 24 AWG |
| Wire Range (mm²) | 0.20 mm² – 0.60 mm² |
| Contact Base Material | Phosphor Bronze |
| Contact Mating Area Plating | Tin (Sn) |
| Contact Termination Area Plating | Tin (Sn) |
| Termination Method | Crimp |
| Insulation Diameter Range | 1.10 mm – 1.90 mm |
| Operating Temp Range | -25°C to +105°C |
Product Details
| Engineering Features & Specs | Technical & Processing Advantages | Strategic Business Benefits |
| High-Conductivity Phosphor Bronze | Provides superior fatigue resistance and better electrical conductivity compared to standard brass. | Extended Product Lifespan: Ensures stable signal and power transmission over thousands of hours, reducing the risk of terminal oxidation and equipment failure. |
| Optimized 20-24 AWG Crimp Barrel | Precision-engineered barrel allows for a gas-tight, uniform crimp across a versatile wire range. | Superior Pull-out Strength: Guarantees that wires remain securely attached even in high-vibration industrial environments, lowering rework rates during harness assembly. |
| Protective Tin (Sn) Plating | Offers an excellent balance of cost and corrosion resistance for non-harsh environments. | Cost-Effective Reliability: Provides high-grade electrical performance at a mid-range price point, optimizing the overall Bill of Materials (BOM) for competitive markets. |
| Integrated Locking Lance | Features a robust locking tab that ensures the contact is firmly seated within the housing. | Zero Terminal Back-out: Prevents accidental terminal disconnection during field use, enhancing the safety and reputation of the final end-product. |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.
Q1: What is the recommended wire insulation diameter for 1376348-2?
A: To ensure a perfect seal (if applicable) and a secure crimp, the insulation diameter should be between 1.10 mm and 1.90 mm. Using wires outside this range may compromise the mechanical strength of the crimp.
Q2: Can I use 1376348-2 with any Economy Power (EP) housing?
A: This contact is specifically designed for the TE Economy Power (EP) Series housings. To guarantee full compatibility and locking performance, please verify that your housing part number is part of the EP 2.5mm or 3.96mm family (depending on the specific pitch variant).
Q3: Is a specific crimp tool required for these contacts?
A: For high-volume production, a dedicated TE Applicator for automated machines is recommended. For prototyping or low-volume repair, a high-quality manual crimp tool compatible with open-barrel EP terminals should be used to ensure the crimp height meets TE specifications.
