JST

  • JST SMR-10V-B SM Series 2.5mm 10 Position Receptacle Housing

    JST SMR-10V-B SM Series 2.5mm 10 Position Receptacle Housing

    • Product Identity: JST Sales America SM Series, Part Number SMR-10V-B.

    • Configuration: 10-position, single-row (1×10 layout) receptacle housing with a 2.50 mm (0.098 in) pitch designed for male pin contacts.

    • Mounting & Termination: Wire-to-wire connection system utilizing crimp termination compatibility for wire gauges from 28 AWG to 22 AWG.

    • Material & Specs: Molded in black Polyamide (PA) with a UL 94V-0 flammability rating; rated for 250 VAC/DC, 3A, and operating temperatures from -25°C to +85°C.

  • JST SMR-02V-B SM Series 2.5mm 2 Position Receptacle Housing

    JST SMR-02V-B SM Series 2.5mm 2 Position Receptacle Housing

    • Product Identity: JST Sales America Inc. SM Series, Part Number SMR-02V-B (Base Model SMR-02V).

    • Configuration: 2-position, single-row (1×2 layout) receptacle housing with a 2.50 mm (0.098 in) pitch for male pin contacts.

    • Mounting & Retention: Free-hanging (in-line) wire-to-wire mounting style featuring a positive arm latch lock mechanism for secure mating.

    • Material & Specs: Molded in black Polyamide 6 (PA6 Nylon 6); designed for crimp pin termination with operating temperatures ranging from -25°C to +85°C.

  • JST 06R-JWPF-VSLE-D 6 Pin 2.00mm Waterproof Receptacle Housing | Suqin

    JST 06R-JWPF-VSLE-D 6 Pin 2.00mm Waterproof Receptacle Housing | Suqin

    • Part Number & Series: JST | Mfr Part Number: 06R-JWPF-VSLE-D | Part Aliases: (G)06R-JWPF-VSLE-D | Series: JWPF Waterproof Series

    • Product Type & Circuit Layout: Wire-to-Wire Receptacle Housing (Female Socket Cavity); 6-position (6POS / 2×3 grid) 2.00mm (0.079 in) pitch layout

    • Mounting & Environmental Sealing: Cable Mount / Free Hanging (In-Line); JIS C 0920 Grade Level 7 ingress protection with pre-assembled rubber seal

    • Material & Physical Characteristics: Natural (White) PBT housing body; integrated blue rubber wire seal; external latch lock mechanism

    • Packaging & Operating Range: Original bulk package (1,000 pcs/bag); operating temperature range -55°C to +85°C; RoHS compliant

  • 02T-JWPF-VSLE-S JST JWPF 2-Pin 2.00mm Waterproof Plug Housing | Suqin

    02T-JWPF-VSLE-S JST JWPF 2-Pin 2.00mm Waterproof Plug Housing | Suqin

    • Part Number & Series: JST 02T-JWPF-VSLE-S (Base: 02T-JWPF) | JWPF Series

    • Type & Layout: 2-Position, 1-Row, 2.00 mm (0.079 in) Pitch, Male Plug Housing (Free Hanging / In-Line)

    • Ingress Protection: JIS C 0920 Grade 7 (IPX7 Equivalent) waterproof rating with integrated rubber seals

    • Material & Temp: Natural PBT housing, -55 deg C to +85 deg C operating range, inner latch holder locking

    • Termination & Mating: Crimp termination; requires JWPF series male pin contacts (sold separately)

  • PHNR-03-H JST PHN 2.0mm Pitch 3-Position Gray Housing | Suqin

    PHNR-03-H JST PHN 2.0mm Pitch 3-Position Gray Housing | Suqin

    • Manufacturer & Series: Part number PHNR-03-H, manufactured by JST (J.S.T. Mfg. Co., Ltd.) belonging to the PH and PHN product family (Type H variant).

    • Configuration & Pitch: Single-row, 3-position receptacle housing featuring a compact 2.00 mm (0.079 in) pitch centerline.

    • Mounting & Termination: Cable mount / free-hanging configuration designed for crimp socket (female) contact insertion accepting wire sizes from 30 AWG to 24 AWG.

    • Material & Color: Molded from gray Polyamide 66 (66NYLON / Nylon 6/6), operating reliably within a temperature range of -25 deg C to +85 deg C.

    • Electrical & Application: Rated for up to 1 A current capacity, engineered for high-density wire-to-wire and wire-to-board signal connections in industrial and commercial equipment.

  • 03P-SJN JST SJN 2.0mm Pitch 3-Position Board-In Housing | Suqin

    03P-SJN JST SJN 2.0mm Pitch 3-Position Board-In Housing | Suqin

    • Manufacturer & Series: Part number 03P-SJN, manufactured by JST (J.S.T. Mfg. Co., Ltd.) as part of the SJN series 2.00mm pitch board-in connector family.

    • Structural Configuration: 3-position, 1-row inline free-hanging board-in housing with a 2.00 mm (0.079 in) pitch centerline.

    • Mounting & Connection Style: Designed for right-angle board-in crimp contact pin insertion, facilitating direct soldering to printed circuit boards without mating headers.

    • Material & Flammability Grade: Molded from natural polyamide 66 (PA66 / Nylon 6/6) meeting UL 94V-0 flammability standards, rated for temperatures from -25 deg C to +85 deg C.

    • Retention & Assembly Efficiency: Features integrated push-pull retention slots for male crimp pins, enabling low-profile, high-density wire-to-board interconnections.

  • JST SM Series SMP-10V-BC 10-Position Plug Housing Black | Suqin

    JST SM Series SMP-10V-BC 10-Position Plug Housing Black | Suqin

    • Manufacturer & Series: JST (JST Commercial) SM series 10-position single-row wire housing, classified as a plug gender component under part number SMP-10V-BC.

    • Locking Mechanism: Equipped with an integrated mechanical arm lock assembly built into the black housing shell for secure locking retention.

    • Mounting & Termination: Designed for cable mount / free-hanging installation utilizing a crimp termination style for wire-to-wire circuit applications.

    • Electrical Capacity: Engineered to support a maximum continuous current rating of 3 A and an operational voltage architecture of 250 VAC / 250 VDC.

    • Wire Range & Pitch: Features a 2.5 mm (0.098 in) centerline pitch, compatible with conductor wire gauges spanning from 28 AWG to 22 AWG.

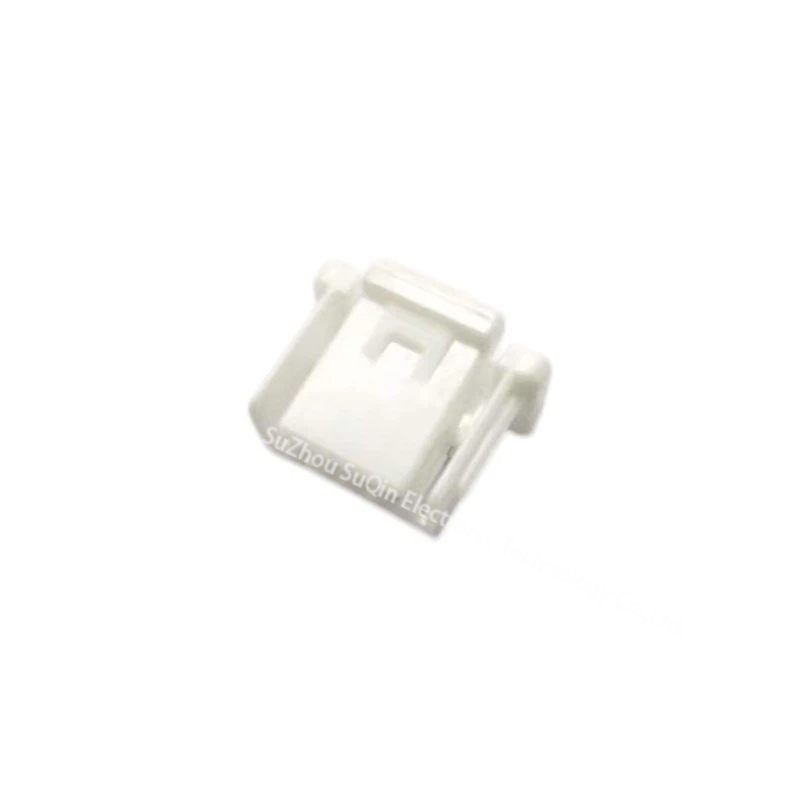

  • JST NSHR-06V-S | 6-Position 1.00mm Pitch NSH Series Receptacle Housing

    JST NSHR-06V-S | 6-Position 1.00mm Pitch NSH Series Receptacle Housing

    • Manufacturer: JST Sales America Inc.

    • Series: NSH Series

    • Part Number: NSHR-06V-S

    • Base Product Number: NSHR-06V

    • Number of Positions: 6 Positions

    • Number of Rows: 1 Row

    • Pitch: 0.039 in (1.00mm)

    • Connector Type: Receptacle Housing

    • Contact Type: Female Socket (Contacts Sold Separately)

    • Fastening Type: Secure Latch Lock

    • Mounting Type: Free Hanging (In-Line) / Wire-to-Board

    • Termination Style: Crimp

    • Insulation Material: Polybutylene Terephthalate (PBT)

    • Color: Natural (White)

    • Operating Temperature Range: -25°C to 85°C

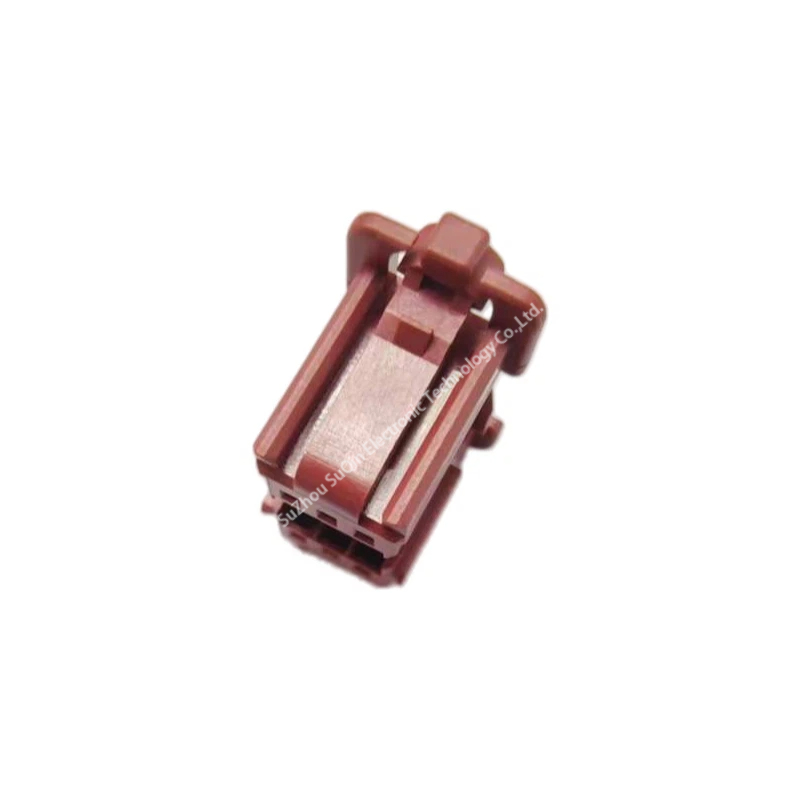

  • JST ZNDP-06V-C-R | 6-Pin 1.5mm Pitch ZND Series Housing Plug Red

    JST ZNDP-06V-C-R | 6-Pin 1.5mm Pitch ZND Series Housing Plug Red

    • Manufacturer: JST Commercial (JST)

    • Series: ZND Series

    • Part Number: ZNDP-06V-C-R

    • Number of Positions: 6 Positions

    • Number of Rows: 1 Row

    • Pitch: 1.5 mm (0.059 in)

    • Connector Type: Plug Housing

    • Application: Wire-to-Board

    • Keying Type: Controlled Key C (Mechanical Coding)

    • Housing Color: Red

    • Mounting Style: Cable Mount / Free Hanging

    • Termination Style: Crimp

    • Contact Gender: Accepts Female Socket Contacts (Sold Separately)

    • Wire Gauge Range: 28 AWG to 24 AWG

    • Current Rating: 2 A

    • Voltage Rating: 100 VAC / VDC

123456 Next > >> Page 1 / 13
