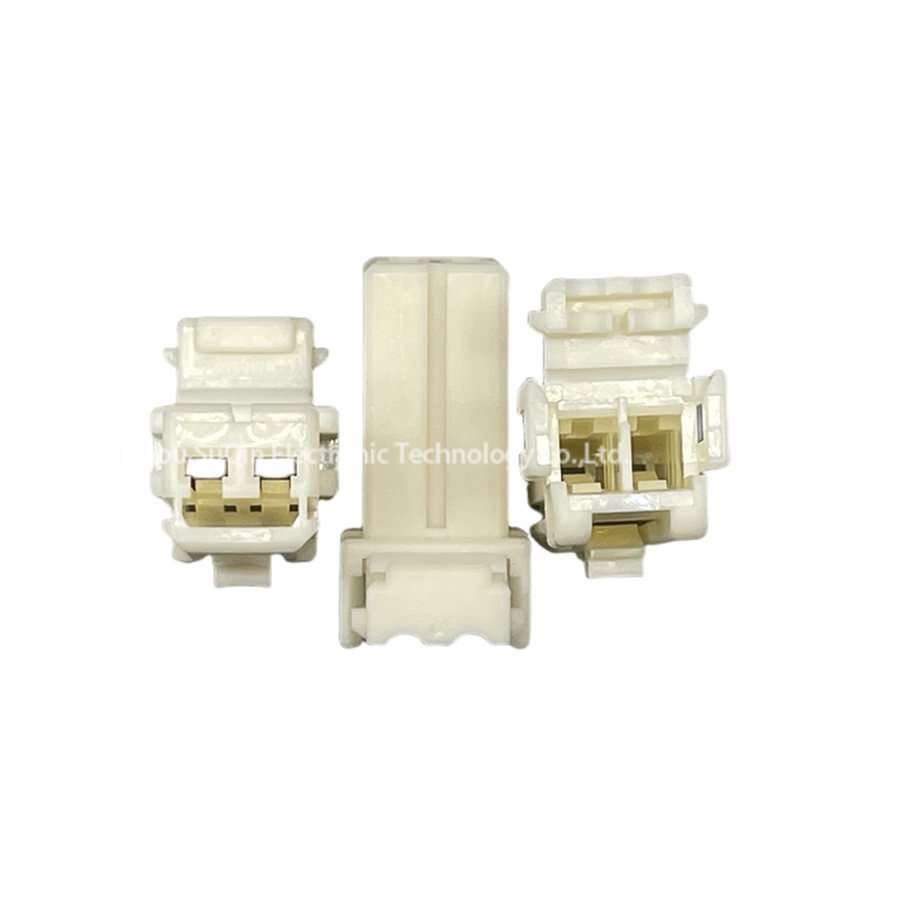

368538-1 TE Connectivity Crimping terminal rubber 2-Pin Male Plug Housing

Short Description:

  • Manufacturer & Series: Part number 368538-1, manufactured by TE Connectivity / AMP as part of the .070 MULTILOCK product family.

  • Configuration & Pitch: Single-row, 2-position male plug housing featuring a 3.50 mm (0.138 in) pitch centerline layout.

  • Mounting & Termination: Cable mount / free-hanging configuration designed for crimp contact termination accepting wire sizes from 22 AWG to 16 AWG.

  • Material & Physical Dimensions: Molded from white Polybutylene Terephthalate (PBT) resin, measuring 10.4 mm in length, 15.15 mm in width, and 21.0 mm in height.

  • Application Scope: Engineered for automotive wire-to-wire harness applications, offering secure contact retention and low-profile mating alignment.


Product Detail

Product Tags

TE Connectivity 368538-1 .070 MULTILOCK series 2-position single-row 3.50mm pitch automotive plug housing. Constructed from white PBT material, supporting 22 AWG to 16 AWG crimp contacts for cable-mount wire-to-wire harnesses. Available via Suzhou Suqin.

Data Overview

Technical ParameterSpecification Value
Mfr. Part Number368538-1
ManufacturerTE Connectivity / AMP
Series / Tradename.070 MULTILOCK (MULTILOCK)
Product CategoryAutomotive Connectors / Housings
Connector TypePlug Housing (Male)
Number of Positions2
Number of Rows1
Pitch (Centerline)3.50 mm (0.138 in)
Mounting StyleCable Mount / Free Hanging
Termination StyleCrimp
Contact Type / GenderPin / Male (Contacts Sold Separately)
Wire Gauge Range22 AWG to 16 AWG
Housing MaterialPolybutylene Terephthalate (PBT)
Housing ColorWhite
Dimensions (L x W x H)10.40 mm x 15.15 mm x 21.00 mm
Part StatusActive
PackagingBulk
ApplicationAutomotive Wire-to-Wire Electrical Systems

Product Details

3.50mm Pitch 1-Row 2-Circuit GridPolybutylene Terephthalate (PBT) HousingFree-Hanging Wire-to-Wire Crimp System
Optimized Automotive Signal Routing

Features a 3.50 mm (0.138 in) pitch single-row 2-position geometry, providing compact cable arrangement for vehicle electronic control units.
Robust Thermal & Chemical Insulation

Molded from white Polybutylene Terephthalate (PBT) resin, offering dimensional stability and structural integrity under automotive thermal conditions.
Secure Free-Hanging Harness Termination

Accommodates crimp pin contacts accepting 22 AWG to 16 AWG conductors, delivering reliable locking alignment in inline wire-to-wire harnesses.

Our advantage

● Brand supply diversification,
Convenient one-stop shopping

● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.

● Complete information, fast delivery
Reduce intermediate links

● Good after-sales service
Quick response, professional reply

● Original genuine guarantee
Support professional consultation

● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

Q1: What is the pitch and series configuration of the TE 368538-1 connector housing?

The 368538-1 belongs to the TE Connectivity .070 MULTILOCK series, featuring a 3.50 mm (0.138 in) pitch centerline in a 2-position single-row male plug configuration.

Q2: What wire gauge range and housing material are used for 368538-1?

The housing is constructed from white Polybutylene Terephthalate (PBT) thermoplastic material. It accepts crimp pin contacts designed for wire sizes ranging from 22 AWG to 16 AWG.

Q3: Are contacts included with the 368538-1 plug housing?

No, the 368538-1 is a connector housing only. Compatible crimp male tab/pin contacts must be selected and purchased separately based on wire gauge and plating requirements.
