HIROSE

  • DF63-2S-3.96C Hirose EnerBee DF63 2P Socket Housing | Direct Sourcing – SuQin

    DF63-2S-3.96C Hirose EnerBee DF63 2P Socket Housing | Direct Sourcing – SuQin

    • Product Identity: Hirose Electric EnerBee™ DF63 Series, Part Number DF63-2S-3.96C (2-Position Socket Housing).

    • Technical Specs: 2 Positions, 1 Row, 3.96 mm [.156 in] Pitch, Free Hanging In-Line Mount, Swing-Lock Mechanism.

    • Ratings & Environment: -55°C to +105°C | 600V AC (UL) / 300V (TÜV) Voltage | Up to 14A Current Capacity (16AWG).

    • Material & Structure: Glass-Filled Polybutylene Terephthalate (PBT) | Black | Positive Latch Lock with Terminal Retention.

    • B2B Sourcing: Direct RFQ processing, standard 100 pcs bag packaging, volume discount tiers, Certificate of Compliance (COC) available.

  • ZE05-4S-HU/R Hirose ZE05 4-Pin 2mm Pitch Automotive Plug Housing | Suqin

    ZE05-4S-HU/R Hirose ZE05 4-Pin 2mm Pitch Automotive Plug Housing | Suqin

    • Model & Specs: Hirose Electric ZE05-4S-HU/R (Part Aliases: 752-2201-0-00) | 4-position, single-row, 2.00 mm (0.079 in) pitch automotive plug connector housing (ZE05 Series).

    • Electrical & Ratings: 250 VAC/VDC rated operating voltage, 5 A rated current, 100 MOhm minimum insulation resistance; compatible with ZE05 series tin-plated crimp contacts.

    • Material & Structure: Heat-resistant black resin housing with integrated pre-set secondary retainer; operating temperature range of -40 deg C to +125 deg C; unit weight 2.132 g.

    • Mounting & Engagement: Cable mount / free-hanging installation; positive mechanical lock prevents partial mating and provides vibration resistance for automotive electronics.

  • DF60A-5S-10.16C Hirose EnerBee 5-Position Power Socket Housing | Suqin

    DF60A-5S-10.16C Hirose EnerBee 5-Position Power Socket Housing | Suqin

    • Manufacturer & Series: Part number DF60A-5S-10.16C (Alias: 680-3076-0-00), manufactured by Hirose Electric as part of the EnerBee DF60 series power connectors.

    • Structural Configuration: 5-position, single-row cable mount receptacle housing featuring a 10.16 mm (0.400 in) centerline pitch.

    • Electrical & Thermal Limits: Engineered for high-current power transmission up to 55 A and rated at 1 kV voltage, operating across a temperature range of -55 deg C to +105 deg C with 1 GOhms minimum insulation resistance.

    • Wire Compatibility: Accommodates crimp socket contacts for wire gauge sizes ranging from 12 AWG to 8 AWG.

    • Material & Mechanical Design: Constructed from black polybutylene terephthalate (PBT) housing, equipped with a positive latching system to ensure secure retention under vibrational loads.

  • Hirose DF62W-9S-2.2C 9-Pin Slim InLine Waterproof Socket Connector | Suqin

    Hirose DF62W-9S-2.2C 9-Pin Slim InLine Waterproof Socket Connector | Suqin

    • Brand Manufacturer: Hirose Electric (HRS)

    • MPN (Part Number): DF62W-9S-2.2C

    • Part Number Aliases: 544-1010-5-00

    • Product Series: DF62W Series

    • Connector Type: Headers & Wire Housings / Socket Housing

    • Total Position Count: 9 Position

    • Pitch Size: 2.2 mm (0.087 in)

    • Row Configuration: 3 Row (3 x 3 Grid Layout)

    • Row Spacing: 2.2 mm (0.087 in)

    • Mounting Configuration: Cable Mount / Free Hanging (In-Line Wire-to-Wire)

    • Termination Method: Crimp Terminal Integration

    • Contact/Housing Gender: Socket (Female)

    • Environmental Protection: Water-resistant / Waterproof Slim Design

    • Operating Temperature Range: -40°C to +105°C

    • Voltage Rating: 250 V AC/DC

    • Standard Packaging: Bulk (100 Pieces per Bag)

  • Hirose DF62W-9EP-2.2C 9-Pin Waterproof Plug | 2.2mm Pitch Slim Male Housing

    Hirose DF62W-9EP-2.2C 9-Pin Waterproof Plug | 2.2mm Pitch Slim Male Housing

    • Manufacturer: Hirose Electric Co Ltd

    • Part Number: DF62W-9EP-2.2C

    • Series: DF62W (Slim-Line Waterproof)

    • Positions: 9 Positions (3 Rows)

    • Connector Type: Plug Housing for Male Pins

    • Pitch: 2.20 mm

    • Protection Rating: Water Resistant (IP67 Equivalent)

    • Locking Style: Positive Latch Holder

    • Operating Temp: -35°C to +105°C

    • Material: High-performance PBT (Black)

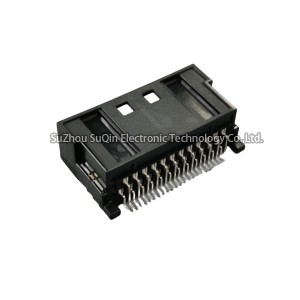

  • ZH05-24DS-2H(A) Hirose Automotive Connectors Receptacle 24pos

    ZH05-24DS-2H(A) Hirose Automotive Connectors Receptacle 24pos

    Connector Type:Receptacle
    Connector Orientation:Right angle
    Contact Plating:Tin
    Housing Color:Black
    Number of Positions:24

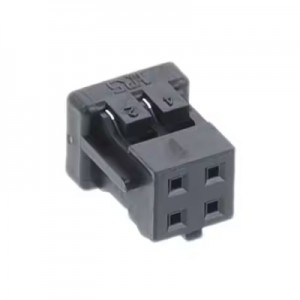

  • DF11-4DS-2C 4 Rectangular Connectors

    DF11-4DS-2C 4 Rectangular Connectors

    Manufacturer:Hirose Electric Co Ltd
    Manufacturer Product Number:DF11-4DS-2C
    Description:CONN RCPT HSG 4POS 2.00MM

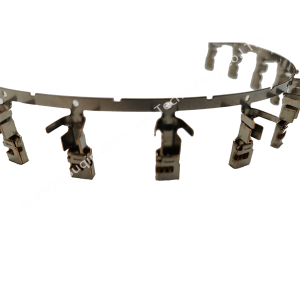

  • DF60-8SCFA:  Terminal Automotive Connector  FOR HIROSE

    DF60-8SCFA: Terminal Automotive Connector FOR HIROSE

    Category: Connector
    Manufacturer: HIROSE
    Termination: Crimp
    Availability:7000in Stock
    Min. Order Qty:700
    Standard Lead Time When No Stock:3-5Working Days

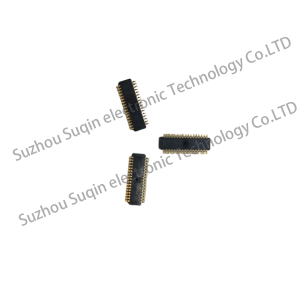

  • DF40C-30DP-0.4V:BLACK Automotive Connector  20Gbps HIROSE

    DF40C-30DP-0.4V:BLACK Automotive Connector 20Gbps HIROSE

    Category: Connector
    Manufacturer: HIROSE
    Termination: Crimp
    Availability:1200in Stock
    Min. Order Qty:120
    Standard Lead Time When No Stock:3-5Working Days

12345 Next > >> Page 1 / 5
