Hirose DF62W-9S-2.2C 9-Pin Slim InLine Waterproof Socket Connector | Suqin
Short Description:
-
Brand Manufacturer: Hirose Electric (HRS)
-
MPN (Part Number): DF62W-9S-2.2C
-
Part Number Aliases: 544-1010-5-00
-
Product Series: DF62W Series
-
Connector Type: Headers & Wire Housings / Socket Housing
-
Total Position Count: 9 Position
-
Pitch Size: 2.2 mm (0.087 in)
-

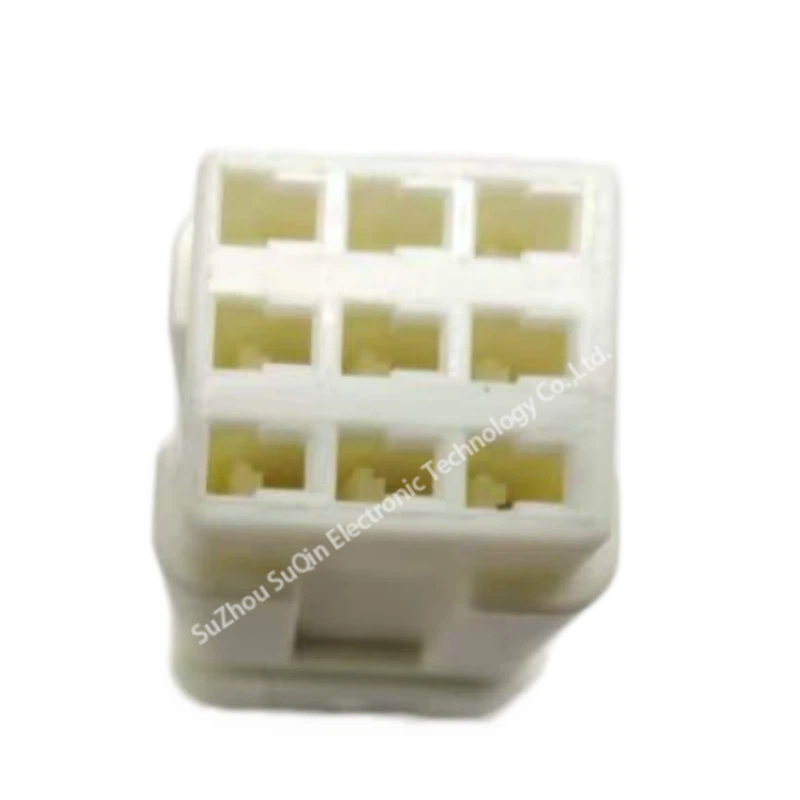

Row Configuration: 3 Row (3 x 3 Grid Layout)
-
Row Spacing: 2.2 mm (0.087 in)
-

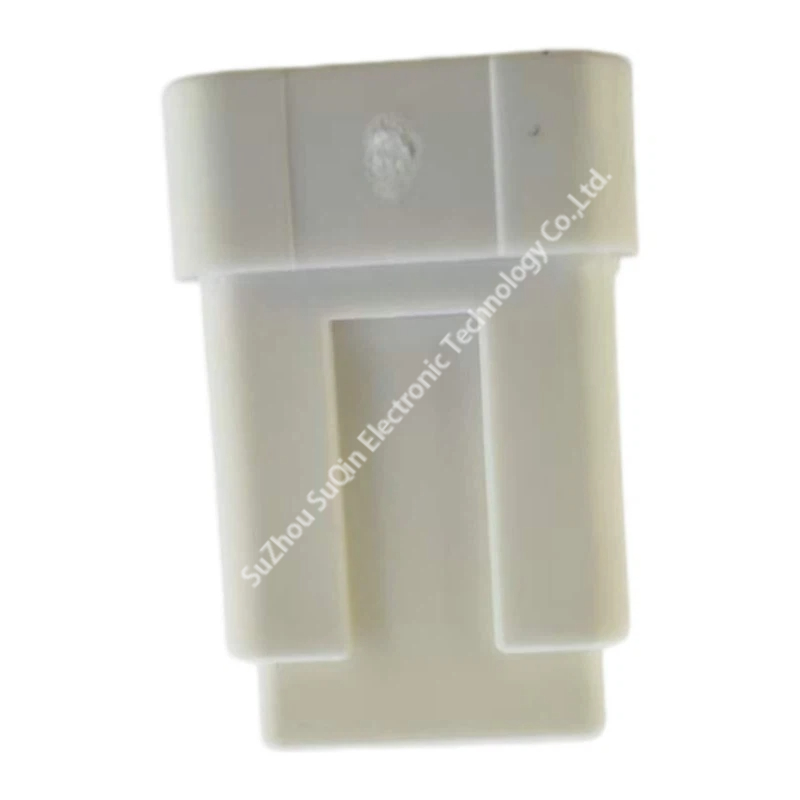

Mounting Configuration: Cable Mount / Free Hanging (In-Line Wire-to-Wire)
-
Termination Method: Crimp Terminal Integration
-
Contact/Housing Gender: Socket (Female)
-
Environmental Protection: Water-resistant / Waterproof Slim Design
-
Operating Temperature Range: -40°C to +105°C
-
Voltage Rating: 250 V AC/DC
-

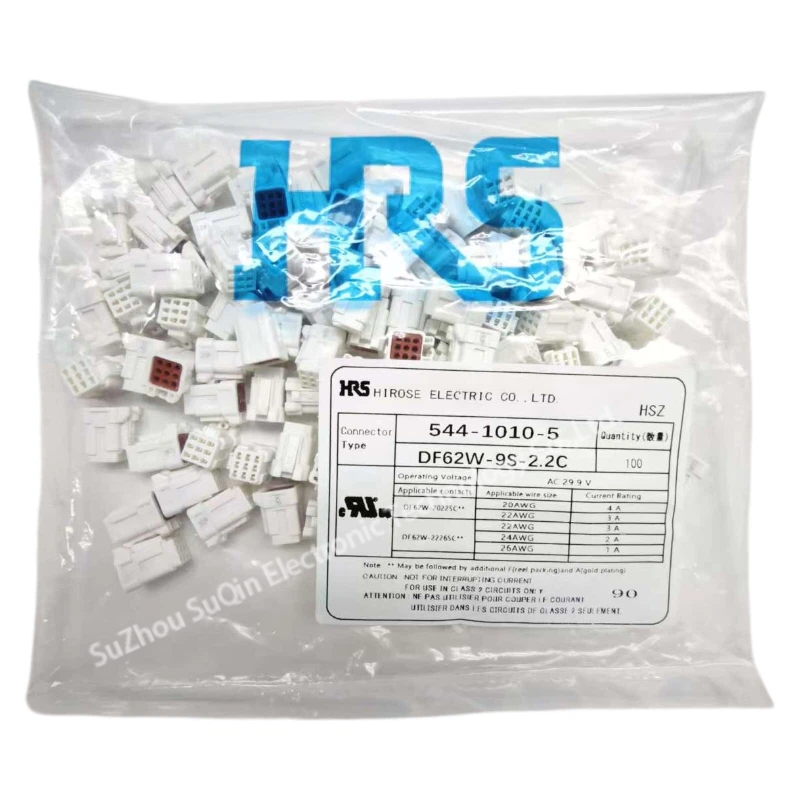

Standard Packaging: Bulk (100 Pieces per Bag)
Product Detail
Product Tags
Source genuine Hirose Electric DF62W-9S-2.2C 9-position slim inline socket housing at Suqin. Features a space-saving 2.2mm pitch, 3-row layout, and reliable waterproof silicone seal for harsh environments.
Data Overview
| Technical Parametric Attributes | Spec Detail Values |
| Manufacturer | Hirose Electric (HRS) |
| Product Part Number | DF62W-9S-2.2C |
| Alias Part Number | 544-1010-5-00 |
| Product Type | Headers & Wire Housings |
| Connector Gender | Socket (Female Housing) |
| Number of Positions | 9 Position |
| Number of Rows | 3 Row |
| Pitch | 2.2 mm |
| Row Spacing | 2.2 mm |
| Mounting Style | Cable Mount / Free Hanging |
| Termination Style | Crimp |
| Contact Type | Socket (Female Crimp Contact) |
| Voltage Rating | 250 V |
| Current Rating Matrix | 4A (20 AWG) / 3A (22-24 AWG) / 1A (26 AWG) |
| Minimum Operating Temp | -40°C |
| Maximum Operating Temp | +105°C |
| Housing Color | White / Off-white |
| Seal Material | Brown Silicone / Rubber Mat Seal |
| Packaging Unit | 100 Pcs / Bag (Bulk Pack) |
| RoHS Status | Compliant |
Product Details
| Core Specifications | Engineering Advantages | Operational Benefits |
| Ultra-Compact 2.2mm Pitch 3-Row Grid | Minimizes the overall cross-sectional profile, packing a 9-pin high-density configuration into a streamlined, slim housing footprint. | Perfect for narrow routing conduits, robotic arms, and tight internal spaces where traditional bulkier automotive connectors cannot fit. |

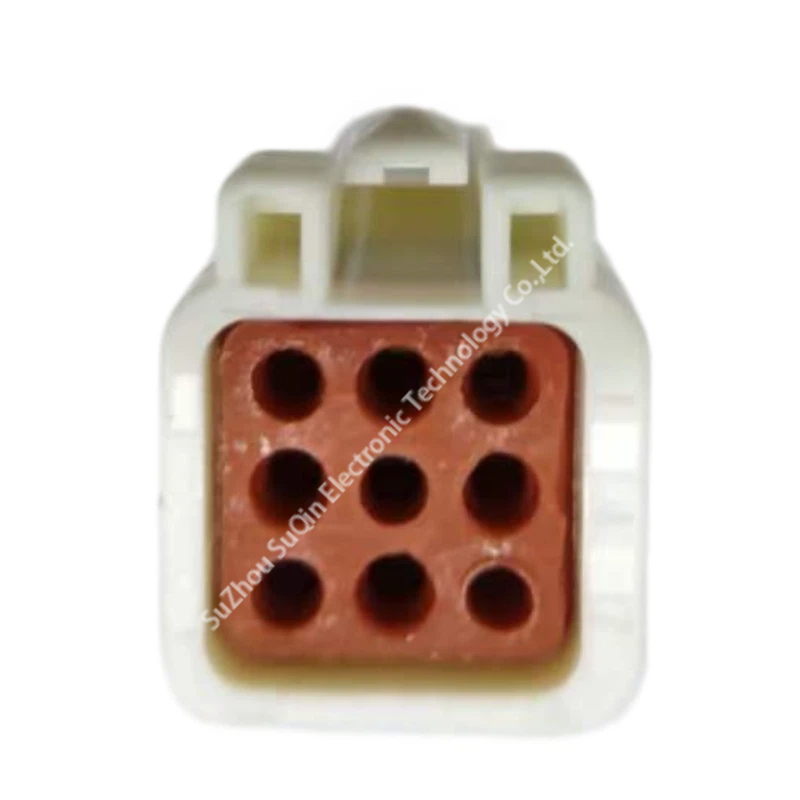

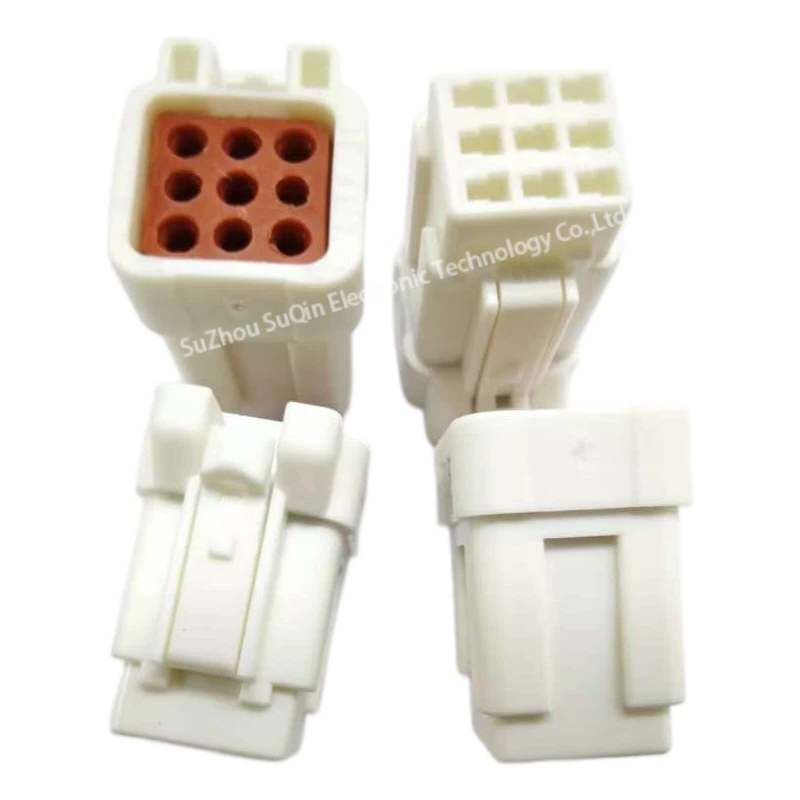

| Integrated Multi-Hole Silicone Rubber Seal | Features a built-in internal brown silicone rubber mat seal that compresses tightly around the wire entry interfaces. | Provides reliable dust and water ingress protection, eliminating intermittent signal drops and preventing wire-to-wire short circuits in high-humidity or outdoor environments. |
| Tactile Positive Locking Latch System | Molded with an external locking arm that delivers an audible and physical click confirmation when fully mated with the plug. | Guarantees connection security under severe mechanical vibrations or cable pulling, reducing field maintenance and accidental unmating risks. |
| Free-Hanging In-Line Crimp Configuration | Utilizes a flexible wire-to-wire cable mount setup supporting reliable crimp termination across multiple wire gauges. | Simplifies complex harness routing layouts, facilitates clean on-site wiring modifications, and lowers factory manual labor assembly costs. |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.
Q1: Does the DF62W-9S-2.2C housing come pre-loaded with crimp socket contacts?
No, the DF62W-9S-2.2C designates the empty plastic socket housing with its pre-installed internal waterproof silicone seal. The female crimp contacts (such as DF62W-2022SC or DF62W-2226SC) must be purchased separately based on the specific wire gauge size required for your harness assembly.
Q2: What are the current carrying capacities and wire sizes supported by this 9-pin waterproof housing?
The current rating depends entirely on the wire gauge (AWG) used during crimping. According to the factory bulk pack specifications, it supports a maximum current of 4A when paired with 20 AWG wire, 3A with 22 AWG or 24 AWG wire, and decreases to 1A when using 26 AWG wire.
Q3: What is the main difference between the standard DF62 series and the DF62W series?
The “W” in the DF62W series signifies environmental waterproofing. While both series share a slim 2.2mm pitch grid profile, the DF62W-9S-2.2C features an integrated internal silicone rubber seal and modified housing contours to prevent dust and water ingress, making it highly suitable for outdoor, automotive, and harsh industrial wire-to-wire applications.
