In the rapidly evolving world of connected vehicles, Advanced Driver Assistance Systems (ADAS), and 5G telematics, high-frequency Radio Frequency (RF) signaling has become the backbone of modern automotive architecture. For procurement managers and wire harness manufacturers, keeping assembly lines smooth while ensuring zero-defect quality is an ongoing challenge.
When dealing with multiple coaxial lines in a tight chassis space, a single assembly mistake can lead to critical signal failure or costly component damage. This is where understanding FAKRA connector mechanical keying and color-coding becomes a vital skill for supply chain and engineering teams alike.
1. The Fundamentals of FAKRA Connector Standardization
FAKRA (Fachkreis Automobil, a German standard adopted globally) connectors are specialized subminiature B (SMB) coaxial interfaces designed to perform reliably at frequencies up to 3 GHz or 6 GHz. Governed by international automotive standards such as DIN 72594-1 and USCAR-18, they feature a robust axial locking system to withstand harsh vehicle environments.
To prevent assembly errors during high-speed production, FAKRA utilizes a dual-safeguard system:
- Visual Identification (Color-Coding): Each connector application is assigned a highly distinct outer plastic housing color.
- Mechanical Keying (Physical Exclusion): The internal mating face of the plastic shroud features a unique layout of molded ribs (protrusions) and grooves.
Only a male plug and a female receptacle with the exact same alphabetical coding can physically interlock. This prevents accidental cross-mating of different signal lines.
2. FAKRA Coding Matrix: Mapping Colors to Automotive Functions
To optimize your bill of materials (BOM) and verify incoming factory stock, procurement teams should familiarize themselves with the standardized FAKRA coding matrix:
- Code A (Black) & Code B (White / Cream): Typically deployed for AM/FM radio antennas and digital audio broadcasting networks.
- Code C (Blue) & Code D (Bordeaux Violet): The industry standard for Global Positioning Systems (GPS), cellular telematics (telematics control units), and satellite navigation routing.
- Code E (Green) & Code F (Brown): Commonly reserved for TV tuner signals and Remote Keyless Entry (RKE) infrastructure.
- Code G (Gray) & Code H (Violet): Utilized in auxiliary climate heating controls and specific wireless remote commands.
- Code I (Beige) & Code K (Curry Yellow): Frequently chosen for internal cabin wireless links, including Bluetooth, WLAN, and high-speed infotainment hubs.
Spotlight on Code Z (Water Blue): The Universal Lifesaver
While Codes A through K are restrictive, Code Z (Water Blue) is designated as a neutral, universal coding style. A Code Z plastic plug housing features an open mechanical configuration that bypasses the restrictive rib-and-groove barriers of all other color codes. It can physically mate with any standard alphabetical FAKRA interface.
3. The Risks of Mismating and Blind-Plugging in Harness Assembly
For manufacturing buyers, sourcing cheap or unverified FAKRA housings carries severe financial and operational risks:
Physical Terminal Deformation
On a busy assembly line, operators often perform “blind plugging” in hard-to-reach vehicle chassis areas. If a worker attempts to force mismatched mechanical codes together, the excessive pressure can crack the plastic shroud or bend the internal subminiature center contacts.
Impedance Mismatch & Packet Loss
Even if a mismatched connector appears to be forced together, a microscopic gap or misalignment destroys the precise 50 Ohm impedance path. This disruption spikes the Return Loss and causes massive RF signal attenuation, resulting in data packet drops for safety-critical systems like rear-view ADAS cameras.
Vibration-Induced Field Disconnections
Premium automotive clips and housings are engineered with strict tolerances. Substandard housings lack a precise lock-click feel. Over thousands of miles of driving on rough roads, constant chassis vibration will loosen loose-fitting housings, creating intermittent open circuits that lead to vehicle recalls.
4. Design & Sourcing Strategies: How to Optimize Your FAKRA Inventory
Procurement managers can implement two main strategies to cut inventory holding costs and eliminate assembly-line errors:
Transition to Multi-Way Configurations
Instead of purchasing multiple single-cavity (1-Way) housings for complex setups like surround-view camera arrays, look for integrated 2-Way, 4-Way, or multi-port inline FAKRA configurations. These modular designs lock multiple coaxial lines into a single block, making cross-mating physically impossible.
Standardize on Code Z to Slashing SKU Counts
During the prototype R&D phase, after-market modifications, or inside neutral test benches, buying single-color housings for every separate link can clog your warehouse with redundant SKUs.

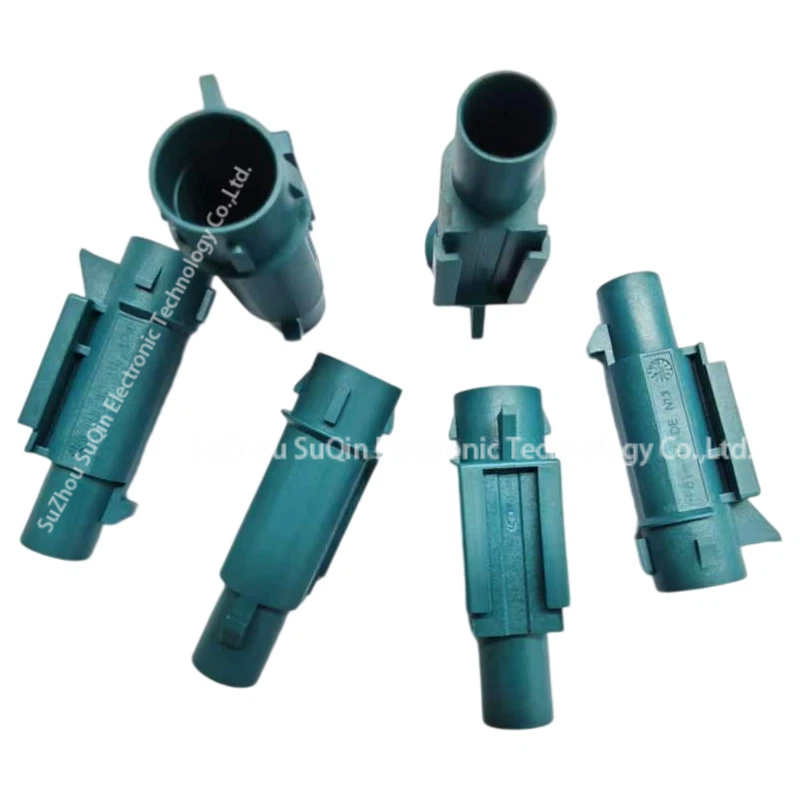

By standardizing on universal water-blue components—such as the high-performance Rosenberger 59Z176-C01-Z plastic housing—you can stock a single part number that fits all male or female terminals on your factory floor. This strategy dramatically reduces excess inventory, improves cash flow, and simplifies bulk purchasing.
5. Conclusion & Reliable Sourcing via Suzhou Suqin
Selecting the correct FAKRA coding is not just a layout design requirement—it is a critical supply chain factor that dictates line assembly yield, testing times, and field reliability.
As a dedicated distributor of tier-one industrial and automotive components, Suzhou Suqin Electronic Technology provides a full portfolio of authentic FAKRA plastic housings, automotive mounting clips, and crimp terminals.
Whether you need to secure high-volume production for standard telematics or streamline your bill of materials with universal solutions like the Rosenberger 59Z176-C01-Z, our engineering and sales teams ensure verified traceability, premium anti-vibration performance, and predictable international lead times.
Contact our technical procurement team today to request data sheets or a bulk quotation.
