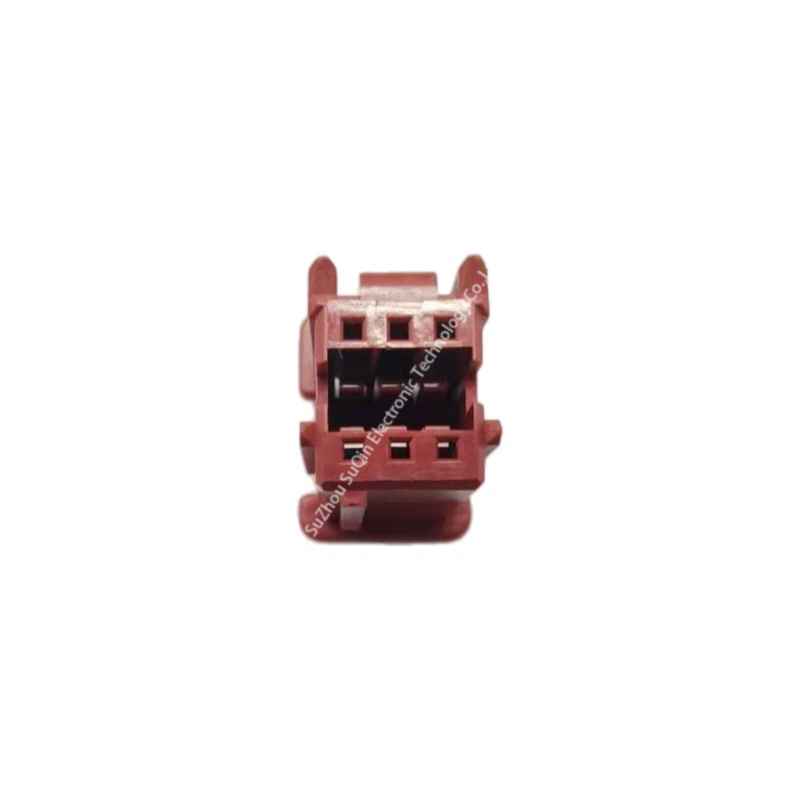

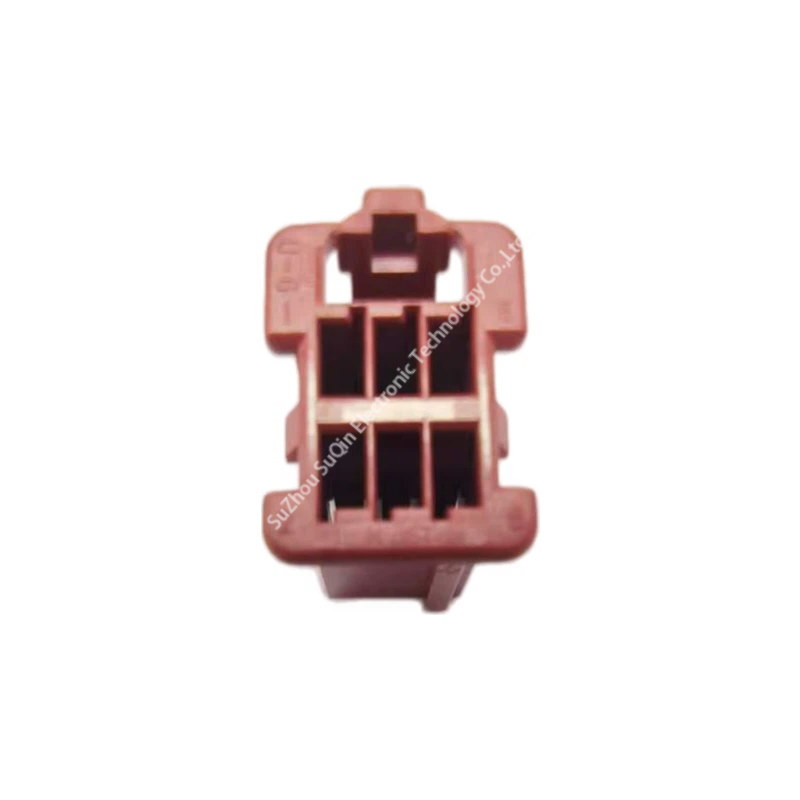

JST ZNDP-06V-C-R | 6-Pin 1.5mm Pitch ZND Series Housing Plug Red
Short Description:
-
Manufacturer: JST Commercial (JST)
-
Series: ZND Series
-
Part Number: ZNDP-06V-C-R
-
Number of Positions: 6 Positions
-
Number of Rows: 1 Row
-
Pitch: 1.5 mm (0.059 in)
-
Connector Type: Plug Housing
-
Application: Wire-to-Board
-
Keying Type: Controlled Key C (Mechanical Coding)
-
Housing Color: Red
-
Mounting Style: Cable Mount / Free Hanging
-
Termination Style: Crimp
-
Contact Gender: Accepts Female Socket Contacts (Sold Separately)
-
Wire Gauge Range: 28 AWG to 24 AWG
-
Current Rating: 2 A
-
Voltage Rating: 100 VAC / VDC
Product Detail
Product Tags
Buy genuine JST ZNDP-06V-C-R 6-position wire-to-board plug housings at Suzhou Suqin. Featuring 1.5mm pitch, unique Controlled Key-C engineering, and high-visibility Red housing to ensure error-free assembly.
Data Overview
| Attribute Category | Technical Specifications |
| Brand | JST Commercial |
| Product Series | ZND Series |
| Part Number (PN) | ZNDP-06V-C-R |
| Product Type | Wire Housings / Plug |
| Number of Positions | 6 Positions |
| Number of Rows | 1 Row |
| Pitch (Centerline) | 1.5 mm (0.059 in) |
| Keying Configuration | Controlled Key C |
| Housing Color | Red |
| Mounting Configuration | Cable Mount / Free Hanging / Wire-to-Board |
| Termination Style | Crimp |
| Compatible Wire Gauge | 24 AWG to 28 AWG |
| Current Rating | 2 A AC/DC |
| Voltage Rating | 100 V AC/DC |
| Contact Gender Compatibility | Socket (Female Crimp Terminals) |
| Contact Material Compatibility | Copper Alloy |
| Operating Temperature Range | -25°C to 85°C |

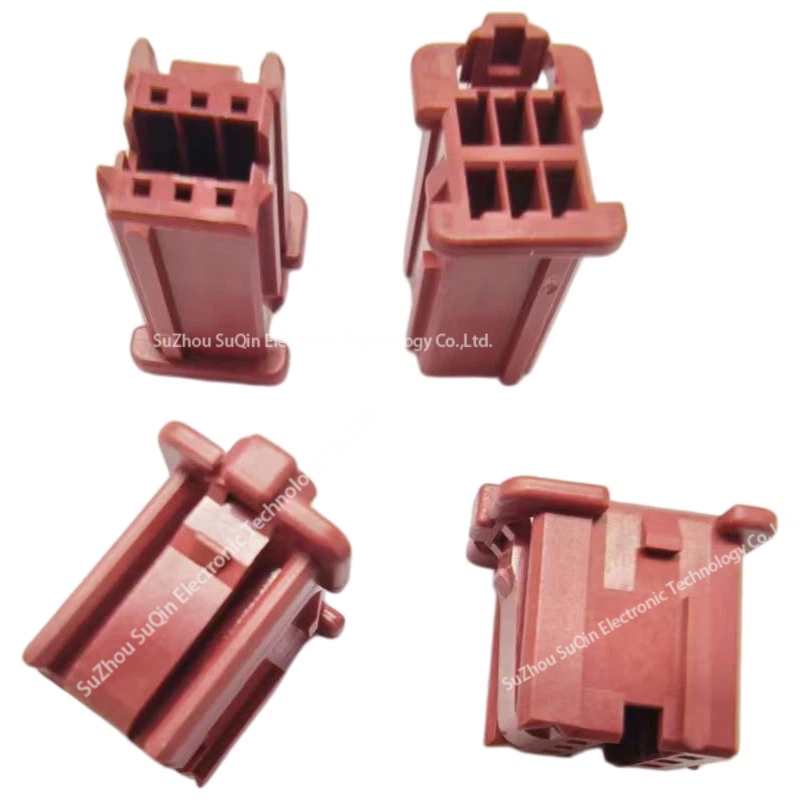

Product Details
| Specialized Controlled Key-C Alignment | High-Visibility Red Polyamide Construction | Compact 1.5mm Pitch with Secure Secondary Lock |

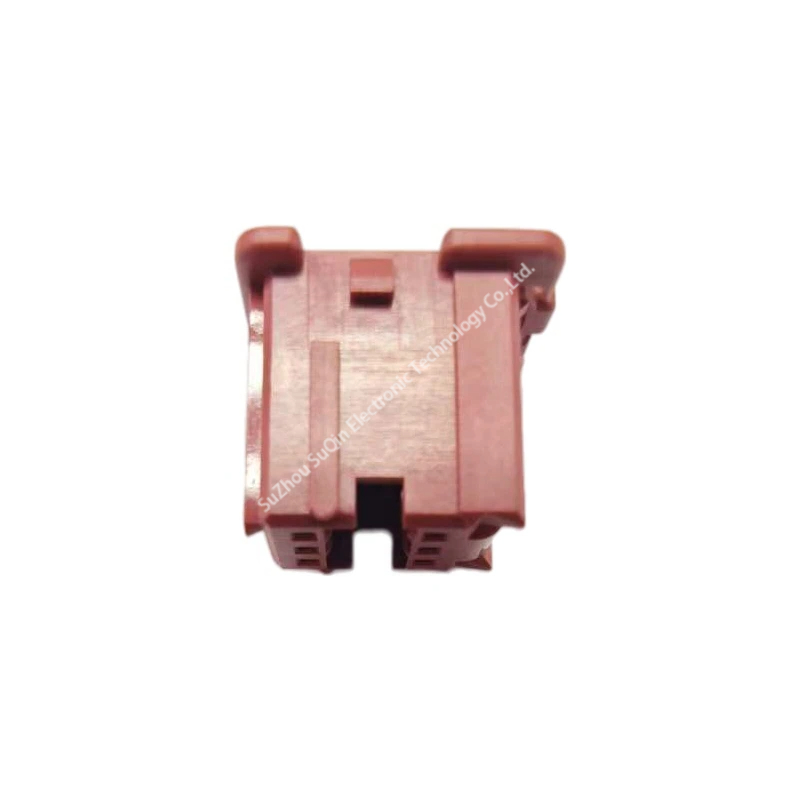

| Feature: Molded with a distinct “Controlled Key C” physical slot and ridge layout on the plug body. | Feature: Manufactured using heavy-duty, flame-retardant Polyamide resin in an industry-identifiable Red color. | Feature: Combines a micro 1.5mm centerline pitch with an integrated friction lock block on top. |
| Advantage: Prevents mismatching with neighboring 6-pin headers (such as Key-A) when multiple lines are laid out on one PCB. | Advantage: Enables warehouse managers, line operators, and inspectors to differentiate circuit paths instantly by eye. | Advantage: Saves more than 40% of board real estate while securing crimp wire connections against high-frequency vibration. |
| Benefit: Eradicates board-level electrical shorts caused by operator fatigue during manual connector insertion. | Benefit: Accelerates high-volume wire harness production speeds and drives factory rework rates to near zero. | Benefit: Empowers designers to safely shrink control modules without risking loose contacts or intermittent power failures. |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.
Q1: Can I insert the red ZNDP-06V-C-R housing into a standard white ZND board header?
A: Only if the PCB header is explicitly designated as a Key-C header. The “C” in ZNDP-06V-C-R refers to its unique physical Controlled Keying system. It will physically block entry into standard Key-A or Key-B ZND headers to prevent incorrect circuit crossover.
Q2: Does this ZNDP-06V-C-R product come pre-loaded with internal crimp pins?
A: No. This product includes only the insulated red plastic housing body. The internal metal crimp female socket terminals must be sourced and purchased separately according to your wire gauge requirements (24 to 28 AWG).
Q3: Is the red color version identical in material properties to the standard white ZND housing?
A: Yes. The red variant utilizes the exact same high-performance, flame-retardant polyamide material and technical specifications as the standard series, but adds high-visibility coloration to provide a foolproof visual indicator on complex production lines.
