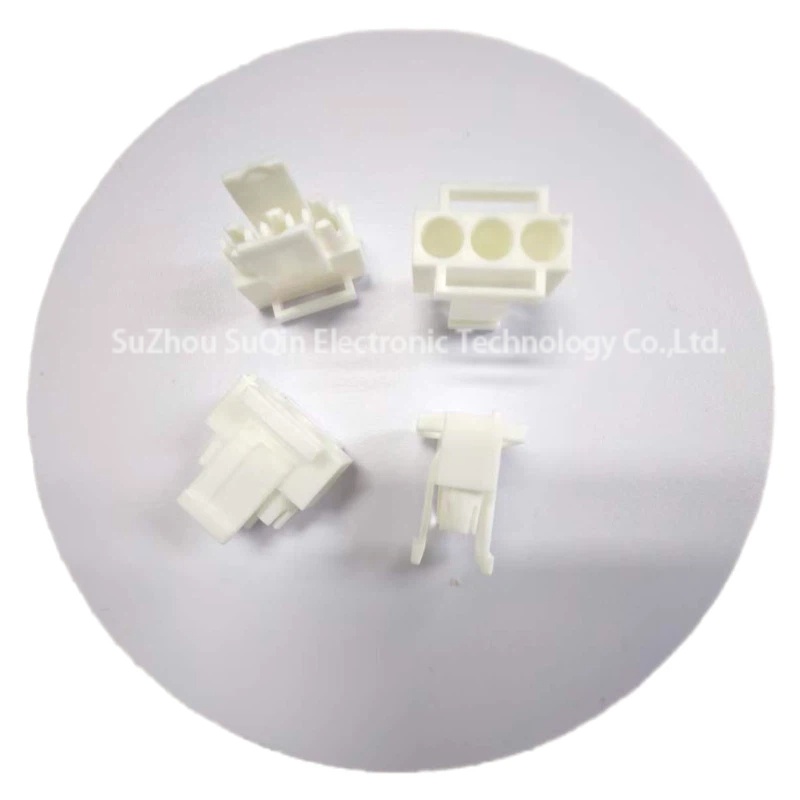

TE 770034-1 Universal MATE-N-LOK II 3-Pin Plug | 600V UL 94V-0 Housing
Short Description:
-
Manufacturer: TE Connectivity / Universal MATE-N-LOK II
-
Part Number: 770034-1
-
Number of Positions: 3 Circuit (1 Row, Inline)
-
Pitch (Centerline): 6.35 mm [.25 in]
-
Voltage Rating: 600 VAC (High Voltage Capable)
-
Flammability Rating: UL 94V-0 (Self-extinguishing)
-
Material: Nylon GF (Natural Color)
-
Mounting Type: Cable Mount (Free-Hanging)
-
Termination: Crimp (Wire-to-Wire)
-
Operating Temp: -55°C to +120°C
Product Detail
Product Tags
hop 770034-1 Universal MATE-N-LOK II 3-position plug housing. Features UL 94V-0 flame retardancy, 6.35mm pitch, and 600V rating. Ideal for robust wire-to-wire power and signal connections.
Data Overview
| Attribute Category | Technical Specification |
| Brand / Series | Universal MATE-N-LOK II |
| Product Model | 770034-1 |
| Connector Type | Plug Housing (Rear) |
| Positions | 3 Pin |
| Rows | 1 (Inline) |
| Voltage Rating | 600 VAC Max |
| Pitch (Centerline) | 6.35 mm [.25 in] |
| Housing Material | Nylon GF (Glass Filled) |
| Flammability | UL 94V-0 |
| Color | Natural (White/Clear) |
| Mating Orientation | Straight |
| Standard Certs | UL Recognized, CSA Certified, VDE |
| Temperature Range | -55°C to +120°C [-67°F to +248°F] |
Product Details
| Material & Safety Features | Mechanical & Electrical Advantages | Strategic Business Benefits |
| UL 94V-0 Flame Retardant Nylon | The housing material is engineered to self-extinguish within seconds in case of a thermal event. | Compliance & Safety: Meets strict global fire safety standards for industrial and home appliances, reducing liability and insurance risks. |
| 6.35mm High-Voltage Pitch | Large centerline spacing provides excellent electrical isolation between the 3 circuits. | Arc Protection: Prevents short circuits and electrical arcing in high-humidity or dust-prone environments, ensuring 600V stability. |
| MATE-N-LOK II Interlock Design | Features a precise locking mechanism that prevents accidental disconnection during vibration. | Zero Downtime: Ensures a reliable “click-mate” connection that stays secure in heavy machinery, minimizing maintenance and repair costs. |
| Versatile 3-Way Inline Layout | Optimized for simple wire-to-wire routing in compact power supply modules. | Simplified Assembly: Reduces wire harness complexity and allows for faster manual or automated assembly, speeding up production. |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.
Q1: What terminals are compatible with the 770034-1 plug housing?
A: The 770034-1 is part of the Universal MATE-N-LOK II series and requires specific socket contacts. It is designed to work with standard Universal MATE-N-LOK pins and sockets (typically 20-14 AWG) depending on your current requirements. Please ensure you select the matching terminals for a secure crimp connection.
Q2: What is the difference between UL 94V-2 and the UL 94V-0 rating of 770034-1?
A: UL 94V-0 is a superior safety rating. While V-2 allows for some dripping of flaming particles, V-0 requires that vertical burning stops within 10 seconds and no flaming drips are allowed. This makes 770034-1 much safer for high-power industrial applications where fire prevention is critical.
Q3: Can the 770034-1 be used for signal and power at the same time?
A: Yes, thanks to the 6.35mm isolation distance and high-quality Nylon material, this 3-pin housing can handle both high-current power delivery and low-voltage signals, making it a versatile choice for power supply units and control systems.
