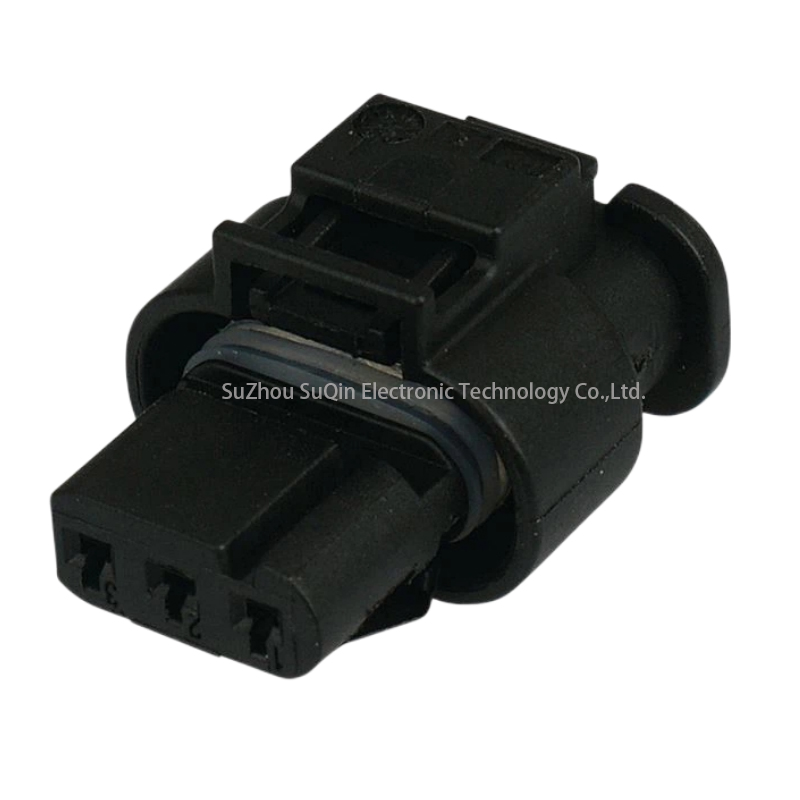

Hirschmann 872-858-541 3-Way Sealed Female Housing | 1.2mm LL
Short Description:
-
Manufacturer: Hirschmann
-
Part Number: 872-858-541
-
Series: Sealed Automotive Family
-
Number of Positions: 3 Way (Single Row)
-
Gender: Female Housing
-
Terminal Size: 1.2 mm
-
Terminal Type: Locking Lance (LL)
-
Safety Feature: Integrated TPA Latch (Terminal Position Assurance)
-
Application: Sealed (Waterproof/Dustproof)
-
Voltage Class: ≤ 60 V
-
Wire Range: Max. 1.0 mm²
Product Detail
Product Tags
Buy Hirschmann 872-858-541. A high-performance 3-way sealed female connector housing. Features 1.2mm terminal size, TPA latch for terminal security, and black PBT/PA66 material. Ideal for automotive sensor applications.
Data Overview
| Attribute Category | Technical Specification |
| Brand | Hirschmann |
| Model | 872-858-541 |
| Category | Rectangular Connector Housings |
| Connector System | Wire-to-Wire / Wire-to-Device |
| Number of Pins | 3 Way |
| Number of Rows | 1 |
| Compatible Terminal Size | 1.2 mm |
| Terminal Retention Type | Locking Lance (LL) |
| Housing Color | Black |
| Body Material | PBT / PA66 (Reinforced) |
| Voltage Class | ≤ 60 V DC |
| Max Wire Size | 1.0 mm² |
| Mating/Unmating Force | Max. 80 N |
Product Details
| Engineering Features & Specs | Technical & Assembly Advantages | Strategic Business Benefits |
| Integrated TPA Latch System | Provides Terminal Position Assurance, ensuring each terminal is fully seated and locked in the housing. | Zero Assembly Errors: Minimizes the risk of terminal “back-out” during vehicle operation, reducing diagnostic costs and high-stakes warranty claims. |
| Optimized Sealed Application | Engineered with premium seals to withstand high-pressure water spray and environmental contaminants. | Long-Term System Integrity: Protects sensitive ECU/sensor signals from moisture-induced short circuits, ensuring long-lasting vehicle reliability in all weather. |
| High-Grade PBT/PA66 Construction | Heat-stabilized and chemical-resistant materials suitable for engine-bay exposure. | Extreme Durability: Prevents housing cracking or deformation under thermal stress, extending the service life of the connection in high-vibration areas. |
| Low Mating Force (≤ 80 N) | Designed for smooth, ergonomic mating with tactile feedback during the assembly process. | Increased Production Speed: Reduces operator fatigue on the assembly line and guarantees a 100% secure “click” connection every time. |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.
Q1: What terminals are compatible with the Hirschmann 872-858-541?
A: This housing is designed for 1.2mm Locking Lance (LL) female terminals. We recommend using matching Hirschmann or compatible high-performance 1.2mm pins to ensure the TPA and sealing functions work perfectly.
Q2: Is this connector suitable for high-vibration engine sensors?
A: Yes. The combination of the Sealed Application design and the TPA Latch makes it specifically suitable for high-vibration areas like cam/crank sensors, where maintaining constant electrical contact is critical.
Q3: What wire size can be used with 872-858-541?
A: It supports a wire cross-section of up to 1.0 mm². For optimal sealing performance, please ensure your wire insulation diameter matches the recommended range for 1.2mm sealed terminal systems.
