90814-0910 PCB Headers and ReceptaclesPicoflex PF-50 Header with PCB Pegs MOLEX
Short Description:
Picoflex PF-50 Header with PCB Pegs
Vertical
Low Profile
Surface Mount
Tin (Sn) Plated
Product Detail
Product Tags
Designed for high-density PCB applications, the Molex 90814-0910 Picoflex PF-50 header combines precision engineering with rugged reliability. Featuring a slim 1.8mm profile and a ultra-fine 0.50mm pitch, this connector delivers stable signal transmission (0.3A rating) even in demanding environments (-40°C to +105°C). Its unique PCB pegs ensure secure alignment during automated assembly, eliminating misalignment risks during solder reflow processes.
Data Overview
| Flammability | 94V-0 |
| Material – Plating Mating | Tin |
| Net Weight | 0.598/g |
| PCB Thickness – Recommended | 1.60mm |
| Pitch – Termination Interface | 1.27mm |
Contact Features
| Material – Metal | Brass |
| Material – Resin | High Temperature Thermoplastic |
| Packaging Type | Embossed Tape on Reel |
| Plating min – Mating | 3.048µm |
| Temperature Range – Operating | -40° to +105°C |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

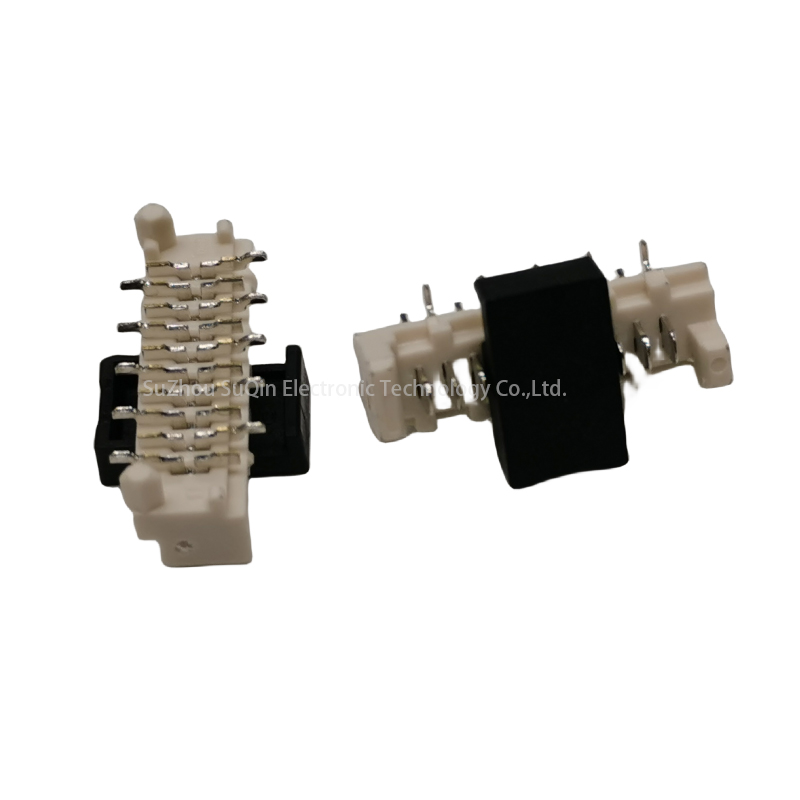

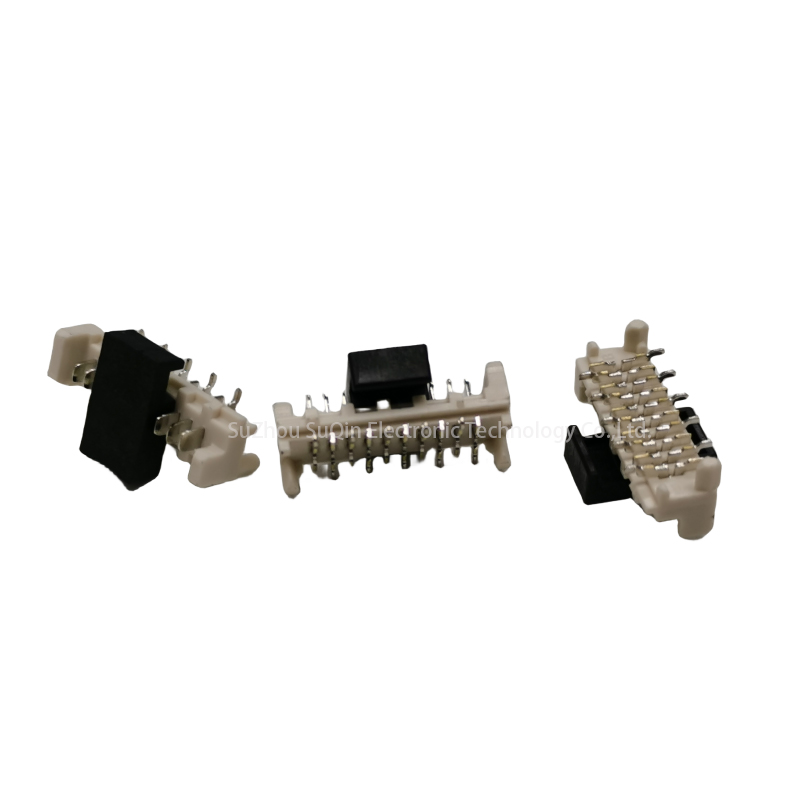

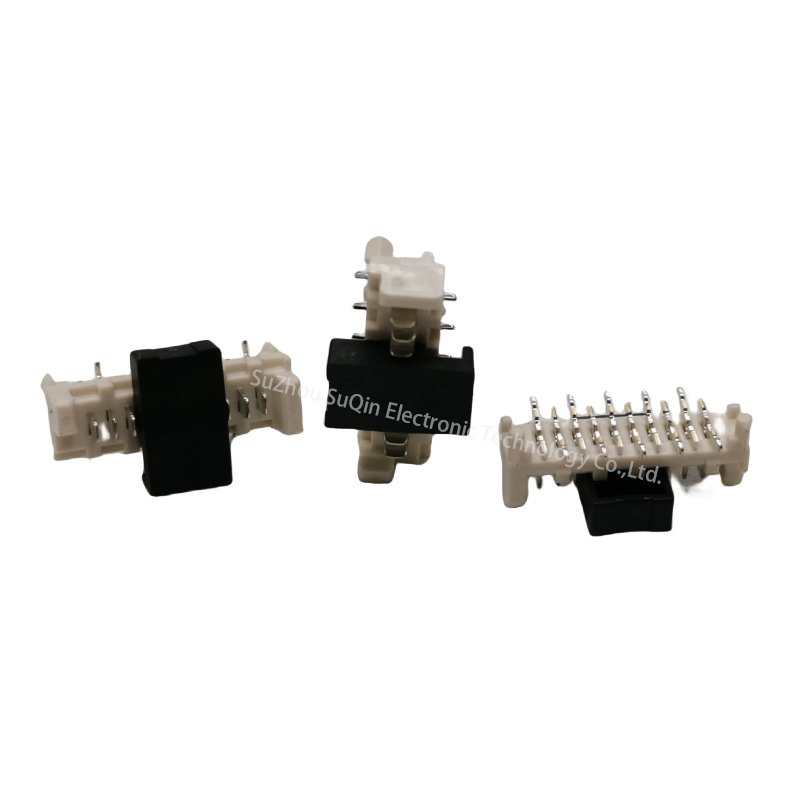

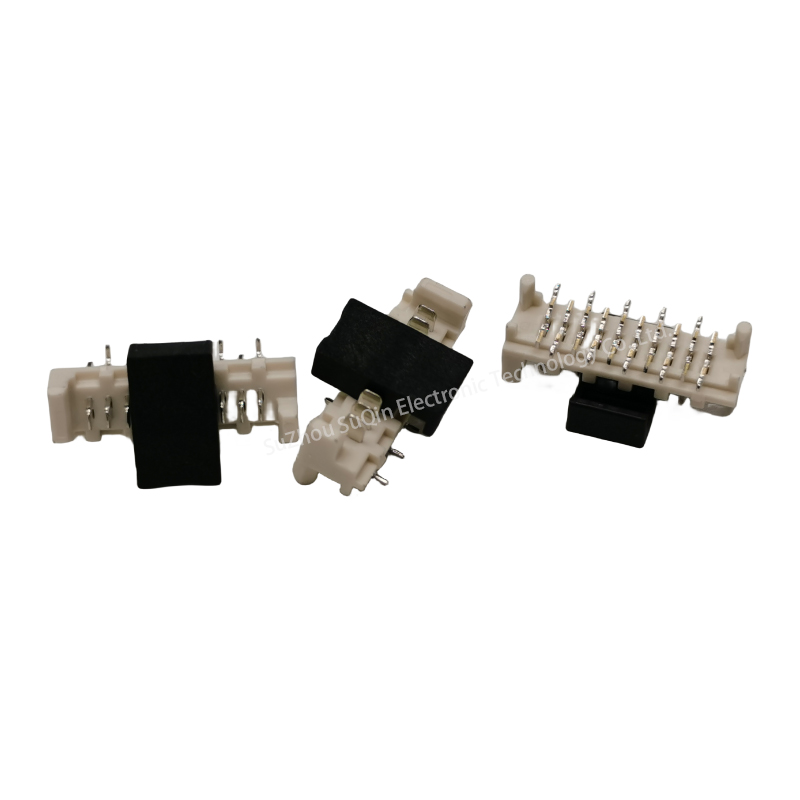

Product Display
