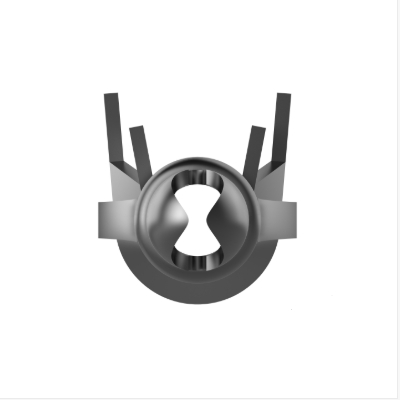

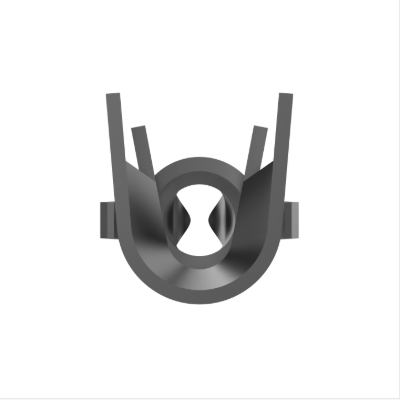

350687-1 Pin Contact Connector Contacts TE

Short Description:

Pin Contact, Tin (Sn), 600 VAC, Locking Lance Contact Retention, 20 – 14 AWG, .5 – 2 mm² Wire, Crimp, Brass, Power, Universal MATE-N-LOK

Send email to us

Product Detail

Product Tags

Tin-plated copper alloy male terminals for automotive/industrial connectors, rated for 60V and -40°C to +125°C, compatible with 16–14 AWG wire (1.5–2.1mm²) and paired with socket contacts, ensuring vibration-resistant, low-insertion-force connections compliant with USCAR-2, ISO 8092, and RoHS/REACH standards.

Data Overview

Contact Type	Pin
Contact Mating Area Plating Material	Tin (Sn)
Wire Contact Termination Area Plating Material	Pre-Tin
Operating Voltage (VAC)	600
Contact Retention Within Housing	With

Contact Features

Contact Shape & Form	Split
Mating Pin Diameter	2.18 mm [ .086 in ]
Contact Orientation	Straight
Contact Base Material	Brass
Contact Current Rating (Max) (A)	19
