Amphenol SLPPA16BSB3 | SurLok Plus 6 AWG Female Socket Plug | Black
Short Description:
-
Brand: Amphenol Industrial Operations
-
Series: SurLok Plus™
-
Part Number: SLPPA16BSB3
-
Type: Terminal Plug, Female Socket
-
Wire Gauge: 6 AWG
-
Termination: Crimp
-
Housing Color: Black
-
Contact Technology: Patented RADSOK® (High Current Density)
-
Locking Mechanism: Quick Lock & Press-to-Release
-
Compliance: ROHS3 Compliant, EAR99
Product Detail
Product Tags
Get the original Amphenol SLPPA16BSB3 SurLok Plus 6 AWG female socket plug at Suzhou Suqin. Features RADSOK technology for high-current reliability. Black, ROHS3 compliant, and ideal for ESS/EV applications.
Data Overview
| Attribute Category | Technical Specification |
| Manufacturer | Amphenol Industrial Operations |
| Series Name | SurLok Plus™ |

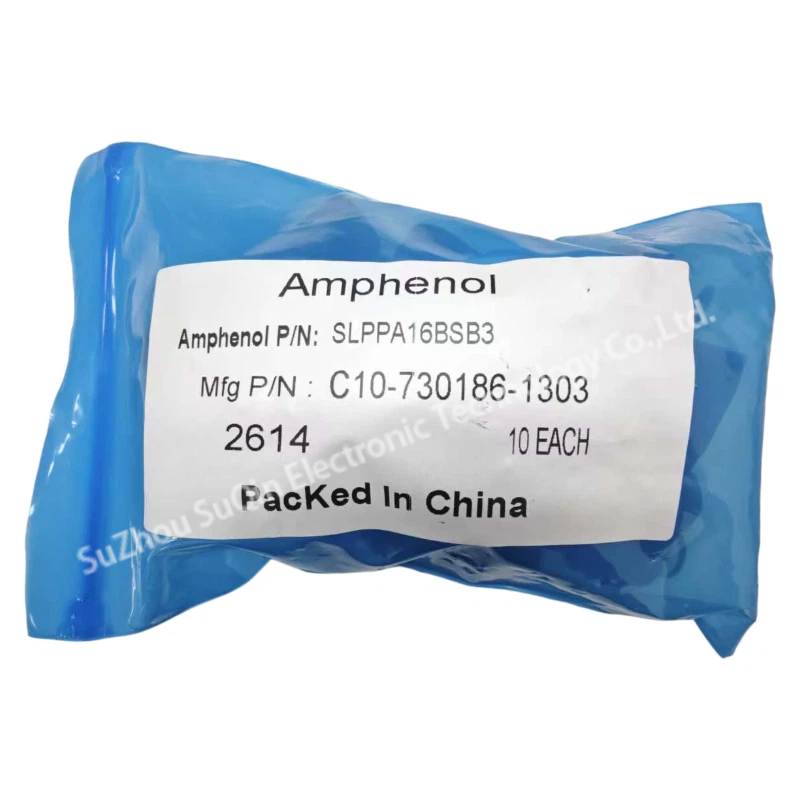

| Product Number | SLPPA16BSB3 (C10-730186-1303) |
| Connector Type | Plug, Female Socket |
| Wire Gauge Support | 6 AWG |
| Termination Method | Crimp |
| Body Material | High-Grade Thermoplastic (UL94-V0) |
| Color | Black |
| Moisture Sensitivity | MSL 1 (Unlimited) |
| Operating Status | Active |
| Regulatory | ROHS3 Compliant |
| HTSUS Code | 8536.90.4000 |
Product Details

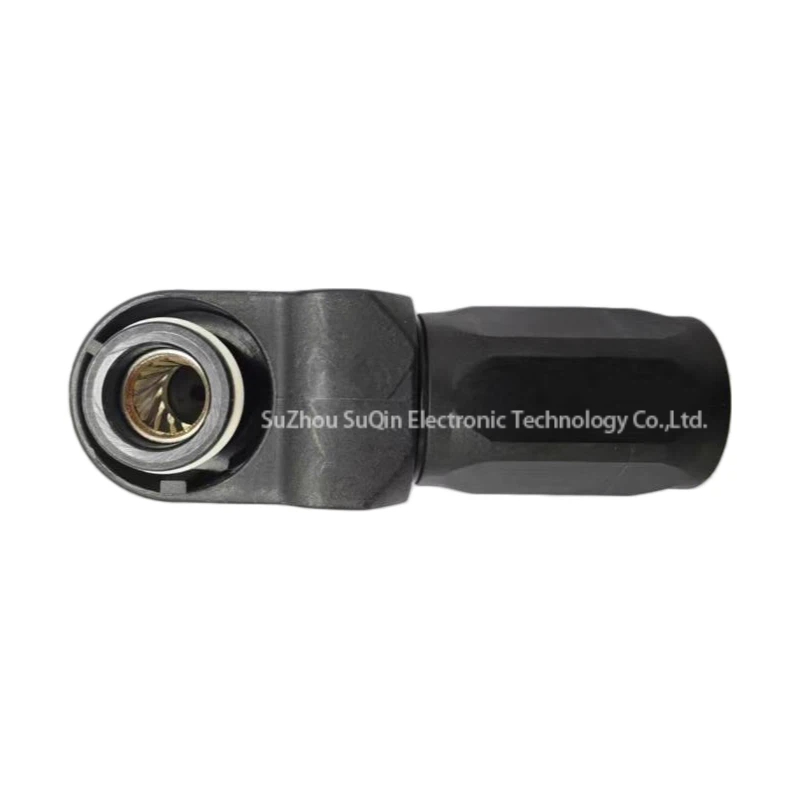

| High-Current Power Density (RADSOK) | Secure Quick-Lock Mechanism | 360° Rotational Flexibility |

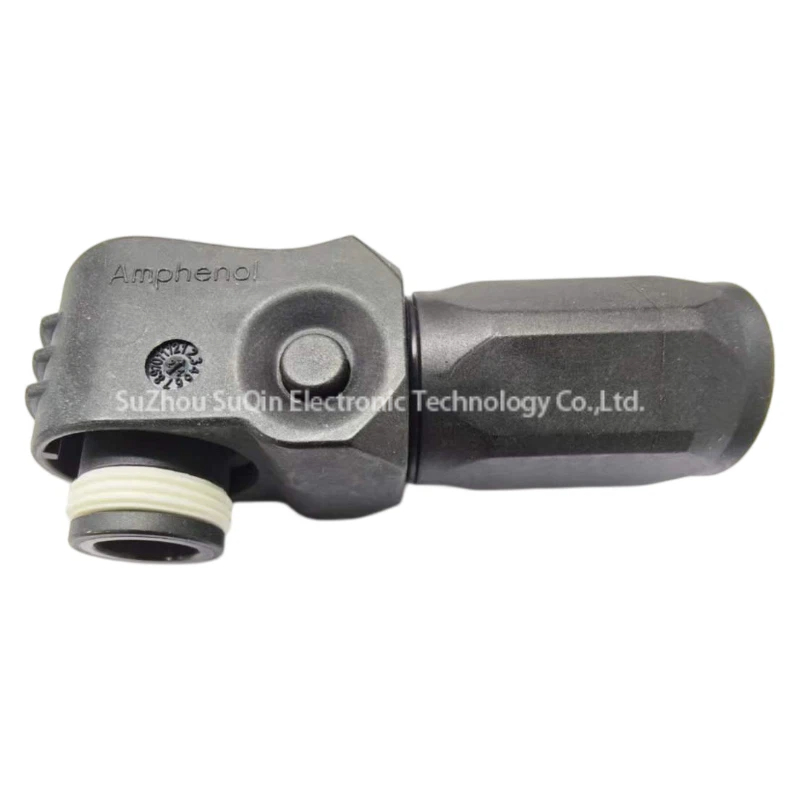

| Patented RADSOK Terminal Design | Integrated “Press-to-Release” spring-lock system ensures a tactile and audible “click” upon mating. | Right-Angle Plug Configuration allows the connector to rotate 360 degrees after being mated to the pin. |
| Higher Amperage, Lower Rise: Provides more surface contact area than standard terminals, reducing millivolt drop and heat generation. | Failsafe Connection: Eliminates the risk of accidental decoupling due to vibration or pulling, significantly enhancing system safety. | Optimized Cable Routing: Provides engineers with the freedom to route heavy 6 AWG cables in tight spaces without mechanical stress. |
| Benefit: Maximizes power efficiency and extends component lifespan in compact Energy Storage Systems (ESS). | Benefit: Reduces installation time by up to 80% compared to traditional bolt-on lug terminals. | Benefit: Simplifies complex wiring layouts in EV battery packs and industrial power cabinets. |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.
Q1: What are the main applications for the SLPPA16BSB3?
A: This connector is primarily used in Battery Energy Storage Systems (BESS), electric vehicle power distribution, and industrial high-current applications. Its quick-connect design makes it ideal for modular battery rack interconnections.
Q2: Is a special tool required for the SurLok Plus crimping process?
A: Yes, the internal metal terminal should be crimped onto the 6 AWG wire using an Amphenol-approved crimping tool or a high-quality industrial hydraulic crimper to ensure a low-resistance, gas-tight connection.
Q2: Which female connector does this part plug into?
A: The 6187-2171 (Male) is designed to mate perfectly with the Sumitomo 6180-2181 (Female) connector. Both belong to the 2.3mm (090) MT Sealed Series.
