C091 31F007 100 2 DIN ConnectorsM16 Female cable connectorAmphenol

Short Description:

C091 31F007 100 2 M16 Female cable connector
with internal strain relief and metal locking ring

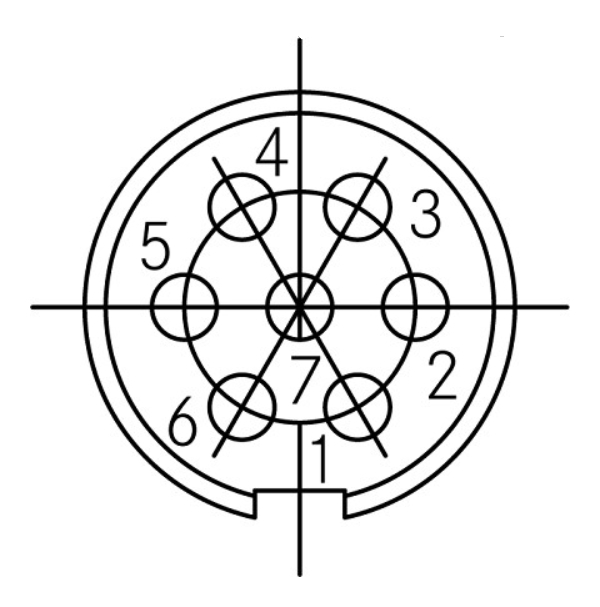

7 contacts
silver plated
4-6mm cable diameter

Send email to us

Product Detail

Product Tags

‌Amphenol C091 31F007 100 2‌ is a rugged 7-pin female M16 cable connector with nickel-plated zinc alloy housing, designed for industrial applications. Rated for 300V/5A, it features IP65/IP67/IP69K protection against dust, water jets, and chemicals, Its solder cup terminations and EMI shielding ensure reliable signal/power transmission in harsh environments like automation systems and control cabinets. The connector supports free-hanging or right-angle installations, offering durability and easy wiring. RoHS-compliant and built for vibration resistance, it’s ideal for motor controls, sensors, and machinery requiring robust electrical connections.

Data Overview

Contacts	7
Cable Diameter	4 – 6mm
Current Rating	7A
Termination	Solder
Locking	Screw

Contact Features

Contact Plating	Silver
Insert	Thermoplastic
Version	Right angled; metal
Wire Gauge	0.5 mm (20 AWG)
Housing	Zinc Die Cast, Nickel Plated
