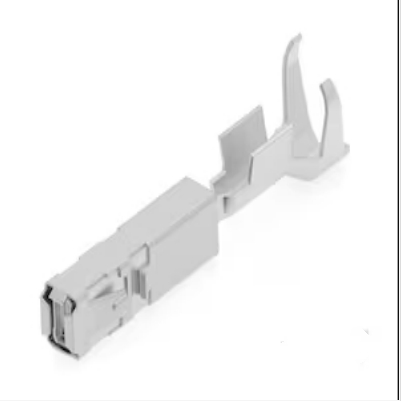

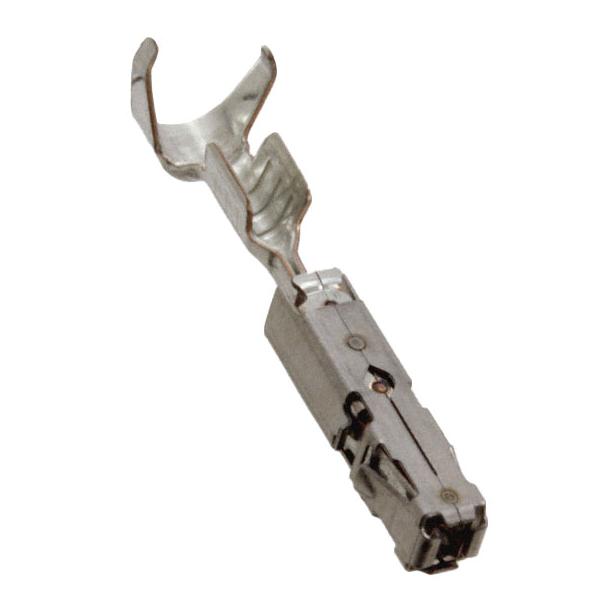

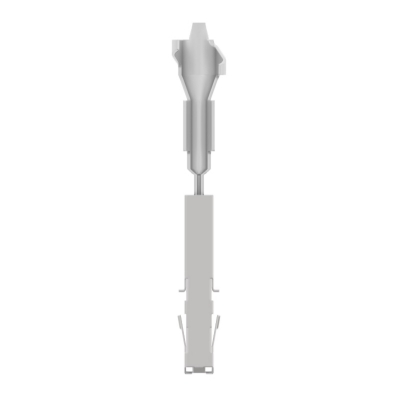

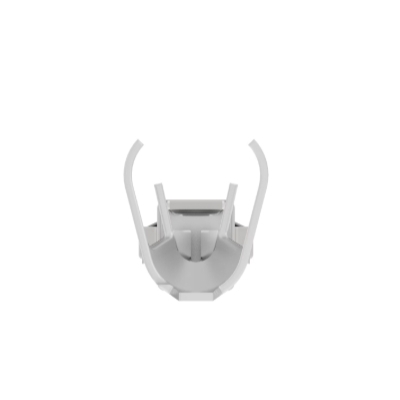

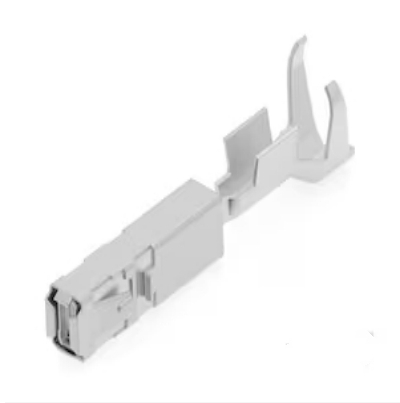

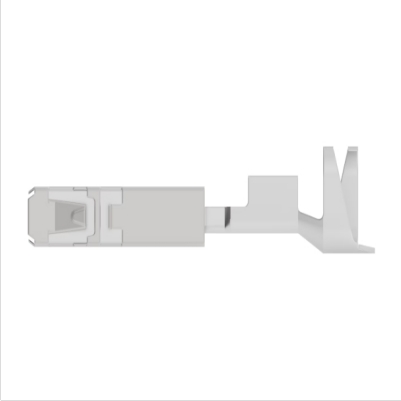

1241380-1 TE Connectivity Mating Tab Width 1.5 mm [.059 in], Tab Thickness .6 mm [.024 in], 20 – 17 AWG Wire Size
Short Description:
TE Internal #: 1241380-1
TE Internal Description: AMP MCP 1.5K, CONTACT, SWS
Terminal Type : Receptacle
Wire Size (AWG): 20 – 17
Wire Size (mm²): .5 – 1
Mating Tab Width : 1.5 mm [ .059 in ]
Interface Plating : Tin (Sn)
Product Detail
Product Tags
Receptacle Style : 180°
Primary Locking Feature : Locking Lance
Sealable : Yes
Body Features
Terminal Seal Type : Single Wire Seal (SWS)
Contact Features
Wire Contact Termination Area Plating Material : Tin
Contact Fabrication : Stamped & Formed
Contact Size : 1.5K
Crimp Type : F-Crimp
Typical Current Rating (A): 12
Terminal Type : Receptacle
Mating Tab Width : 1.5 mm [ .059 in ]
Interface Plating : Tin (Sn)
Mating Tab Thickness : .6 mm [ .024 in ]
Usage Conditions
Insulation Option : Uninsulated
Operating Temperature (Max) : 125 °C [ 212 °F ]
Operating Temperature Range : -40 – 130 °C [ -40 – 266 °F ]
