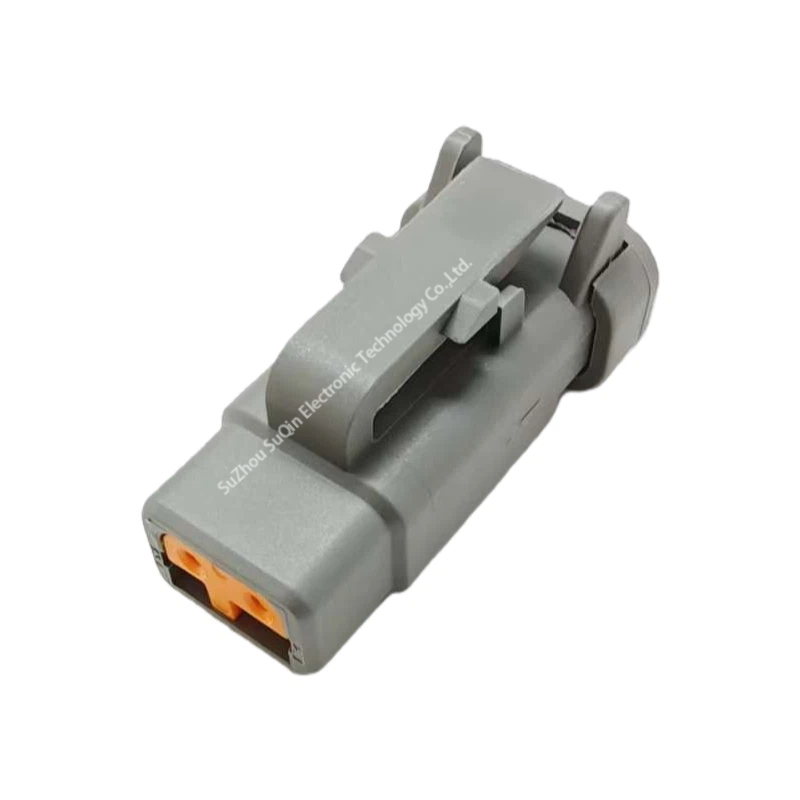

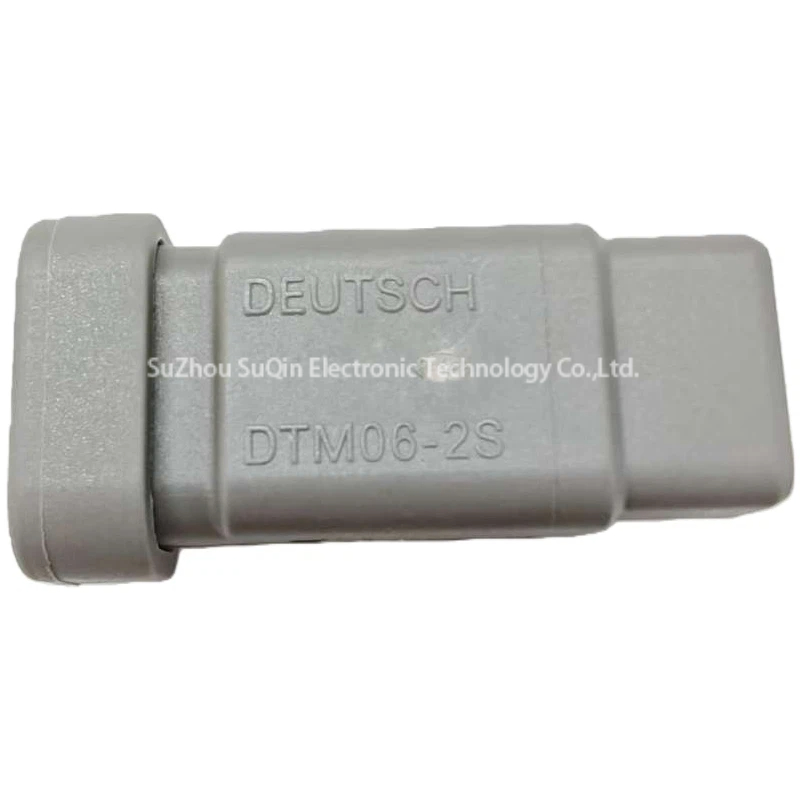

DTM06-2S-P006 DEUTSCH DTM 2-Way Plug | J1939 CAN Bus Terminator
Short Description:
- Manufacturer: TE Connectivity / DEUTSCH
- Part Number: DTM06-2S-P006
- Modification: Integrated 120 Ohm Terminating Resistor
- Application: SAE J1939 CAN Bus System
- Number of Positions: 2 Positions
- Contact Size: Size 20 (7.5 Amps Max)
- Color: Gray (Keying Code A)
- Environmental Protection: IP68 & IP6K9K (Waterproof)
- Temperature Range: -55°C to 125°C [-67°F to 257°F]
Product Detail
Product Tags
Shop TE DTM06-2S-P006. A 2-position DTM series plug with integrated 120 Ohm terminating resistor for J1939 CAN Bus. IP68 rated, size 20 contacts, 7.5A max.
Data Overview
| Attribute | Specification |
| Brand | TE Connectivity / DEUTSCH |
| Part Number | DTM06-2S-P006 |
| Special Modification | 120 Ohm Terminating Resistor (J1939) |
| Number of Positions | 2 |
| Connector System | Component-to-Wire |
| Contact Size / Max Current | Size 20 / 7.5 A |
| Mating Pin Diameter | 1.02 mm [.04 in] |
| Keying Code | A (Gray) |
| Operating Voltage | 250 VAC / 250 VDC |
| Centerline (Pitch) | 4.19 mm [.165 in] |
| Housing Material | PA GF (Glass-Filled Polyamide) |
| IP Rating | IP68, IP6K9K |
| Insulation Dia. Range | 1.35 – 3.05 mm [.053 – .12 in] |
| Operating Temperature | -55°C to 125°C |
Product Details

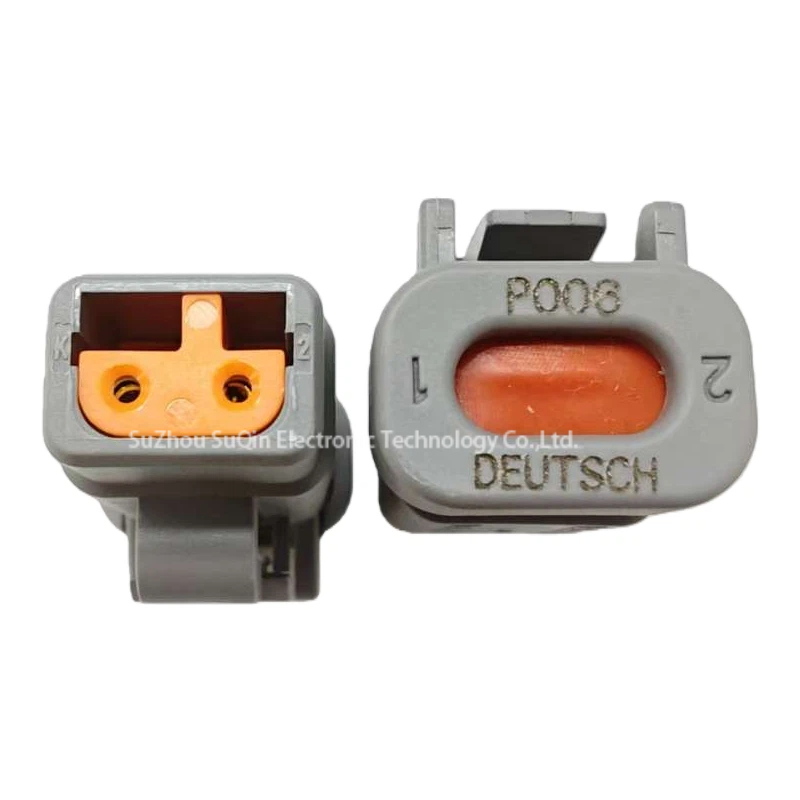

| Product Features | Engineering Advantages | Customer Benefits |
| Integrated J1939 Resistor | Built-in 120 Ohm terminating resistor specifically designed for CAN Bus data links. | Signal Integrity: Prevents signal reflections on the communication line, ensuring error-free data transmission in complex vehicle networks. |
| Proven DTM Series Ruggedness | Compact size 20 contact design within a PA GF (Glass Filled Polyamide) housing. | Space & Weight Saving: Provides heavy-duty performance in a smaller footprint than the DT series, ideal for dense engine and chassis wire harnesses. |
| IP68/IP6K9K Dual Rating | Features high-performance seals capable of withstanding high-pressure steam jet cleaning. | Ultimate Reliability: Guarantees uptime in the harshest environments (mud, water, high-temp), reducing maintenance costs in construction and ag-tech. |
| Mechanical Keying Code A | Precisely molded gray housing prevents mis-mating with other DTM keys. | Simplified Troubleshooting: Standardized gray coding allows technicians to quickly identify termination points in the J1939 network architecture. |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.
Q1: What is the purpose of the 120 Ohm resistor in the DTM06-2S-P006?
A: In a CAN Bus (SAE J1939) network, a 120 Ohm resistor is required at both ends of the main trunk line to absorb signal reflections. The P006 modification integrates this resistor directly into the connector, eliminating the need for external resistor wiring.
Q2: Which wedgelock is required for the DTM06-2S-P006?
A: This plug housing requires the WM-2S (standard) or WM-2SB (black) wedgelock to ensure the contacts are locked in place and the TPA is engaged.
