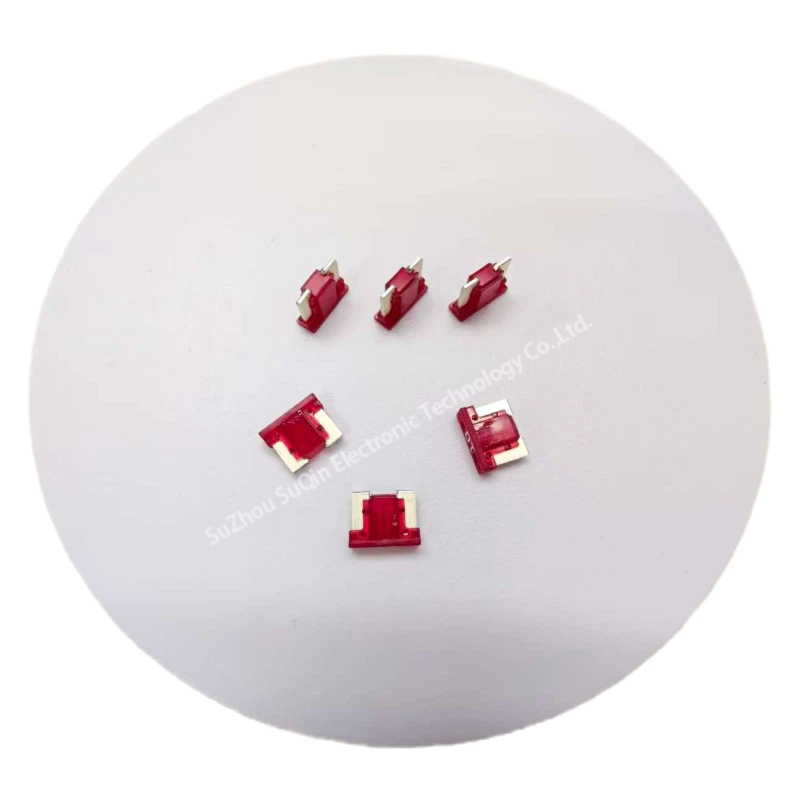

Littelfuse 0891010.NXS LP MINI Fuse | 10A 58V Red Automotive Fuse
Short Description:
-
Manufacturer: Littelfuse Inc.
-
Part Number: 0891010.NXS
-
Series: LP MINI® 891 Series
-
Current Rating: 10 Amps (Standard Red Coding)
-
Voltage Rating: 58 VDC (Ideal for 12V/24V/48V Systems)
-
Fuse Type: Low Profile Miniature Blade (Automotive)
-
Response Time: Fast-Acting / Fast Blow
-
Mounting: Requires LP MINI Fuse Holder / PDM
-
Operating Temp: -40°C to +125°C
-
Breaking Capacity: 1 kA @ 58 VDC
-
Color Code: Red (Instant Amperage Identification)
Product Detail
Product Tags
Buy Littelfuse 0891010.NXS LP MINI 10A automotive fuse. 58VDC rated, red color-coded for 10 Amp circuits. High-performance, fast-acting circuit protection for space-constrained EV & automotive power modules.
Data Overview
| Attribute Category | Technical Specification |
| Brand | Littelfuse Inc. |
| Model | 0891010.NXS |
| Series | LP MINI® 891 |
| Current Rating | 10 A |
| Voltage Rating | 58 VDC |
| Housing Color | Red (10A Standard) |
| Response Characteristic | Fast Blow |
| Interrupting Rating | 1000A @ 58 VDC |
| Melting I²t (Nominal) | 102.0 |
| DC Cold Resistance | 0.00759 Ohms |
| Body Material | High-Temp Thermoplastic |
| Standard Dimensions | 10.9 x 3.8 x 8.4 mm |
| Net Weight | Approx. 0.4g |
Product Details
| Product Features | Engineering Advantages | Customer Benefits |
| 58VDC High Voltage Support | Specifically designed to safely interrupt circuits in both standard 12V and advanced 48V power architectures. | Versatile Application: One fuse type covers multiple vehicle platforms, simplifying your inventory management for both traditional and new energy vehicles (NEV). |
| Low-Profile Compact Body | Features a reduced height profile (8.4mm) compared to standard MINI fuses without sacrificing performance. | Space Saving: Enables the design of thinner, lighter fuse boxes and power distribution units, freeing up critical space in compact electronic control modules. |

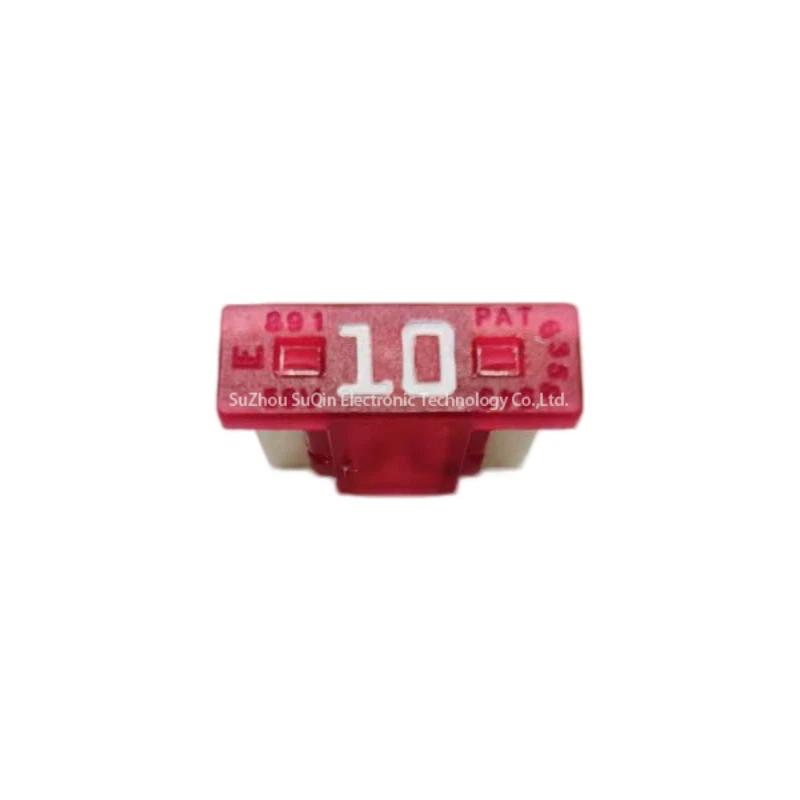

| Transparent Red Housing | Industry-standard red translucent casing allows for quick visual inspection of the fuse element. | Efficiency in Maintenance: Technicians can instantly identify a blown fuse and verify the 10A rating at a glance, significantly reducing diagnostic time and maintenance costs. |
| Fast-Acting Response Time | Precisely engineered melting characteristics (102.0 I²t) to blow instantly upon a short circuit. | Ultimate Equipment Protection: Guards sensitive electronic components against catastrophic surges, ensuring the long-term safety and reliability of expensive vehicle circuitry. |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.
Q1: Can I use the 10A 0891010.NXS to replace a 10A MINI fuse?
A: No, although they share the same amperage and pin spacing, the Low Profile MINI (891 Series) is physically shorter. A standard MINI fuse will stick out too far, and a Low Profile MINI might not reach the contacts in a standard MINI holder. Always use the specific fuse type your fuse box is designed for.
Q2: Why is the 58V rating important for a 10A automotive fuse?
A: With the rise of 48V mild-hybrid vehicle systems, a traditional 32V fuse is no longer sufficient. The 58VDC rating of the 0891010.NXS ensures that in the event of a fault, the fuse can safely quench the electrical arc without causing fire or damage to the holder.
Q3: How can I tell if the 0891010.NXS fuse is blown?

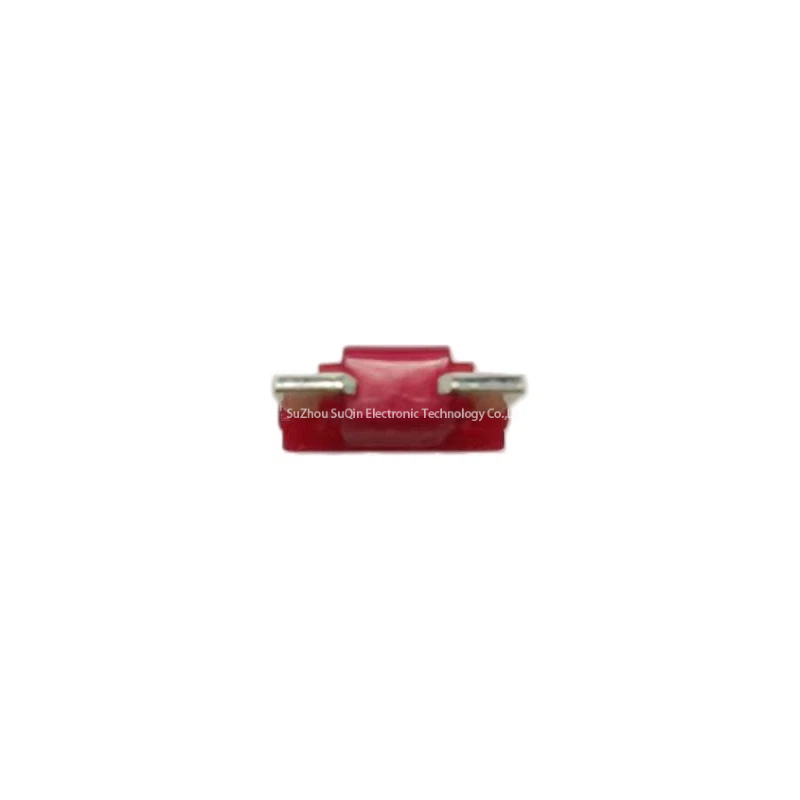

A: The 0891010.NXS has a red translucent body. You can inspect the metal bridge inside the fuse; if the link is severed or the plastic appears dark/burnt, the fuse has blown and needs to be replaced with a new 10A unit.
