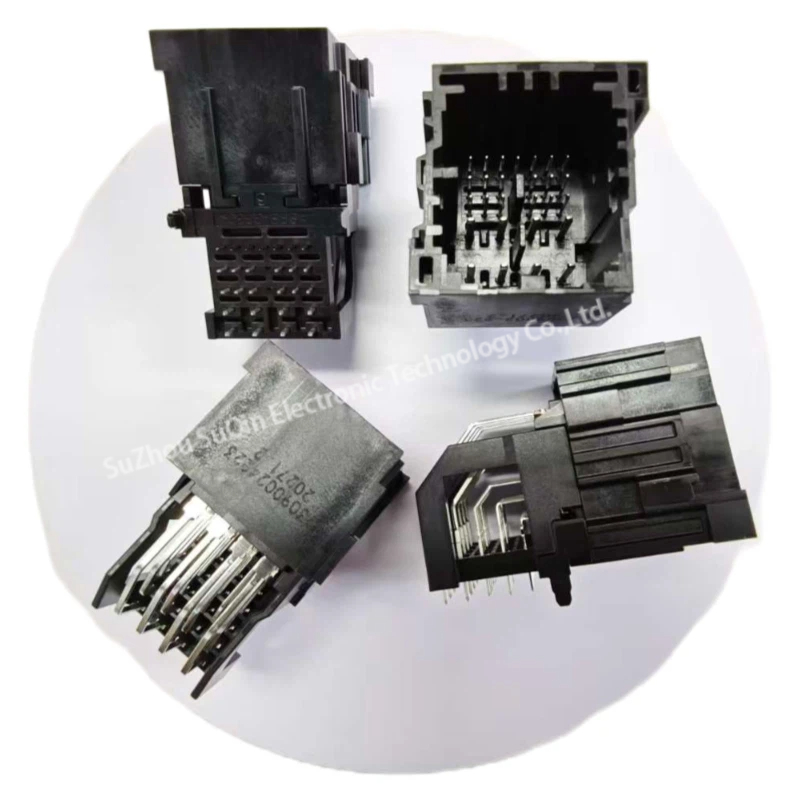

Molex 2005020271 stAK50h 27-Pin Right-Angle Header | Automotive PCB Plug

Short Description:

Manufacturer: Molex
Part Number: 2005020271
Series: stAK50h (High-Density Automotive)
Positions: 27 Circuits (5-Row Configuration)
Orientation: Right Angle (Horizontal PCB Mount)
Mounting Type: Through Hole (Solder)
Voltage Rating: 14V DC

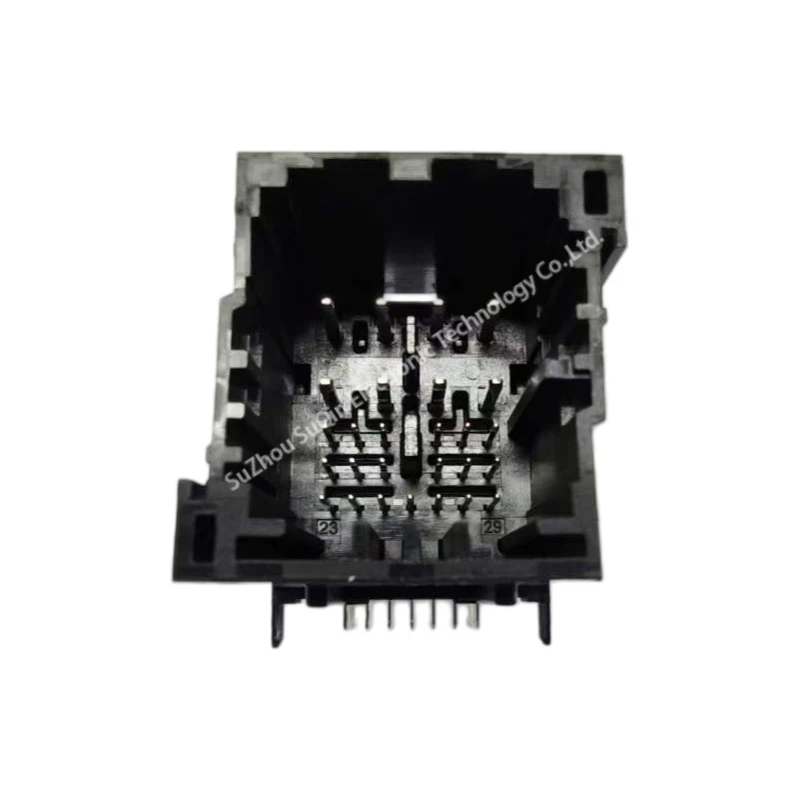

Housing Material: Glass-filled SPS (Black)
Temperature Range: -40°C to +105°C
Standards: USCAR-2 Compliant / UL 94V-0

Product Detail

Product Tags

Shop Molex 2005020271. A 27-position, 5-row right-angle stAK50h series header for automotive applications. Features 14VDC rating, high-temp SPS housing, and tin-plated copper alloy pins.

Data Overview

Attribute Category	Technical Specification
Brand	Molex
Part Number	2005020271
Connector Type	Header, Male Pins
Number of Positions	27
Number of Rows	5
Row Spacing (Mating)	3.00 mm [0.118 in]
Mounting Orientation	Right Angle

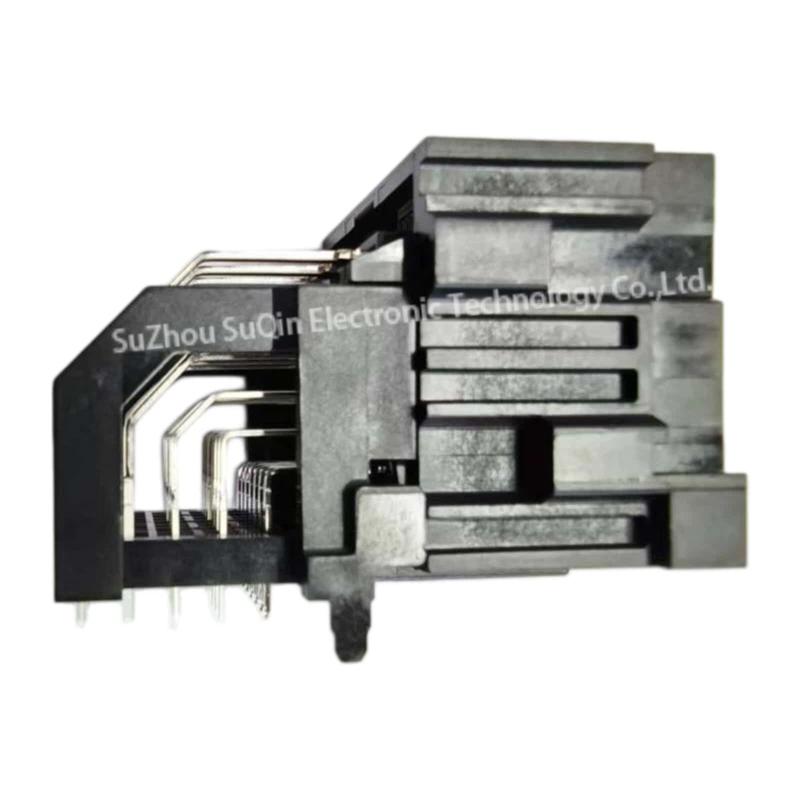

Termination Style	Through Hole – Solder
Contact Material	Copper Alloy
Mating/Post Plating	Tin (Sn)
Insulation Material	SPS (Syndiotactic Polystyrene)
Operating Voltage	14 VDC
Flammability Rating	UL 94V-0
Operating Temperature	-40°C to +105°C

Product Details

Core Engineering Features	Technical & Assembly Advantages	Strategic Business Benefits
Ultra-High Density 5-Row Layout	Packs 27 signal channels into a compact horizontal interface, maximizing PCB edge utilization.	Superior Packaging Efficiency: Reduces the total PCB area required for I/O, allowing for smaller and lighter electronic control units (ECUs).
Glass-Filled SPS Thermoplastic	Offers exceptional dimensional stability and high heat resistance during the soldering process and operation.	Zero Thermal Failure: Ensures the connector housing won’t warp or degrade in high-temperature vehicle environments, protecting the long-term circuit integrity.

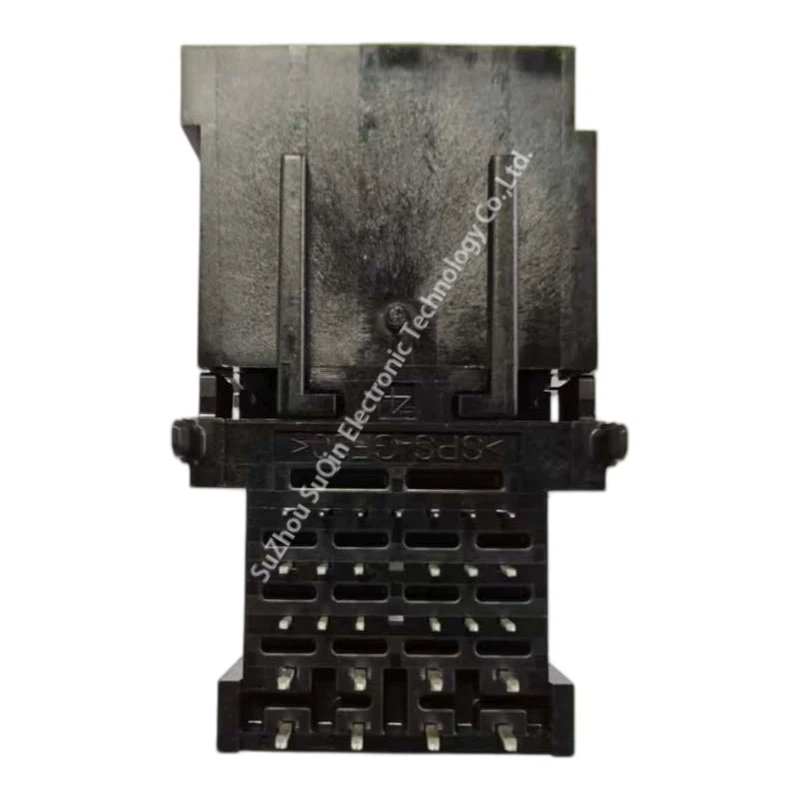

Integrated Board Guide & Latch Holder	Features precise alignment posts and a robust latching system to ensure correct mating and retention.	Simplified Production: Minimizes assembly errors and prevents accidental disconnections due to vehicle vibration or rough handling.
Tin-Plated Copper Alloy Contacts	Delivers excellent conductivity and corrosion resistance at a cost-effective price point compared to gold.	Optimized BOM Cost: Provides automotive-grade reliability for 12V/14V systems while maintaining a competitive budget for large-scale manufacturing.

Our advantage

● Brand supply diversification,
Convenient one-stop shopping

● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.

● Complete information, fast delivery
Reduce intermediate links

● Good after-sales service
Quick response, professional reply

● Original genuine guarantee
Support professional consultation

● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

Q1: Is the 2005020271 compatible with standard USCAR automotive interfaces?

A: Yes, the stAK50h series is designed and tested to meet USCAR-2 standards. The 2005020271 specifically provides the high-density signal requirements typical in modern global automotive platforms.

Q2: What are the advantages of the SPS material used in the housing?

A: SPS (Syndiotactic Polystyrene) is chosen for its excellent chemical resistance and low moisture absorption. Unlike some other plastics, it maintains high dimensional stability after wave soldering, ensuring the 27 pins remain perfectly aligned for mating.

Q3: Does this header require specific mating receptacles?

A: Yes, this header must be paired with the corresponding stAK50h 27-circuit female receptacle housings. To ensure proper keying and latching, always verify the “Keying Option” (this model is a standard configuration) before purchase.
