How to identify male and female ends of an auto connector?

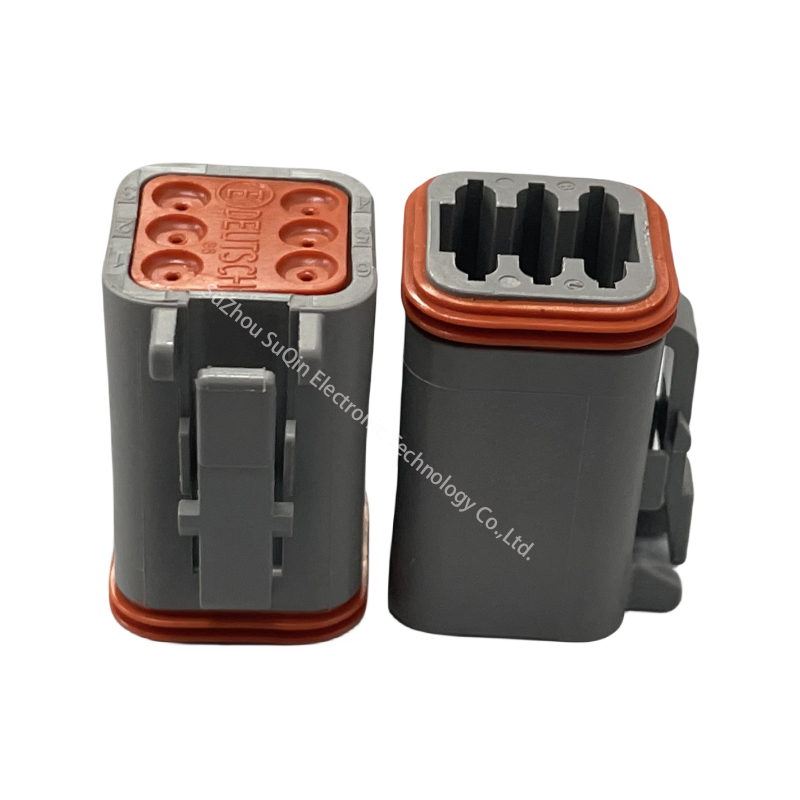

DT06-6S-C015 Female connector

DT06-6S-C015 Female connector

Auto connector male and female refer to automobile plugs and sockets, which we often call automotive male and female connectors. In connectors of electronic equipment, the circuit’s output end is usually directly equipped with a plug. The input end of the circuit is equipped with a socket, which forms the male and female connectors in the connection process.


A plug generally refers to one end of a connecting wire or cable. It usually has several pins. The shape and number of pins generally correspond to the number of holes in the corresponding socket, so that it can be inserted into the correct position. The socket receives the pins of the plug and transfers the electricity. A component in a connector that carries signals to other electronic devices and is used to support a plug.


Simply put, the male plug is equivalent to a header, and the plug is equivalent to a socket. Both are very important in the circuit connection process because they can ensure the correctness and stability of the circuit connection and at the same time protect the safety and security of the circuit equipment, and reliability, unauthorized people cannot operate circuit equipment at will, preventing equipment from being damaged or malfunctioning.


Auto Connector male and female connectors are very important components in electronic equipment. They are used to insert and connect lines and sockets on devices. Therefore, their correct distinction and use are particularly important. The following is a detailed introduction to how to distinguish connectors between male and female:

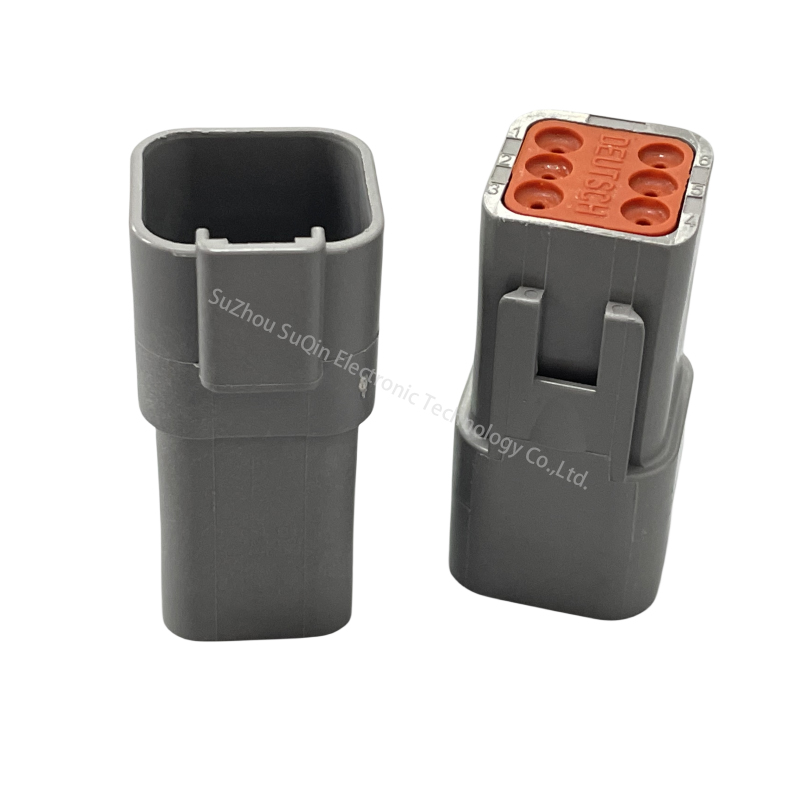

 DT04-6P male connector

DT04-6P male connector

How to distinguish the male and female connectors


1. Observation and judgment

Usually, we can roughly distinguish the male and female connectors by observing the connector design. The male connector is a relatively small part with several pins or conductors on it. It is often inserted into the socket and comes in gray, silver, and other colors. Mostly, the connector socket is a relatively large part, with holes or slots for placing the male connector, and is mostly in white and other colors.


2. Pins and Jacks

Another commonly used differentiation method is to distinguish based on the shape of the pins and jacks of the male and female connectors. Generally speaking, the male and female connectors are the corresponding combinations of pins and jacks. Among them, is the male connector The header generally has inherent protruding pins, and the socket has a corresponding protruding jack; the female connector, on the contrary, has a recessed jack inside for the protruding male connector to be inserted.


3. Dimensions

In some cases, the only difference between the male and female connectors is size and specification. For connectors, the specific sizes of the male and female connectors are generally given to ensure that the connectors used are connected correctly. In this case, the size specification is also an important reference for distinguishing the male and female connectors. You only need to select the corresponding connector according to the size.


In short, no matter which method is used to distinguish the male and female connectors of automobile connectors, they must be used accurately in use to ensure the stability and safety of the connector.  Only according to the correct method to select and connect the car connector male and female head, in order to ensure the correctness and stability of the circuit, so as to better protect the safety and reliability of the equipment.
