Connector plugs are the unsung heroes of electrical systems, powering everything from household appliances to industrial machinery. Whether you’re a DIY enthusiast or a professional electrician, understanding the basics of connector plugs ensures safety, efficiency, and longevity. In this guide, we’ll break down everything you need to know about connector plugs.

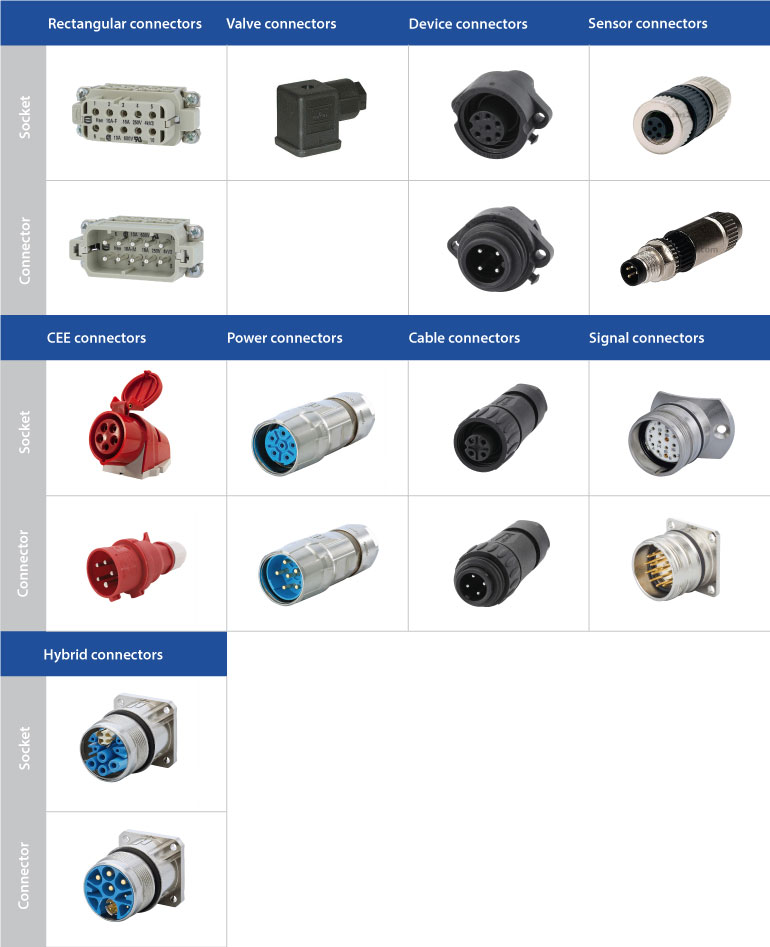

1. Types of Connector Plugs
-
AC Power Plugs:
- Standard household plugs (Type A/B in North America, Type C/F in Europe).
- Industrial-grade plugs (IEC 60309 for high-voltage applications).
-
Audio/Video Connectors:
- HDMI, RCA, and XLR for audiovisual setups.
-
Data Connectors:
- USB-C, Ethernet (RJ45), and coaxial cables.
-
Specialized Plugs:

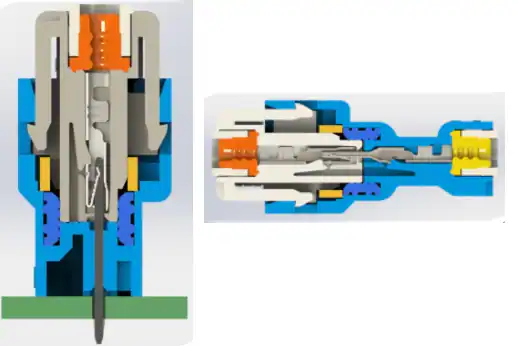

- Waterproof connectors (IP67/IP68) for outdoor use.
- Automotive plugs (SAE J1128 for car batteries).
2. Common Uses of Connector Plugs
- Residential: Charging devices, home theater systems, kitchen appliances.
- Industrial: Machinery power supply, robotics, HVAC systems.
- Outdoor: Solar panels, garden lighting, marine equipment.
3. How to Choose the Right Connector Plug
- Voltage & Current Rating: Match plug specifications to your device (e.g., 120V/15A vs. 240V/30A).
- Environment: Indoor vs. outdoor (waterproof/dustproof ratings).
- Compatibility: Check connector standards (e.g., NEMA vs. IEC).
4. Key Features to Consider When Buying
| Feature | Why It Matters |
|---|---|
| Durability | Look for reinforced shells (e.g., nylon or thermoplastic). |
| Certifications | UL, CE, or RoHS compliance ensures safety. |
| Ease of Use | Tool-free assembly or color-coded wiring. |
5. Safety Tips for Using Connector Plugs
- Avoid Overloading: Never exceed the plug’s rated current.
- Inspect Regularly: Check for frayed wires or loose connections.
- Childproofing: Use tamper-resistant (TR) outlets in homes with kids.
6. Maintenance and Care
- Clean contacts with isopropyl alcohol to prevent corrosion.
- Store unused plugs in dry, dust-free containers.
- Replace worn-out plugs immediately.
7. Connector Plug Brands to Consider
- Industrial Grade: Molex, TE Connectivity, Amphenol.
- Consumer Focused: Legrand, Hubbell, Belkin.
- Budget-Friendly: Amazon Basics, Cable Matters.
8. FAQs About Connector Plugs
Q: Can I use a European plug in the US?
A: Only with a voltage converter and adapter, as EU plugs operate at 220-240V.
Q: Are gold-plated connectors worth it?
A: Yes—gold reduces corrosion and improves signal integrity in audiovisual setups.
9. Conclusion and Final Thoughts
Choosing the right connector plug is about balancing functionality, safety, and budget. Always prioritize certified products and follow safety guidelines to avoid hazards. Whether you’re wiring a home theater or powering industrial equipment, this guide ensures you’re plugged into success!
