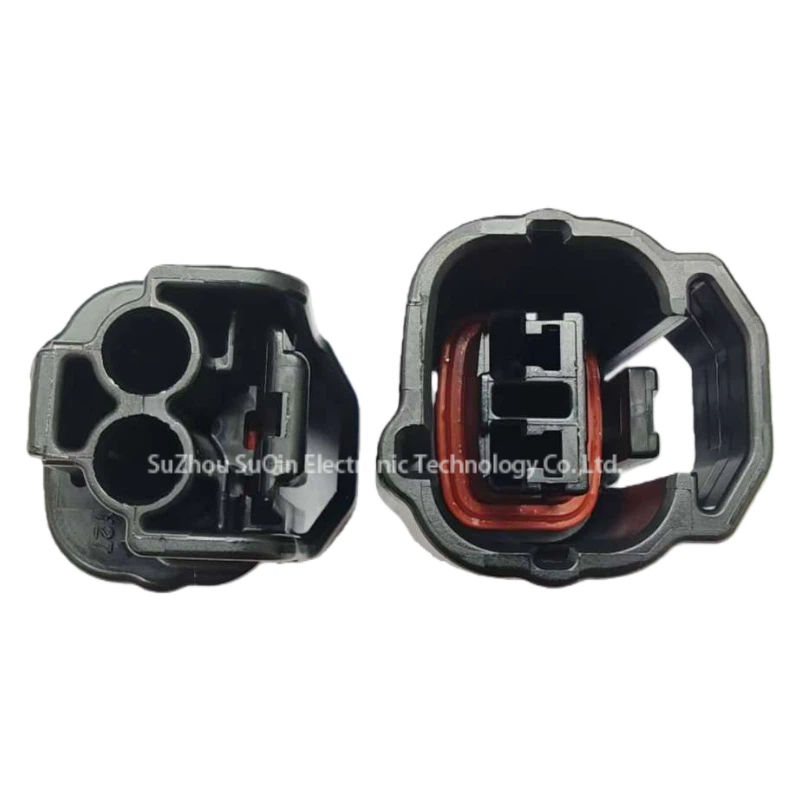

Sumitomo 6189-0552 HX 090 Series 2-Way Sealed Female Socket | 22A High Current
Short Description:
- Brand: Aftermarket Sumitomo
- Part Number: 6189-0552 (HX9-PCS2FAY-B1)
- Series: HX 090 Sealed Series
- Number of Ways: 2 Positions (1 Row)
- Contact Size: 2.3mm (.090)
- Current Rating: 22A

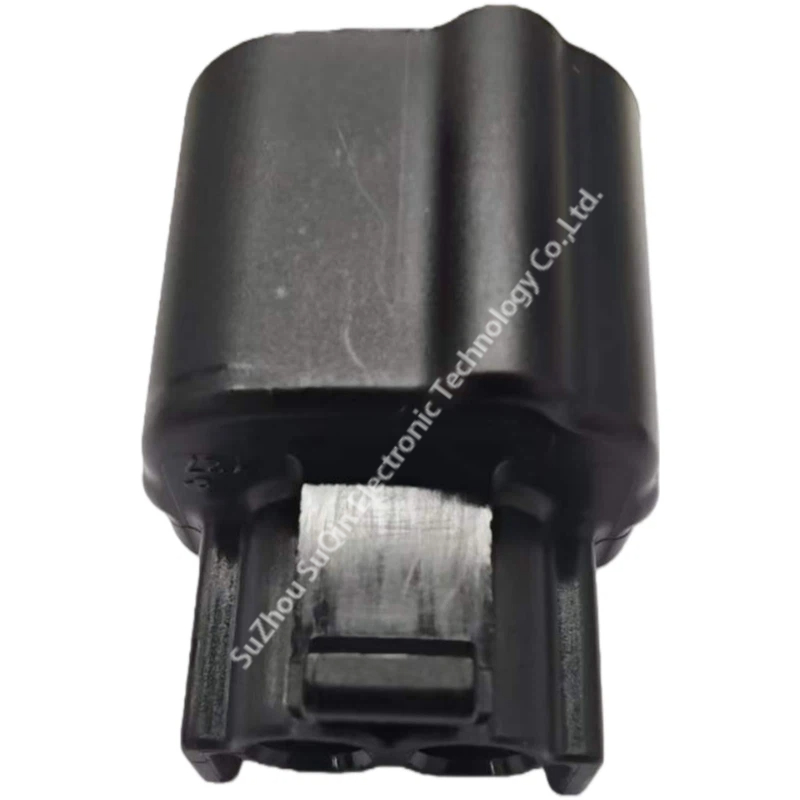

- Sealing: Single Wire Sealed (Silicone Rubber)
- Material: High-grade PBT
- Special Feature: TPA (Terminal Position Assurance) Included
Product Detail
Product Tags
Shop Sumitomo 6189-0552 (HX9-PCS2FAY-B1). A 2-way HX 090 sealed female socket housing with a 22A current rating. Features PBT housing, Silicone seals, and TPA for superior automotive reliability.
| Attribute | Specification |
| Manufacturer | Aftermarket Sumitomo |
| OEM Part Number | 6189-0552 |
| Part Name | HX9-PCS2FAY-B1 |
| Number of Positions | 2 Ways (1 Row) |
| Contact Size | 2.3mm (090) |
| Contact Type | Socket, flat (Female) |
| Current Rating | 22 A |
| Pitch | 6.0 mm |
| Wire Size Range | 0.30 – 2.00 mm² |
| Housing Material | PBT |
| Seal Material | Silicone Rubber |
| Mounting Style | Free hanging |
| Termination Style | Open barrel crimp |
| TPA / CPA | TPA: Yes (Separate) / CPA: No |
Data Overview
Product Details
| Product Features | Engineering Advantages | Customer Benefits |
| HX 090 High-Performance Sealing | Uses premium Silicone Rubber seals for single wire sealing to block moisture and dust ingress. | Extreme Durability: Ensures stable electrical connections in engine bays or chassis areas exposed to salt, water, and debris, preventing circuit oxidation. |
| 22A High Current Capacity | Designed for 2.3mm contact sizes capable of handling up to 22A continuous load. | Versatile Power Delivery: Supports both high-power components and sensitive signal devices, reducing the need for multiple connector types in your system. |
| Separate TPA Mechanism | Includes a separate Terminal Position Assurance (TPA) lock to confirm terminal seating. | Enhanced System Safety: Virtually eliminates terminal “back-out” issues during installation or high-vibration operation, drastically reducing maintenance downtime. |
| PBT Housing Construction | Built from Polybutylene Terephthalate (PBT) for superior chemical and heat resistance. | Long-Term Reliability: Resists automotive fluids and extreme temperatures, ensuring the connector housing remains structurally sound throughout the vehicle’s lifespan. |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.
Q1: What is the benefit of the “Separate TPA” item included with the 6189-0552?
A: The TPA (Terminal Position Assurance) is a secondary lock that is inserted after the terminals are crimped and seated. It ensures that if a terminal isn’t fully inserted, the lock won’t close, preventing intermittent connections or field failures caused by terminal back-out.
Q2: Can the 6189-0552 handle high-vibration engine environments?
A: Yes. The combination of PBT housing material and silicone rubber seals makes it highly resistant to the vibrations, heat, and fluids typically found in automotive engine and chassis applications.
Q3: Which terminals should I use with this HX series housing?
A: This housing is designed for 2.3mm (.090) flat socket terminals. It supports wire sizes ranging from 0.30 to 2.00 mm², making it compatible with a wide range of automotive wire gauges for power and signal distribution.
