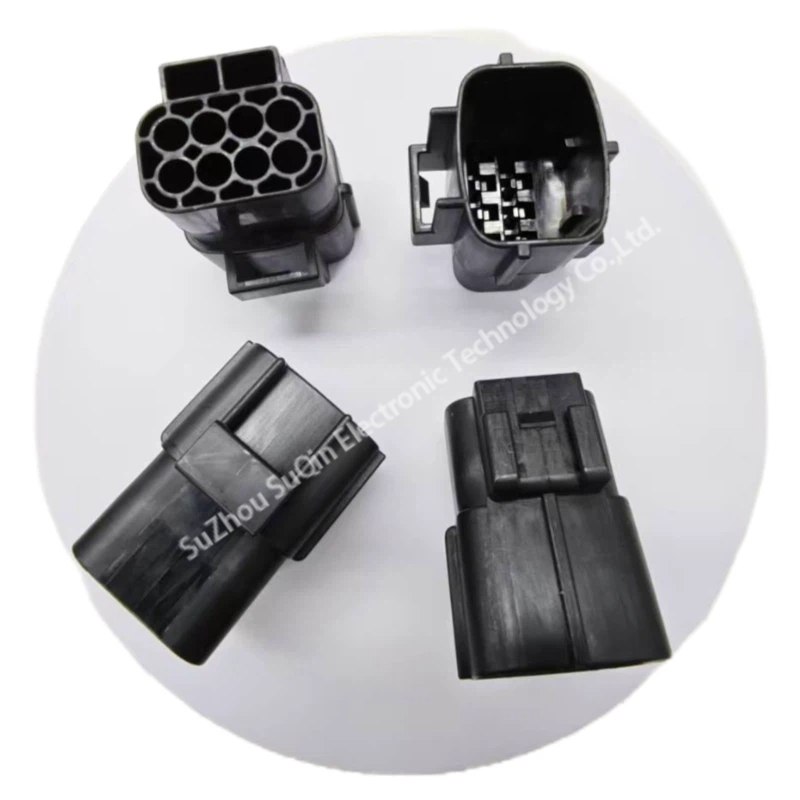

TE Connectivity 174984-2 | 8 Pin Male Automotive Connector Housing | Black

Short Description:

Manufacturer: TE Connectivity (AMP)
Part Number: 174984-2
Positions: 8 Pin (Dual Row)
Gender: Male Housing (Plug)
Pitch (Centerline): 4.8 mm
Current Rating: 18.5A Max (High Power Capacity)
Mating Tab Width: 1.8 mm
Material: Black PBT (Polybutylene Terephthalate)
Mounting: Cable Mount / Free-Hanging
Flammability: UL 94V-2 Rated

Product Detail

Product Tags

Shop original TE Connectivity 174984-2 8-position black automotive housings for male terminals. Rated for 18.5A and 12V DC. Ideal for wire-to-wire power applications in vehicle harnesses.

Data Overview

Attribute Category	Technical Specification
Brand	TE Connectivity / AMP
Model / PN	174984-2
Number of Positions	8
Number of Rows	2
Pitch (Centerline)	4.8 mm
Connector System	Wire-to-Wire
Housing Color	Black
Mating Tab Width	1.8 mm
Max Current Rating	18.5 A
Nominal Voltage	12 VDC
Operating Temperature	-30°C to +105°C
Flammability Rating	UL 94V-2
Housing Material	PBT

Product Details

Material & Engineering Precision	Operational Performance & Integrity	System Efficiency & Strategic Value
High-Grade Black PBT Housing	Engineered with glass-filled PBT for superior dimensional stability and chemical resistance to automotive fluids.	Long-Term Reliability: Prevents housing deformation and material degradation under engine bay thermal stress, ensuring circuit safety.
Polarizing Rib & Alignment Keys	Features physical keying structures that prevent incorrect orientation during the mating process.	Error-Proof Assembly: Eliminates mis-mating risks on the production line, significantly reducing assembly time and potential electrical shorts.
1.8mm Tab Terminal Compatibility	Specifically designed to house 1.8mm male tabs, supporting currents up to 18.5A.	High Power Distribution: Provides a stable interface for medium-to-high power circuits, such as automotive lighting, windows, and dashboard modules.
Compact Dual-Row 8-Pin Layout	Optimized 4.8mm pitch design that balances high-density wiring with sufficient electrical isolation.	Space Optimization: Ideal for modern vehicle architectures where space is at a premium, allowing for streamlined wire-to-wire harness routing.

Our advantage

● Brand supply diversification,
Convenient one-stop shopping

● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.

● Complete information, fast delivery
Reduce intermediate links

● Good after-sales service
Quick response, professional reply

● Original genuine guarantee
Support professional consultation

● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

Q1: Which terminals are recommended for use with the 174984-2 housing?

A: This housing is designed for 1.8mm (.071 in) tab terminals. We recommend using the matching TE Multilock series male terminals to ensure optimal 18.5A current performance and secure retention within the housing.

Q2: Is the 174984-2 a waterproof/sealed connector?

A: No, the 174984-2 is an unsealed (non-waterproof) connector. It is best suited for interior vehicle applications or protected areas like the cabin, dashboard, or within sealed enclosures where direct exposure to moisture is not expected.

Q3: Can this connector handle 24V systems?

A: While the nominal voltage listed is 12V, its PBT insulation and dielectric strength are capable of handling typical low-voltage DC applications up to 24V or 48V, provided the current does not exceed the 18.5A limit per contact
