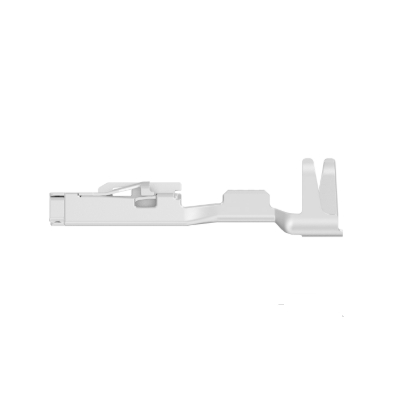

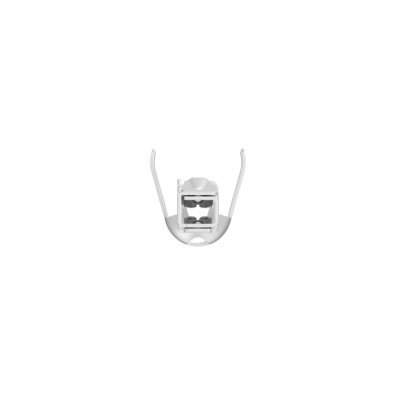

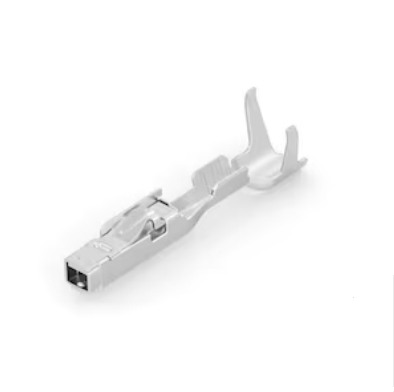

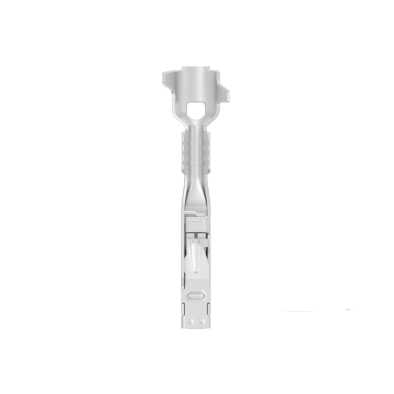

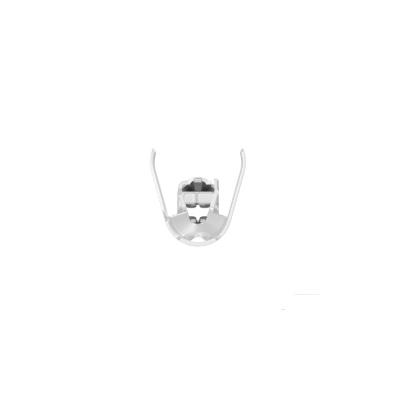

TE Connectivity / AMP 7-1452665-3 :Receptacle Terminal, 23 – 22 AWG, .25 – .35 mm² Wire

Short Description:

Manufacturer: TE Connectivity
Part Number: 7-1452665-3
Series: MCON 1.2 Sealed
Number of Positions: 2 Position
Gender: Female (Receptacle Housing)
Terminal Size: 1.2 mm
Color: Black
Locking Feature: Integrated Secondary Locking (Retainer)
Material: PA66 GF30 (Glass Filled)
Operating Temp: -40°C to +125°C
Application: Automotive Sensors, Solenoids, and Actuators.

Product Detail

Product Tags

Shop TE Connectivity 7-1452665-3. A 2-position MCON 1.2 series sealed female connector housing. Black, PA66-GF30 material, IP rated for automotive sensor and actuator applications.

Data Overview

Attribute Category	Technical Specification
Brand	TE Connectivity
Model	7-1452665-3
Connector System	Wire-to-Board / Wire-to-Device
Centerline (Pitch)	4.00 mm
Sealable	Yes (Sealed System)
Number of Rows	1
Body Material	PBT-GF30 / PA66-GF30
Service Temperature	-40°C to +125°C [-40°F to 257°F]
Voltage Rating	12 V / 24 V DC Systems
Primary Locking	Locking Latch
Secondary Locking	Yes (Retainer)

Product Details

Engineering Features & Specs	Technical & Assembly Advantages	Strategic Business Benefits
Integrated Secondary Locking	Ensures all terminals are perfectly seated and prevents them from backing out under stress.	Zero-Defect Assembly: Minimizes human error during wire harness production, reducing costly rework and improving quality pass rates.
High-Temp PA66 GF30 Housing	Glass-reinforced nylon provides superior thermal stability and structural rigidity.	Engine-Bay Reliability: Maintains mechanical integrity even at 125°C, ensuring your equipment stays connected in the harshest thermal environments.
Advanced Sealing Compatibility	Specifically designed for use with MCON 1.2 single-wire seals (SWS).	Superior Ingress Protection: Achieves high IP ratings against water and dust, protecting sensitive low-voltage signals from moisture-induced short circuits.
Ergonomic Locking Latch	Features a positive-click tactile feedback during the mating process.	Faster Field Servicing: Audible and tactile confirmation of a secure connection speeds up maintenance and prevents incomplete mating issues.

Our advantage

● Brand supply diversification,
Convenient one-stop shopping

● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.

● Complete information, fast delivery
Reduce intermediate links

● Good after-sales service
Quick response, professional reply

● Original genuine guarantee
Support professional consultation

● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

Q1: What terminals and seals are compatible with 7-1452665-3?

A: This housing is designed for MCON 1.2 series female terminals (e.g., 1452668 or 1452665 variants). To maintain the waterproof rating, you must also use compatible Single Wire Seals (SWS) based on your wire insulation diameter.

Q2: Is the secondary lock (retainer) pre-installed?

A: Yes, the secondary lock comes integrated into the housing. After inserting the terminals, the retainer should be pushed into the final locking position to ensure the terminals are mechanically secured.

Q3: Can this connector handle engine-room vibrations?

A: Absolutely. The MCON 1.2 series is specifically engineered for high-vibration automotive environments, featuring a robust locking system and material properties that prevent fretting corrosion and accidental disconnection.
