1379659-5 | TE TH/.025 Series 8-Pin Automotive Receptacle Housing

Short Description:

Manufacturer: TE Connectivity / AMP
Part Number: 1379659-5
Alias Name: 8W PLUG HOUSING ASSY NATU
Connector System: TH/.025 Connector System
Number of Positions: 8 Positions
Number of Rows: 2 Rows
Connector & Housing Type: Housing for Female Terminals (Receptacle)
Centerline (Pitch): 2.2 mm (.087 in)
Terminal Position Assurance (TPA): Yes (Integrated)
Primary Locking Feature: Locking Lance
Primary Product Color: Natural (White)

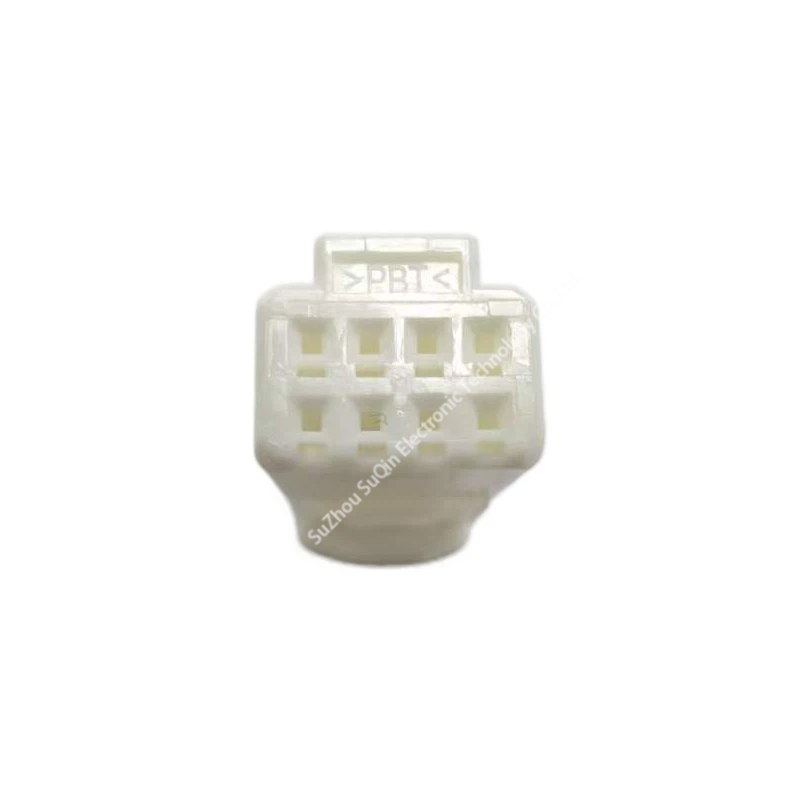

Housing Material: Polybutylene Terephthalate (PBT)
Nominal Voltage Architecture: 12 V
Operating Voltage: 16 VDC
Contact Size / Mating Tab Width: 0.64 mm (.025 in)
Operating Temperature Range: -40°C to 100°C (-40°F to 212°F)
Connector System Class: Wire-to-Board | Wire-to-Wire

Product Detail

Product Tags

Source genuine TE Connectivity 1379659-5 8-position automotive receptacle housings at Suzhou Suqin. Features compact 2.2mm pitch, integrated TPA mechanism, and premium PBT body for reliable 12V signal lines.

Data Overview

Attribute Category	Technical Specifications
Brand	TE Connectivity / AMP
Part Number (PN)	1379659-5
Connector Description	8W PLUG HOUSING ASSY NATU
Connector & Housing Type	Housing for Female Terminals (Receptacle)
Connector Shape	Rectangular

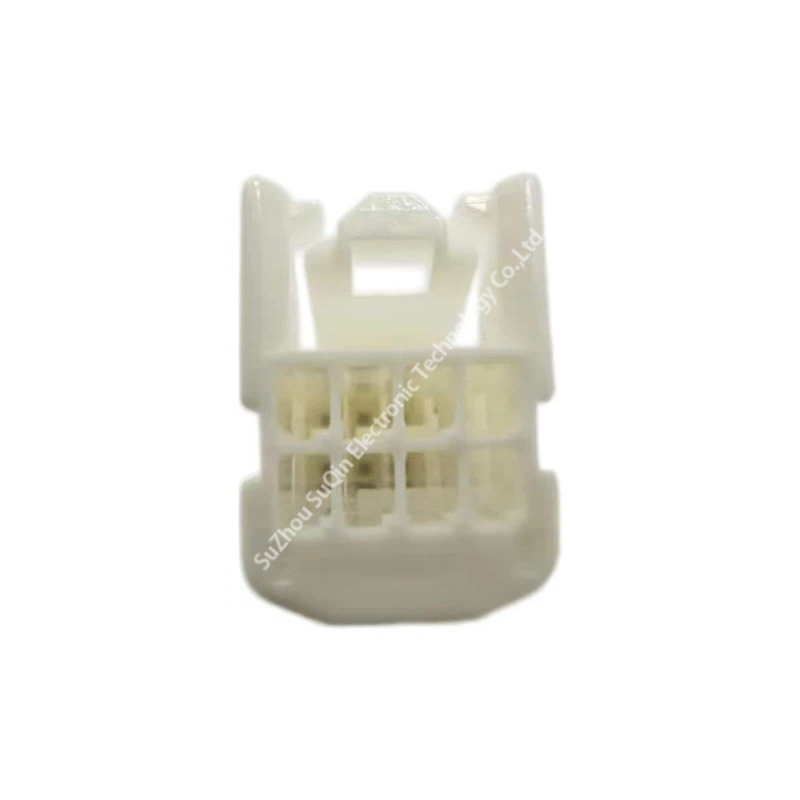

Number of Positions	8
Number of Rows	2
Sealable	No
Connector & Keying Code	Neutral
Mating Alignment Type	Keyed
Terminal Position Assurance (TPA)	Yes
Primary Locking Feature	Locking Lance
Connector System	Wire-to-Board / Wire-to-Wire
Primary Product Color	Natural (White)
Contact Size / Mating Tab Width	0.64 mm (.025 in)
Contact Current Rating (Max)	4 A
Operating Voltage (Max)	16 VDC
Nominal Voltage Architecture	12 V
Housing Material	Polybutylene Terephthalate (PBT)
Centerline (Pitch)	2.2 mm (.087 in)
Row-to-Row Spacing	3.0 mm (.118 in)
Cable Exit Angle	180° (Straight Exit)
Dimensions (L x W x H)	13.0 mm x 21.0 mm x 15.8 mm
Operating Temperature Range	-40°C to 100°C (-40°F to 212°F)
UL Flammability Rating	UL 94HB
Packaging Configuration	Bag / 100 Pcs per Bag

Product Details

Dual-Row Space-Saving 2.2mm Centerline	Integrated Terminal Position Assurance	Toughened PBT Housing Material
Feature: Designed with an ultra-fine 2.2mm pitch layout hosting 8 positions across 2 synchronized rows.	Feature: Pre-equipped with a secondary Terminal Position Assurance (TPA) locking latch mechanism.	Feature: Molded from high-grade, premium Polybutylene Terephthalate (PBT) thermoplastic polymer.
Advantage: Drastically condenses the physical envelope size compared to conventional larger automotive connector lines.	Advantage: Forcibly detects incomplete pin backouts, preventing the final housing latch from securing if terminal pins shift.	Advantage: Exhibits exceptional structural stiffness, chemical fluid immunity, and stable insulation safety.
Benefit: Empowers electronic engineers to route high-density 12V signal systems in tightly restricted dashboard spaces.	Benefit: Mitigates vehicle warranty claims stemming from terminal displacement or signal loss caused by continuous road vibration.	Benefit: Guarantees a robust service lifetime from -40°C to 100°C, ensuring uninterrupted signal continuity.

ient one-stop shopping

● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.

● Complete information, fast delivery
Reduce intermediate links

● Good after-sales service
Quick response, professional reply

● Original genuine guarantee
Support professional consultation

● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

Q1: What terminal series should I order to complete the assembly with the 1379659-5 housing?

A: The 1379659-5 housing belongs to the TE TH/.025 connector system. You will need to select matching female crimp receptacle terminals with a 0.64mm (.025 in) tab width. These contacts are not included with the housing body and should be ordered separately according to your wire gauge.

Q2: Is the TE 1379659-5 connector waterproof for under-hood use?

A: No, the 1379659-5 is an unsealed automotive receptacle housing (Sealable: No). It is highly optimized for interior vehicle applications, such as cabin dashboards, instrument clusters, infotainment panels, and body electronics, where direct exposure to water or engine oil is not expected.

Q3: How does the integrated Terminal Position Assurance (TPA) function during assembly?

A: The integrated TPA acts as a secondary lock safeguard. Once your 0.64mm female terminals are crimped and pushed into place, the TPA clip can be depressed into its final locking position. If any terminal pin is improperly seated, the TPA will block, giving operators immediate notice to correct the pin position.
