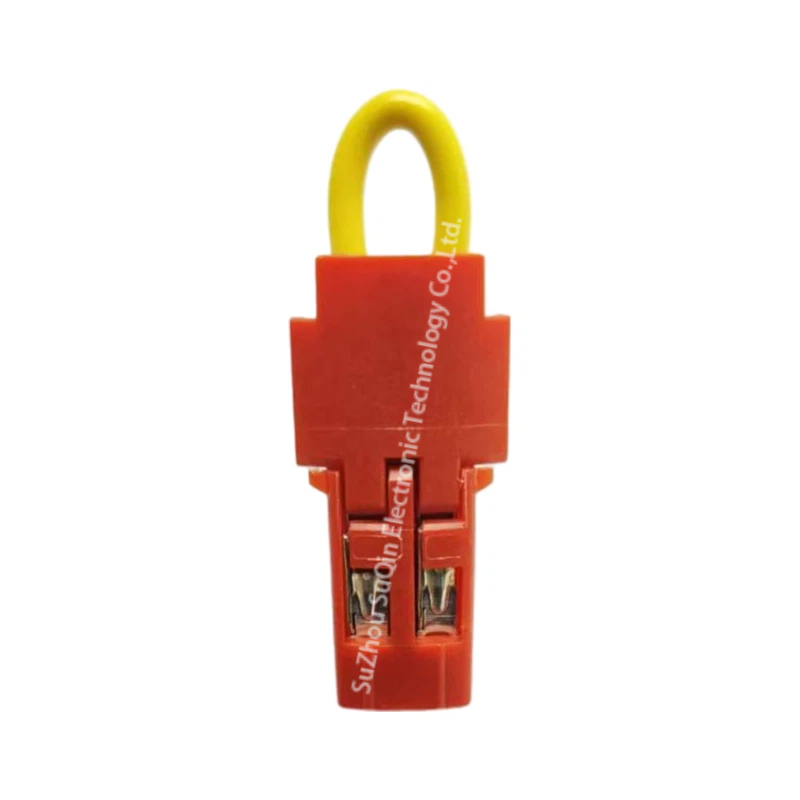

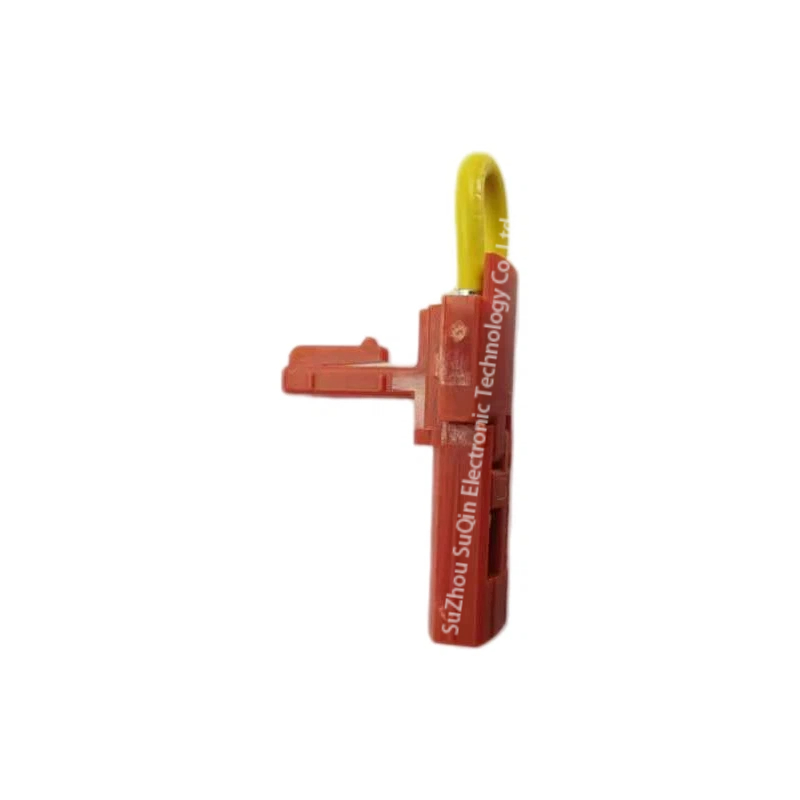

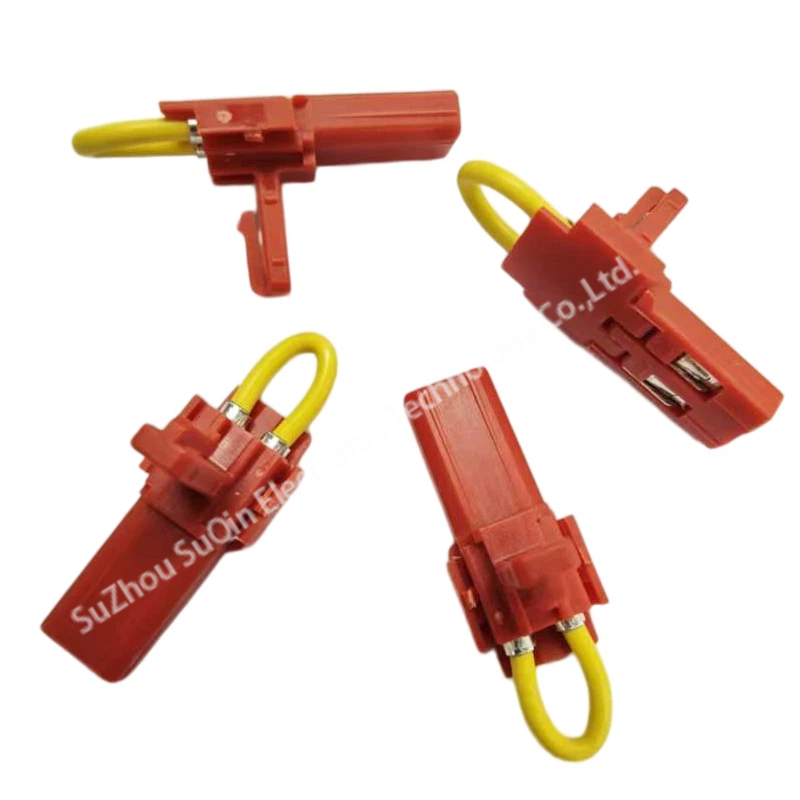

2392567-1 | TE HVA HD400 3-Pin Red TPA Automotive Connector Accessory
Short Description:
-
Manufacturer: TE Connectivity / AMP
-
Part Number: 2392567-1
-
Series / Application: HVA HD400 System
-
Product Type: Automotive Connector Accessory
-
Accessory Type: TPA (Terminal Position Assurance )
-
Number of Positions: 3 Positions
-
Compatible Housing Type: HVA HD400 TPA SOC HSG (Socket Housing)
-
Contact Diameter Compatibility: DIA 4mm
-
Primary Product Color: High-Visibility Red
-
Primary Product Material: PA (Polyamide / Nylon)
-
Operating Temperature Range: -40°C to 140°C (-40°F to 284°F)
-
Part Status: Active
Product Detail
Product Tags
Buy genuine TE Connectivity 2392567-1 HVA HD400 Red TPA accessories at Suzhou Suqin. Designed for 3-position DIA 4mm socket housings, featuring premium PA material and -40°C to 140°C thermal stability.
Data Overview
| Attribute Category | Technical Specifications |
| Brand | TE Connectivity / AMP |
| Part Number (PN) | 2392567-1 |
| Product Category | Automotive Connector Accessories |
| Accessory Type | TPA (Terminal Position Assurance) |
| Associated Series | HVA HD400 |
| Mating Component Style | HVA HD400 TPA SOC HSG (Socket Housing) |
| Number of Positions | 3 Positions |
| Compatible Pin Diameter | DIA 4.0 mm |
| Primary Product Color | Red |
| Primary Product Material | PA (Polyamide / Nylon) |
| Operating Temperature (Min) | -40°C (-40°F) |
| Operating Temperature (Max) | 140°C (284°F) |
| Circuit Application | High Voltage / Power & Signal |
| Part Status | Active |
Product Details
| Dual-Stage Terminal Position Assurance | High-Temperature Polyamide Formulation | High-Visibility Safety Red Layout |
| Feature: Integrated 3-position locking structure designed specifically for DIA 4mm socket housings. | Feature: Molded from specialized PA (Polyamide) compound rated for -40°C to 140°C environments. | Feature: Molded in bright, industry-standard safety Red color for high-voltage circuit contrast. |
| Advantage: Acts as a secondary physical lock that cannot close unless every terminal pin is fully seated. | Advantage: Retains robust structural tension and resists thermal creeping in high-power engine setups. | Advantage: Serves as a clear visual indicator for production operators and assembly field inspectors. |
| Benefit: Prevents field failures from terminal “backouts” or incomplete insertion during rapid line assembly. | Benefit: Ensures uninterrupted signal and power flow under continuous severe automotive heat loads. | Benefit: Accelerates Quality Control sorting and eliminates costly human errors on multi-circuit wire harnesses. |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.
Q1: What is the main engineering function of the TE 2392567-1 Red clip?
A: The 2392567-1 serves as a Terminal Position Assurance (TPA) accessory for the TE HVA HD400 3-position DIA 4mm socket housing system. It ensures that the heavy-duty female contacts are fully inserted and locked into the primary connector housing cavity, preventing contacts from backing out under severe vibration.
Q2: Why is this TPA component colored bright red instead of standard black or white?
A: In high-voltage (HV) electric vehicle and industrial power systems, bright colors like red and orange are explicitly chosen for rapid identification. The high-visibility red housing enables technicians and automated inspection systems to instantly confirm that secondary terminal locks are present and fully engaged.
Q3: Can the 2392567-1 withstand high-temperature environments inside powertrain modules?
A: Yes, absolutely. It is injection-molded from premium, structurally stable Polyamide (PA) material, which provides an extensive operating temperature range of -40°C up to 140°C (-40°F to 284°F). This guarantees reliable locking performance even near automotive engine blocks or electric drive systems.
