2-2141047-5 | TE Connectivity 6-Pin MQS Mixed Receptacle Housing Code B
Short Description:
-
Brand Manufacturer: TE Connectivity / AMP
-
MPN (Part Number): 2-2141047-5
-
Product Series: Micro Quadlok System (MQS) Series
-
Connector Configuration: Housing Shell for Female Terminals (Receptacle)
-
Total Circuit Positions: 6 Positions (Mixed & Hybrid Layout)
-
Row Architecture: Dual Row (2 Rows Layout)
-
Pitch Spacing Matrix: 2.54mm (0.10 inch) Centerline
-
Automotive Keying Code: Code B / Natural Color
-
Connector System Target: Wire-to-Board / Cable Mount Free-Hanging
-
Circuit Application Range: Hybrid Power & Signal Delivery
-

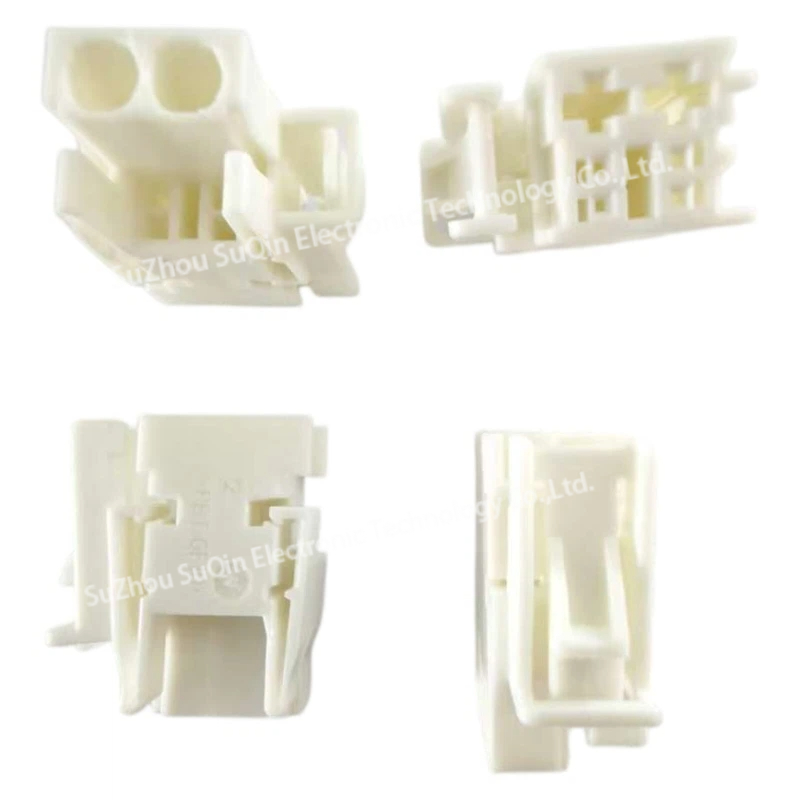

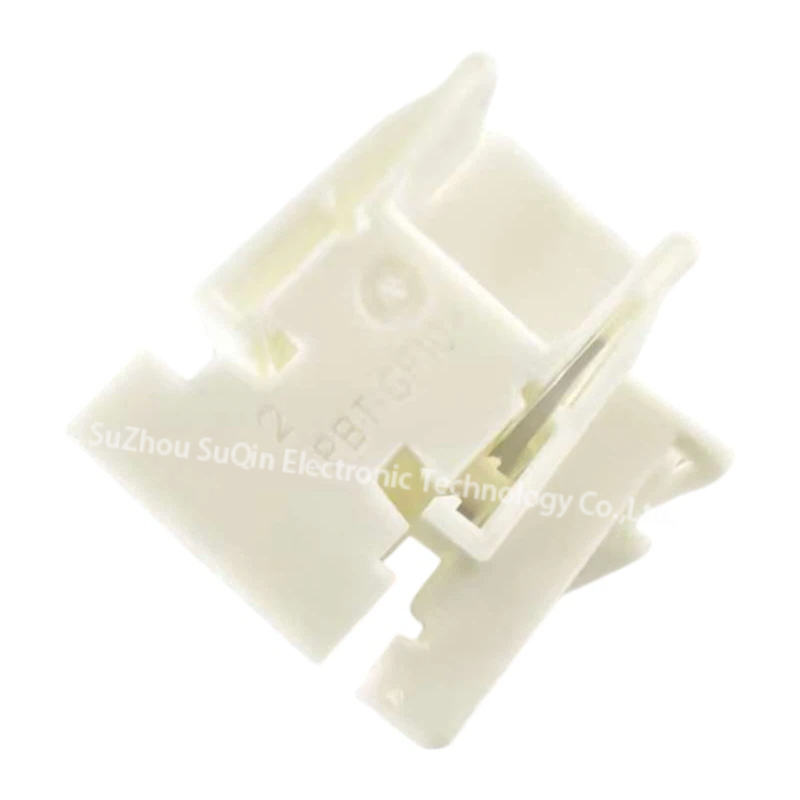

Housing Compound Material: PBT-GF10 (10 Percent Glass Fiber Reinforced Polybutylene Terephthalate)
-
Operating Thermal Envelope: Minus 40 Degrees Celsius to 120 Degrees Celsius
-
Compatible Terminal Types: 0.64mm and 2.8mm Mating Tab Contacts (Sold Separately)
Product Detail
Product Tags
Source genuine TE Connectivity 2-2141047-5 MQS 6-position Code B natural automotive housings for female terminals at Suzhou Suqin. Designed for 12V hybrid power & signal wire-to-board links.
Data Overview
| Technical Parameter Category | Manufacturing & Engineering Specifications |
| Brand | TE Connectivity / AMP |
| Part Number (PN) | 2-2141047-5 |
| Description Text | 6POS MIXED MQS REC COD B |
| Connector System | Wire-to-Board |
| Component Profile Type | Housing for Female Terminals / Receptacle |
| Total Positions | 6 |
| Number of Rows | 2 |
| Centerline Pitch | 2.54mm (0.10 inch) |
| Hybrid Connector | Yes (Mixed MQS Layout) |
| Nominal Voltage Architecture | 12 Volts DC |
| Mating Tab Width Capacity | 0.64mm (0.02 inch) and 2.8mm (0.11 inch) |
| Contact Max Current Rating | 7.5 Amps (for 0.64mm) and 30 Amps (for 2.8mm) |
| Keying & Coding Pattern | Code B |
| Primary Color | Natural |
| Housing Material Grade | PBT-GF10 |
| Dimensions (H x L x W) | 19.6mm x 12.2mm x 26.25mm |
| Row-to-Row Spacing | 5.4mm / 5.5mm |
| Cable Exit Direction | 180 Degrees Straight |
| Operating Temperature Range | -40 Degrees Celsius to 120 Degrees Celsius |
| Industry Compliance Standards | DIN IEC 512 |
| Ingress Protection Level | IPX0 / IPX7 / IPX9K (Dependent on Back-Shell / Sealing Kit Accessories) |
Product Details

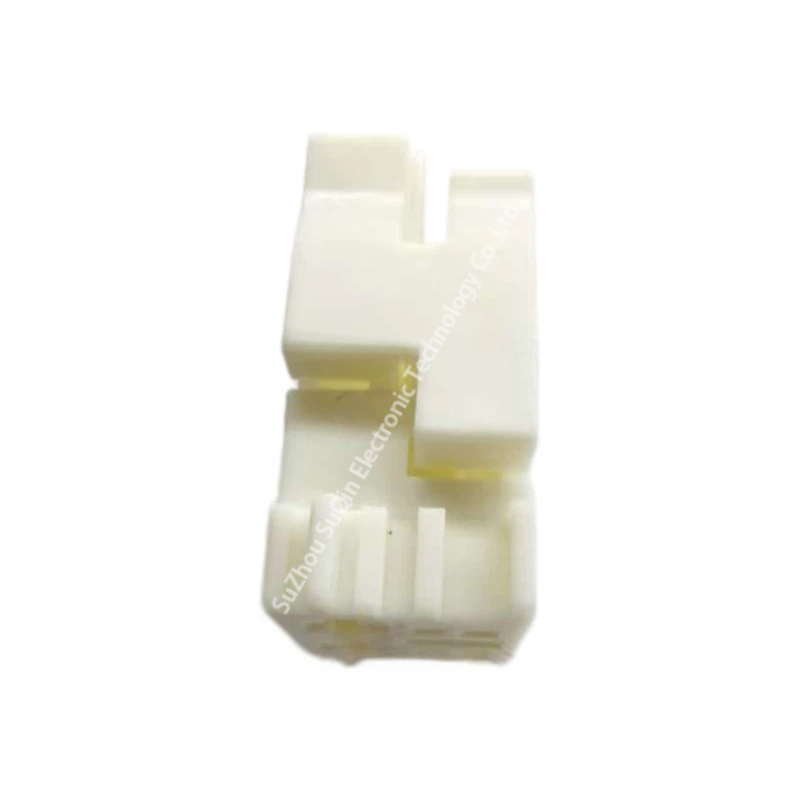

| Dual-Row Hybrid Layout (Power & Signal) | Rigid PBT-GF10 Structural Shell | Integrated Mechanical Code B Keying |
| Feature: Designed with 2 rows accommodating 6 positions supporting mixed terminal sizes of 0.64mm and 2.8mm. | Feature: Molded out of 10 percent glass fiber reinforced PBT polymer matrix running safely at up to 120 degrees Celsius. | Feature: Molded to precise Code B dimensional constraints finished in a standard neutral natural tone. |
| Advantage: Combines low-current signal lines (7.5A max) and heavy power feeds (30A max) simultaneously into one tiny footprint. | Advantage: Prevents thermal shrinkage, warping, and terminal deflection during long-term operational heat cycles. | Advantage: Eliminates human misalignment mistakes during line routing by rejecting any non-matching headers mechanically. |
| Benefit: Cuts down multi-connector assembly spaces and simplifies multi-circuit cable loom configurations significantly. | Benefit: Guarantees zero signal drift or contact dropouts even when subject to intense engine bay thermal shocks. | Benefit: Dramatically slashes field manufacturing error rates, ensuring high-speed safety on standard assembly lines. |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.
Q1: What exactly does “Mixed & Hybrid” mean for the TE 2-2141047-5 connector layout?

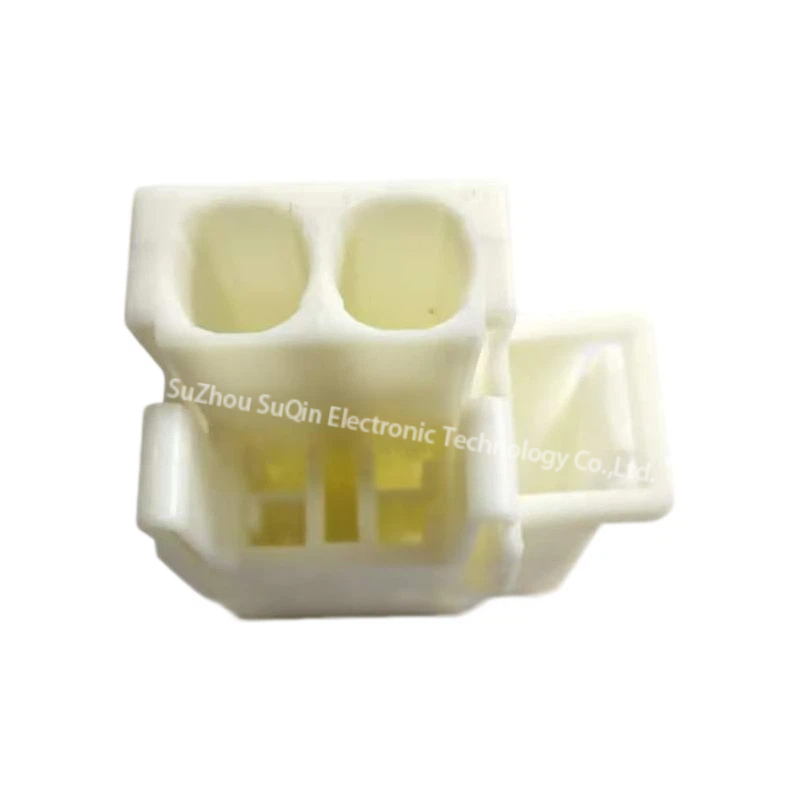

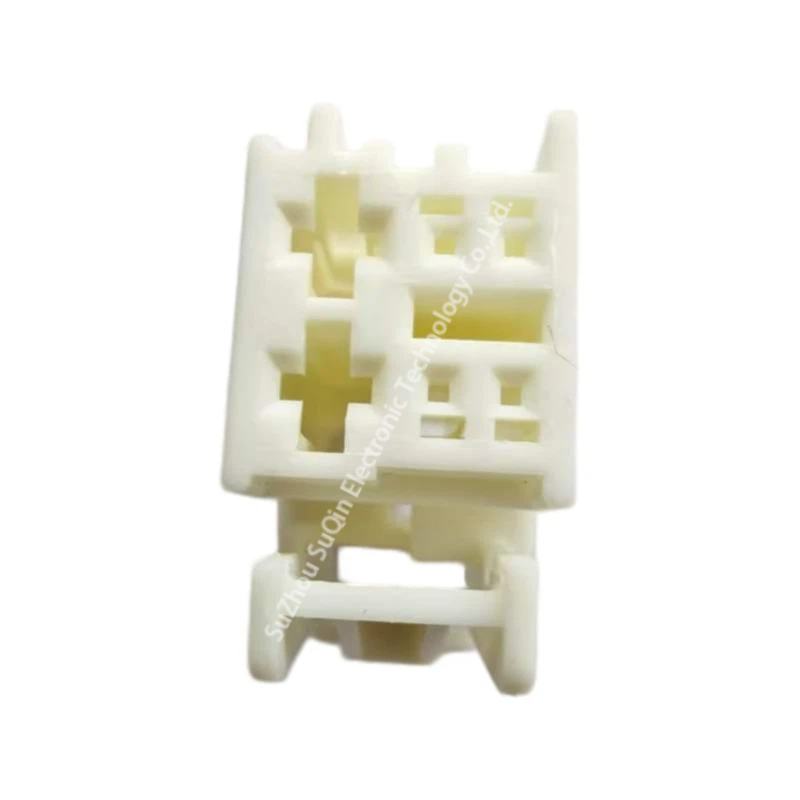

Q1: What exactly does “Mixed & Hybrid” mean for the TE 2-2141047-5 connector layout? A: A hybrid connector means the single housing shell contains chambers for more than one terminal size. For the 2-2141047-5, it integrates small 0.64mm MQS terminal slots alongside larger 2.8mm terminal slots. This allows you to run sensitive, low-current data or signal wires (up to 7.5A) and higher-current power delivery lines (up to 30A) through one single space-saving connector connection rather than managing two separate wire harnesses.
Q2: Does this 2-2141047-5 housing require separate tools or accessories to achieve an IPX7 or IPX9K waterproof rating?
A: The standalone plastic housing itself is rated IPX0 (unsealed, open-air design). However, according to automotive system regulations, it can reach IPX7 immersion or IPX9K high-pressure washdown ratings when it is properly mated inside an officially enclosed sealed header system or matched with a dedicated rubber wire seal and back-shell boot system.
Q3: Can a Code A plug connector mate with this Code B (Natural) 2-2141047-5 housing?
A: No, it cannot. TE Connectivity’s MQS automotive series incorporates rigid physical keying codes to prevent accidental factory misplacements. The Code B configuration features unique guide ribs that will mechanically block a Code A header or plug from latching. Always ensure that the mating board header or wire plug is explicitly designated as a matching MQS Code B interface.
