7282-1064 Yazaki 2.3II+8.0 Series 6-Position Male Hybrid Housing | Suqin
Short Description:
-
Manufacturer & Series: Manufactured by Yazaki under the Hybrid Connector 2.3II+8.0 product family, designated with part number 7282-1064 as an unsealed male wire harness housing.
-
Hybrid Contact Architecture: Configured with a 6-pole mixed layout accommodating dual terminal tab widths of 2.30 mm and 8.00 mm for concurrent signal and power transmission.
-
Material Composition: Injection-molded from natural-colored high-grade Polybutylene Terephthalate (PBT) thermoplastic polymer resin.
-
Mechanical Integration: Equipped with an integrated clip installation structural channel to facilitate chassis or bracket mounting configurations.
-
Physical Envelope: Features compact outer dimensions measuring 46.80 mm in length, 27.60 mm in width, and 25.60 mm in height.
Product Detail
Product Tags
Factory-original Yazaki 2.3II+8.0 Series 7282-1064 6-position unsealed male hybrid housing. Features PBT construction, integrated clip installation structure, and dual 2.30mm/8.00mm tab sizes. Available via Suzhou Suqin.
Data Overview
| Parameter | Technical Specification |
| Manufacturer | Yazaki |
| Part Number | 7282-1064 |
| Mating Female Housing | 7283-1044 |
| Family | Hybrid Connector 2.3II+8.0 |
| Connection Type | Wire Harness Connector |
| Unsealed / Sealed | Unsealed |
| Male / Female | Male |
| Number of Poles (Positions) | 6 |
| Tab Sizes | 2.30 mm / 8.00 mm |
| Housing Material | PBT (Polybutylene Terephthalate) |
| Housing Color | Natural |
| Plating | Unplated |
| Hybrid Configuration | Yes |
| Clip Installation Structure | Yes |
| Product Length | 46.80 mm |
| Product Width | 27.60 mm |
| Product Height | 25.60 mm |
| Application | Automotive & Industrial Wire Harness |
Product Details
| Mechanical Structure & Mounting | Hybrid Contact Configuration | Material Properties & Environment |
| 6-Pole Male Housing with Clip Mount Unsealed rectangular male connector shell incorporating an integrated mechanical clip mounting channel. | Mixed 2.30mm & 8.00mm Tabs 6-position non-hybrid row configuration engineered for multi-current power and signal distribution. | Natural PBT Thermopolymer Unplated natural polymer base housing offering structural rigidity and stable electrical isolation. |
| Delivers secure panel or chassis fixation while maintaining high terminal retention forces across all 6 poles. | Facilitates consolidated wire harness architectures by combining different wire gauges into a single interface. | Provides high chemical resistance and thermal dimension stability under standard automotive and industrial environments. |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

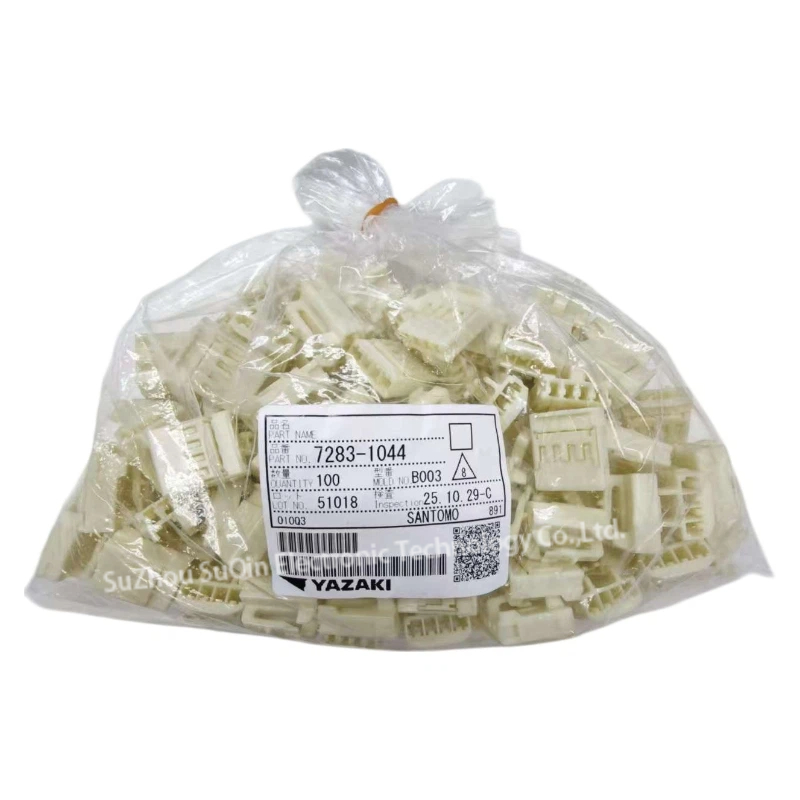

Q1: What is the relationship between part number 7282-1064 and the 7283-1044 part number shown on the packaging?

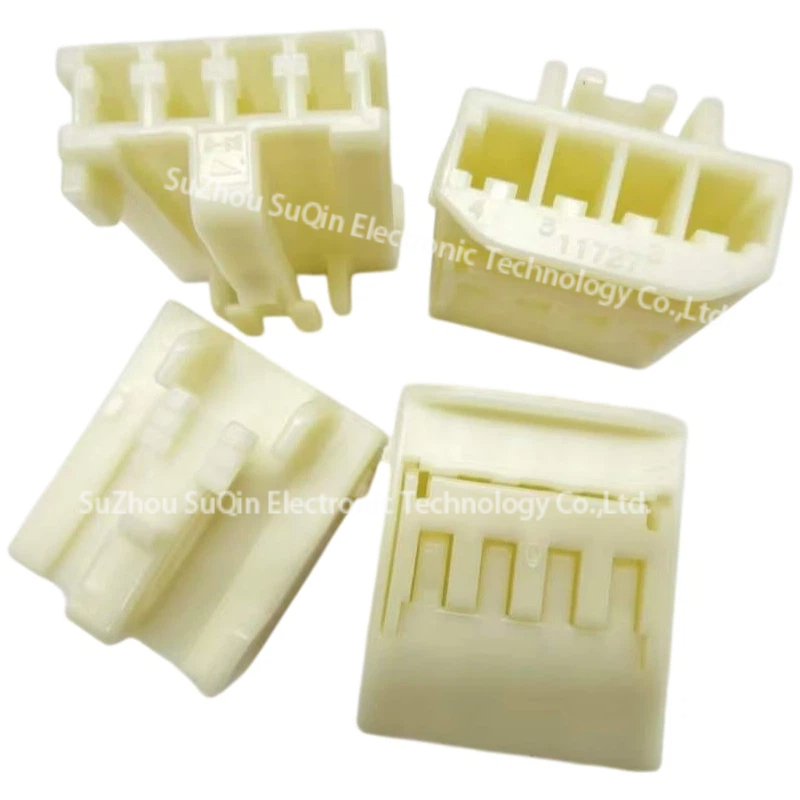

A: Part number 7282-1064 designates the male housing component containing the tab terminals. Part number 7283-1044 is its direct, factory-specified female mating counterpart housing. They connect together to form the complete 6-pole unsealed wire-to-wire assembly.
Q2: What are the exact current-carrying capacities for the 2.3II and 8.0 terminal sizes in this hybrid housing?
A: The hybrid architecture separates signal and high-current power. The smaller 2.3II terminal positions are engineered for low-current signal and control wiring, while the large 8.0 terminal positions accommodate thicker wire gauges to handle high-current power distribution lines within the same harness block.
Q3: Does the 7282-1064 male housing come pre-equipped with a mounting clip?
A: No. The housing features an integrated clip installation structure (molded-in slide tracks). This allows a standard external automotive chassis mounting clip to be slid into place during harness routing, but the specific clip component must be selected and sourced separately based on panel thickness.
