Amphenol AT04-6P-PM05 6-Pin Panel Mount Receptacle Gray | Suqin
Short Description:
-
Manufacturer & Series: Genuine Amphenol SINE Systems AT Series (PanelMate family) receptacle, part number AT04-6P-PM05.
-

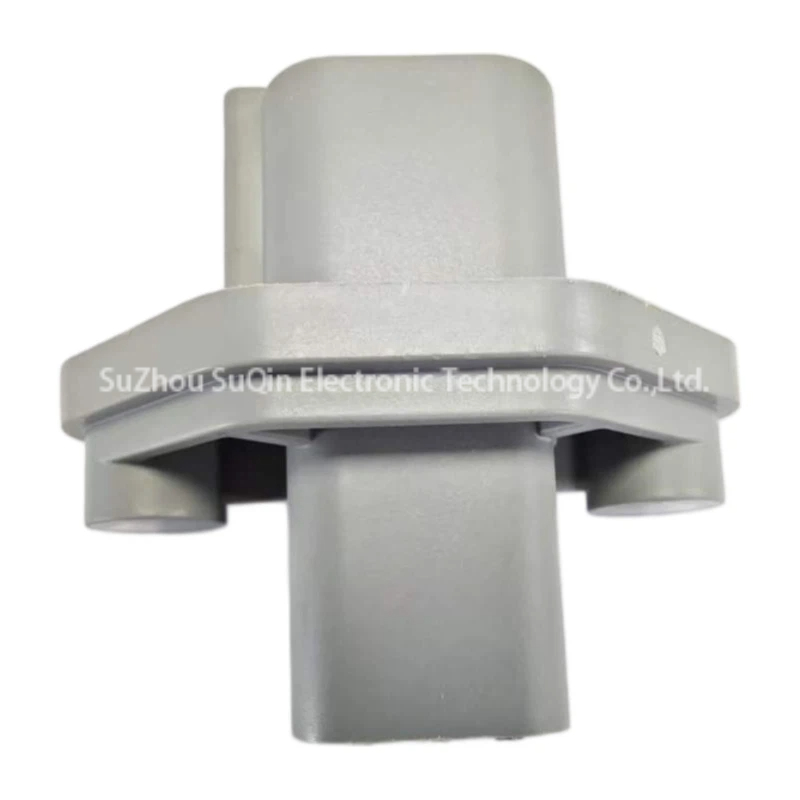

Mounting Configuration: Flange mount receptacle with straight mounting angle, pre-installed environmental gasket, and mechanical threaded inserts.
-
Electrical Parameters: 6 positions arranged in 3 rows; rated for a maximum of 13A per contact with an insulation resistance of 1 GOhms.
-
Material & Environment: Gray thermoplastic (TP) housing engineered for operating temperatures from -55°C to 125°C.
-
Wire Accommodation: Accepts crimp termination for wire sizes ranging from 14 AWG to 20 AWG using size 16 male pin contacts.
Product Detail
Product Tags

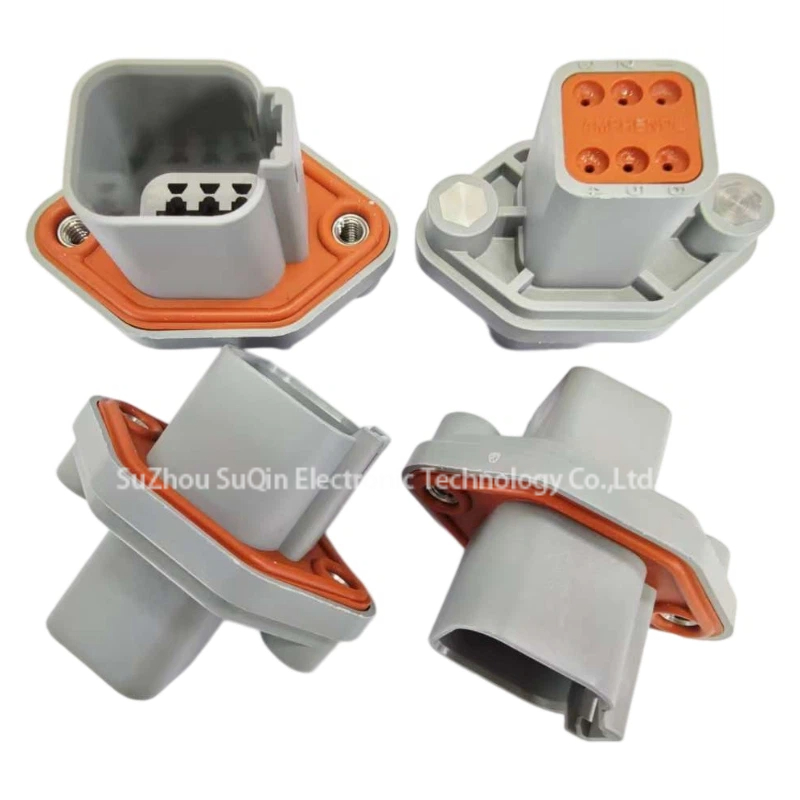

Factory-original Amphenol AT04-6P-PM05 6-position panel mount receptacle from the AT Series PanelMate family. Features integrated flange with gasket and 13A current rating. Available via Suzhou Suqin.
Data Overview
| Parameter | Technical Specification |
| Manufacturer | Amphenol SINE Systems |
| Part Number | AT04-6P-PM05 |
| Series / Tradename | AT Series / PanelMate |
| Number of Positions | 6 Position |
| Number of Rows | 3 Row |
| Gender | Receptacle (Male Housing) |
| Contact Gender | Without Pin Contacts |
| Contact Type | Pin (Size 16) |
| Mounting Style | Mounting Flange (Panel Mount) |
| Mounting Angle | Straight (180 Degree) |
| Current Rating | 13 A |
| Insulation Resistance | 1 GOhms |
| Housing Material | Thermoplastic (TP) |
| Color | Gray |
| Wire Gauge Range | 14 AWG to 20 AWG |
| Operating Temperature | -55°C to 125°C |
| Mating Part Number | AT06-6Sx Plugs |
Product Details
| Mounting & Interface | Electrical Features | Material Specifications |

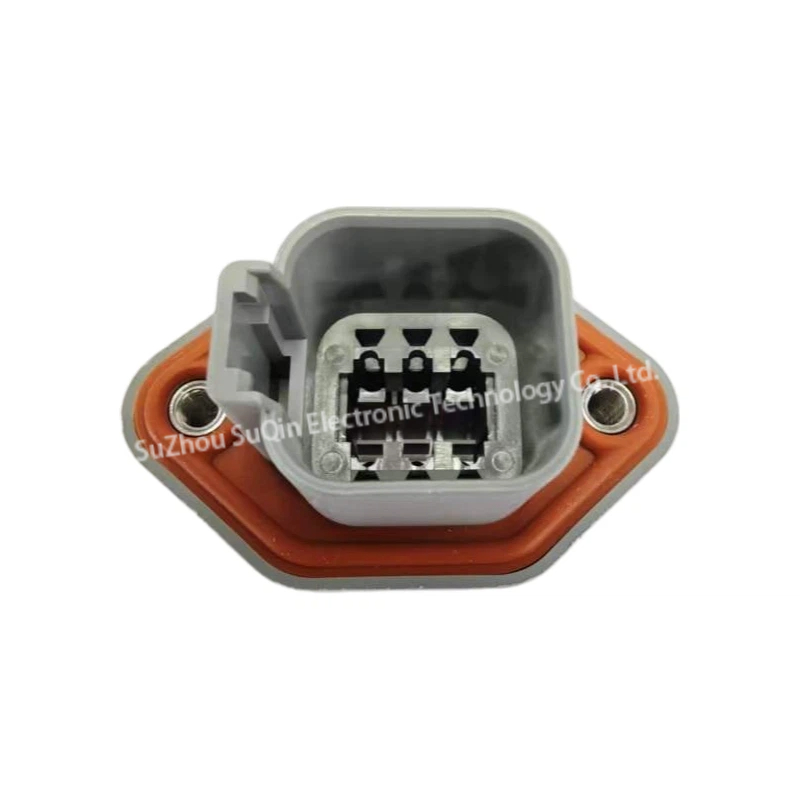

| Flange Mount with Gasket Straight receptacle housing with an integrated environmental perimeter gasket and twin mounting columns. | 6-Pin / 13A Contact Layout 3-row interface supporting 13A maximum continuous current per circuit. | Gray Thermoplastic Housing Molded thermoplastic body rated for stable operation between -55°C and 125°C. |
| Enables secure panel or bulkhead mounting while preventing dust and moisture ingress at the attachment point. | Engineered for low-voltage signal and power distribution in automotive and industrial control systems. | Confirms to standard AT Series mechanical specifications for dimensional stability. |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.
Q1: Which companion plug connector models mate with the AT04-6P-PM05 receptacle?
A: This receptacle is designed to mate with standard Amphenol AT Series 6-way plugs, specifically the AT06-6S series (including sub-variants such as AT06-6S-SR01).
Q2: What features does the “PM05” modification code specify?

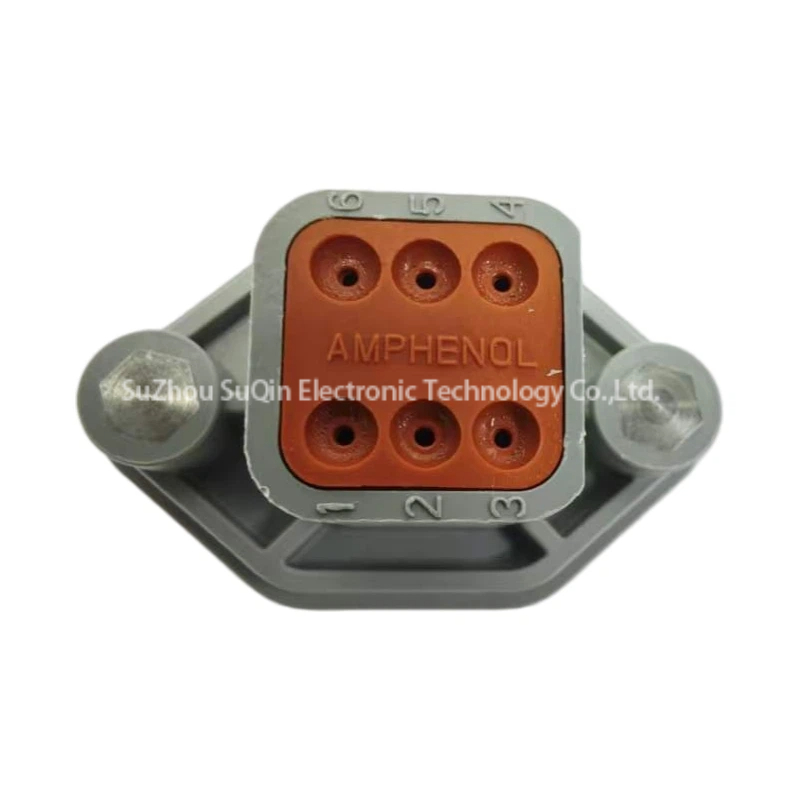

A: The PM05 suffix designates the PanelMate configuration. This variant includes an integrated mounting flange on the housing body, a pre-installed rear environmental gasket, and integrated metal threaded inserts for panel attachment.
Q3: Are the terminal pins supplied with this connector housing?
A: No. The AT04-6P-PM05 is supplied as a housing only without contacts. Pin contacts must be specified and ordered separately based on the target wire gauge (14 AWG to 20 AWG) and plating preference.
