Amphenol PL182Y-61-4 EV Connector 2-Way 60A 1kVDC Plug | Suqin
Short Description:
-

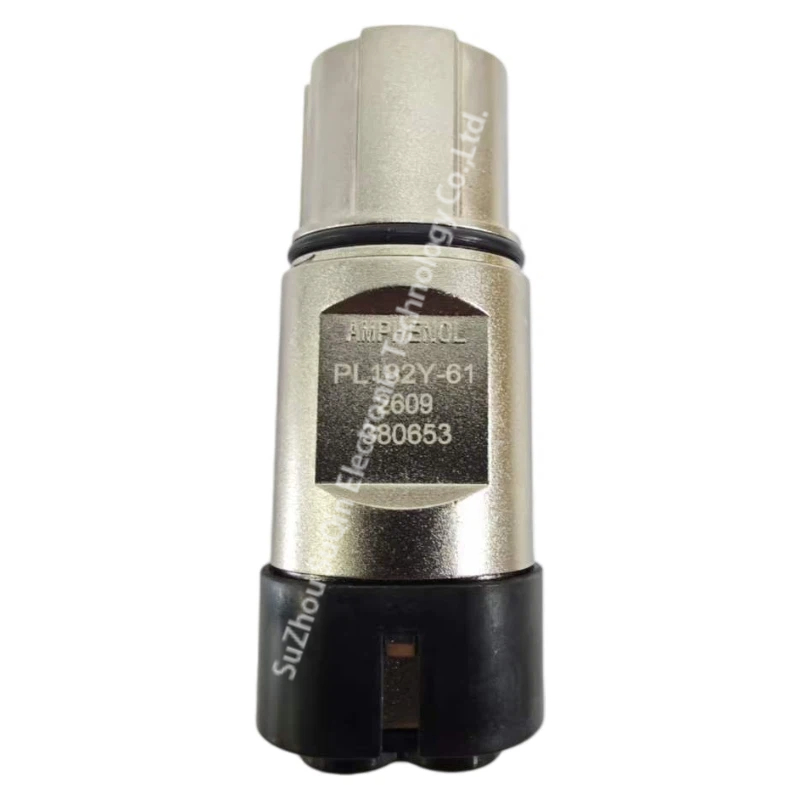

Manufacturer Identifiers: Manufactured by Amphenol Technical Products under Mfr. #: PL182Y-61-4, MFG Part Number: EX-HA004282, and Part # Alias: 282152.
-
Electrical Capacity: Designed for high-voltage e-mobility systems, rated for continuous 60 A current transmission and up to 1 kVDC operational voltage.
-
Contact Technology: Utilizes Amphenol RADSOK 4.0mm socket technology to deliver low contact resistance and high reliability in high-amperage power distribution.
-

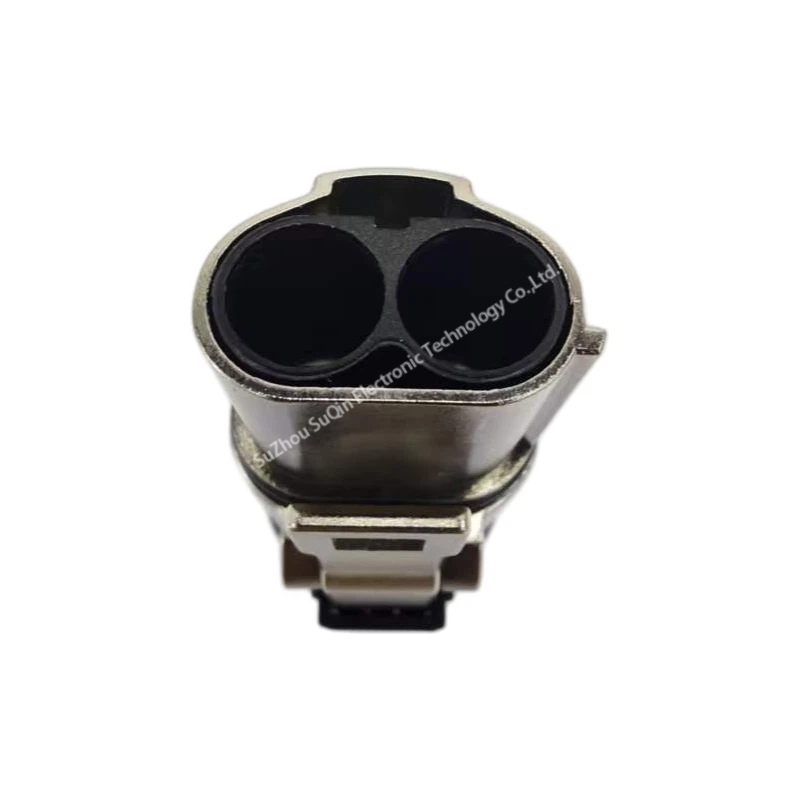

Mechanical Polarization & Orientation: Configured as a 2-position straight plug featuring mechanical Keying Code “Y” to prevent cross-mating in multi-connector EV power harnesses.
-

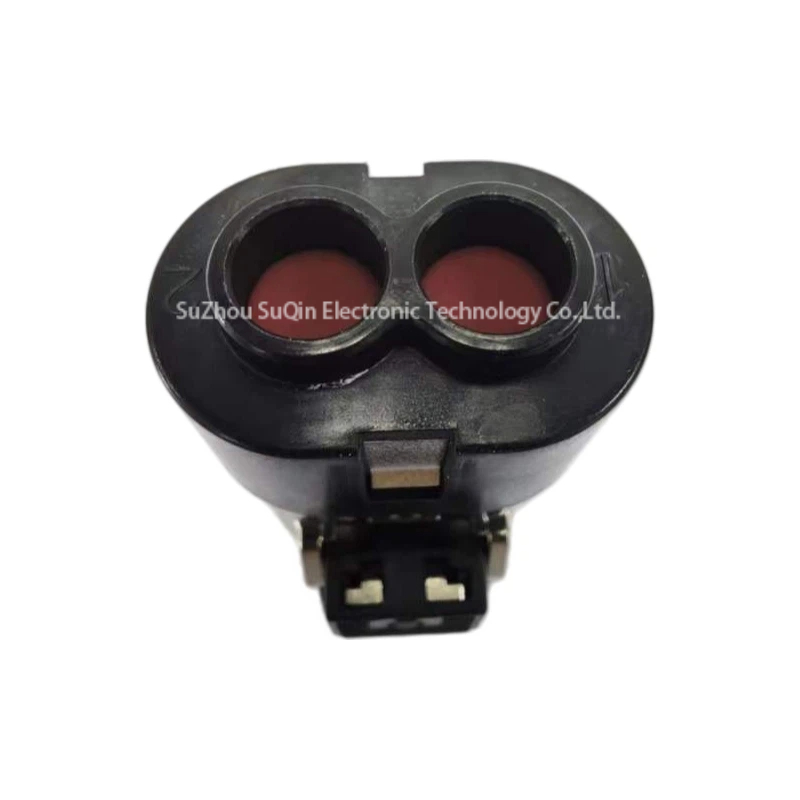

Cable & Sealing Compliance: Compatible with max 12 AWG (4 mm²) stranded conductors using crimp termination, certified to IP67 environmental ingress protection.
Product Detail
Product Tags

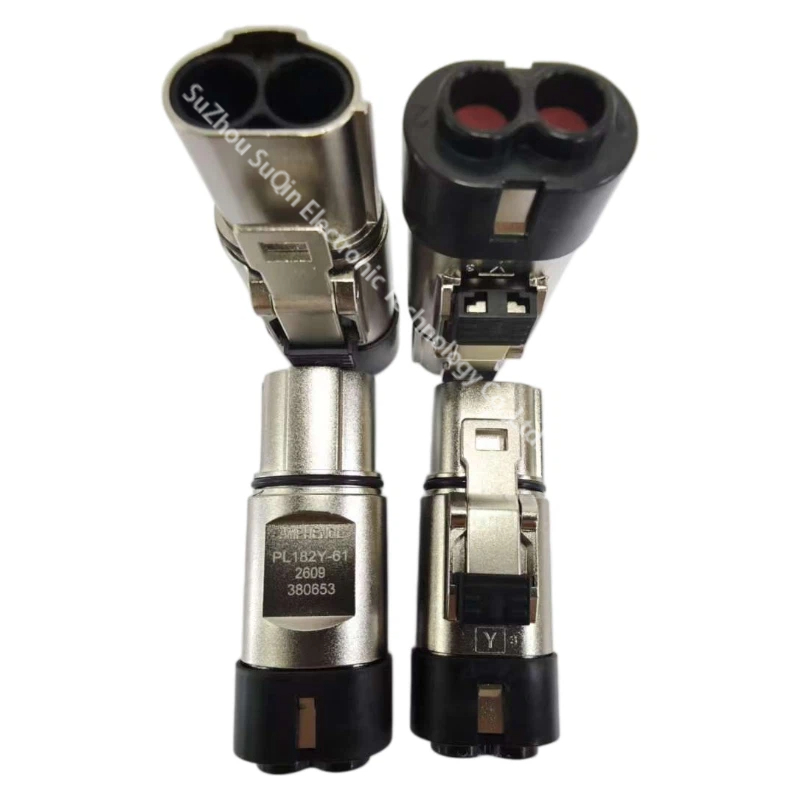

Factory-original Amphenol PL182Y-61-4 (MFG: EX-HA004282) 2-position 60A 1kVDC straight EV plug connector featuring RADSOK contact technology, Key Y mechanical polarization, IP67 ingress protection, and 4mm² (12 AWG) crimp termination. Available via Suzhou Suqin.
Data Overview
| Technical Parameter | Specification Value |
| Mfr. # (Manufacturer Part Number) | PL182Y-61-4 |
| MFG Part Number | EX-HA004282 |
| Part # Aliases | 282152 |
| Manufacturer / Brand | Amphenol / Amphenol Technical Products |
| Tradename | RADSOK |
| Series | Series 60 |
| Product Category | EV Connectors / E-Mobility |
| Product Type | Straight Plug (PLG STRT) |
| Number of Positions | 2 Position |
| Current Rating | 60 A |
| Voltage Rating | 1 kVDC (1000 VDC) |
| Contact Diameter | 4.0 mm |
| Mechanical Keying | Key Y |
| Wire Gauge Compatibility | Max 12 AWG (4 mm²) |
| Termination Style | Crimp |
| IP Rating | IP67 (Mated) |
| Packaging | Each |
| Unit Weight | 90.875 g |
| RoHS Status | RoHS Compliant |
Product Details
| Electrical Transmission & RADSOK Contact | Mechanical Polarization & Shielding | Environmental Sealing & Durability |
| 60A / 1kVDC High-Voltage Architecture Engineered for auxiliary EV power units and energy storage systems, featuring 4.0mm RADSOK grid contact surfaces that maximize conductive contact area and minimize thermal dissipation at 60A continuous loads. | Key Y Mechanical Alignment & Latch Incorporates mechanical Keying Code “Y” on the metal housing to prevent mis-mating across identical 2-way interfaces, supported by a secondary locking latch for vibration-resistant cable retention. | IP67 Sealed Zinc/Aluminum Alloy Shell Constructed with a heavy-duty metallic EMI shielding housing and integrated internal perimeter O-ring seals, achieving IP67 dust and water immersion protection when fully mated. |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.
Q1: What is the relationship between Mfr. # PL182Y-61-4 and MFG EX-HA004282?
PL182Y-61-4 is Amphenol’s standard Manufacturer Part Number (Mfr. #), while EX-HA004282 represents the internal manufacturing plant production code (MFG) or factory cross-reference identifier for the exact same 2-position 60A EV straight plug assembly.
Q2: What wire conductor sizes can be terminated with the PL182Y-61-4 connector?
The PL182Y-61-4 connector is designed to accommodate stranded copper conductors up to a maximum wire gauge of 12 AWG or 4 mm² equivalent cross-sectional area, using standard crimp termination techniques on the internal 4.0mm contacts.
Q3: What is the purpose of the “Key Y” designation on this Amphenol EV connector?
“Key Y” defines a unique physical polarization groove on the metal housing shell. Mechanical keying prevents accidental cross-mating between adjacent 2-pin connectors in EV power distribution modules or battery control units that utilize different internal circuit functions.
