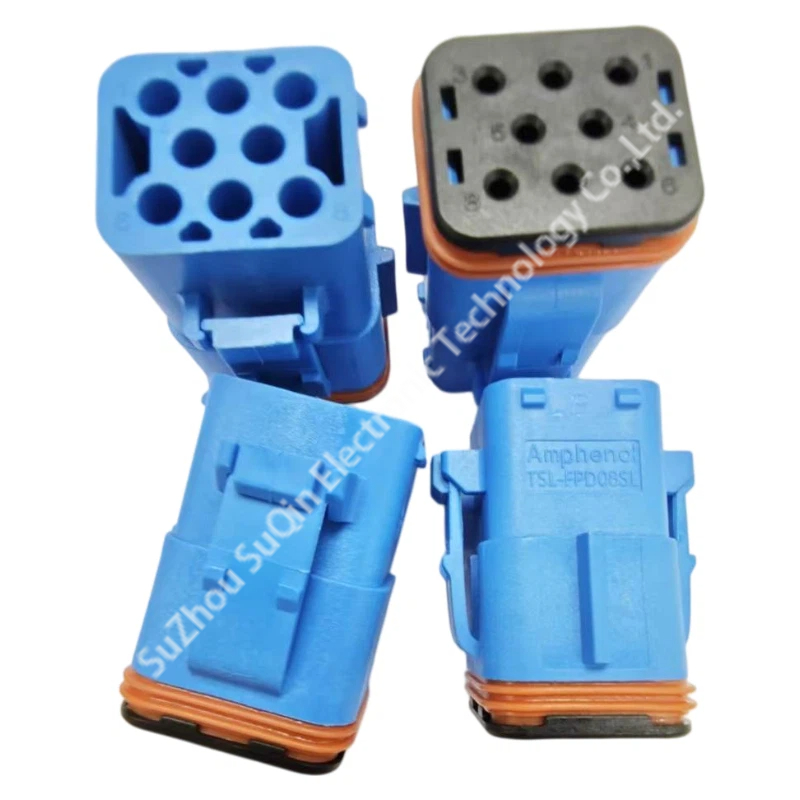

Amphenol TSL-FPD08SL 8-Way Sealed Blue Plug Connector Assembly | Suqin
Short Description:
-
Brand Manufacturer: Amphenol (Amphenol Technology (ShenZhen) Co., LTD)
-

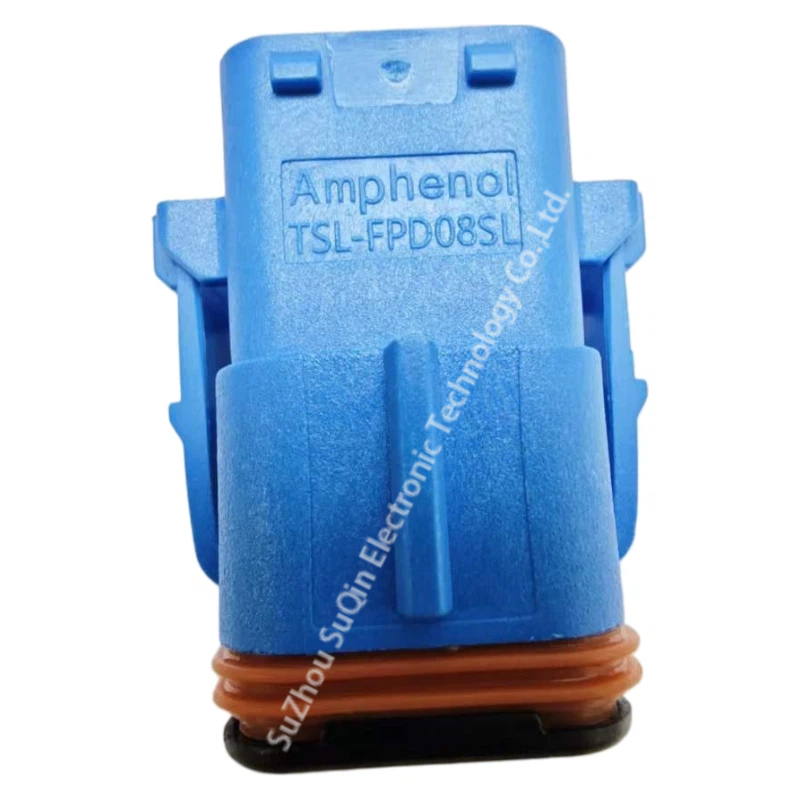

MPN (Part Number): TSL-FPD08SL
-
Product Series: SSL Series
-
Connector Component Type: Plug Assembly
-
Total Position Count: 8 Positions (8 WAY)
-
Primary Housing Color: Blue
-
Main Housing Material: NY 66 (Nylon 66), UL94V-0 Flame Retardant Rated
-
Inner Gasket Material: Silicon Rubber Moisture Seal
-
Protection Cap Material: High-Performance PBT
-
Overall Product Length: 35.0 ± 0.5 mm
-
Cross-Sectional Width: 23.0 ± 0.5 mm
-
Cross-Sectional Height: 20.0 ± 0.5 mm
-
Document Revision Status: Document No. TSL-FPD()S(), Rev. B
-
Primary Application Domains: Automotive Wire Harnesses, Industrial Control Systems, Marine Electronics, Commercial Vehicles
Product Detail
Product Tags
Buy original Amphenol TSL-FPD08SL 8-position sealed blue plug connector assembly at Suqin. Features premium UL94V-0 Nylon 66 housing, silicone rubber gasket, and PBT protection cap engineered for rugged industrial harnesses.
Data Overview
| Technical Parametric Attributes | Spec Detail Values |
| Manufacturer Name | Amphenol Technology (ShenZhen) Co., LTD |
| Manufacturer Part Number | TSL-FPD08SL |
| Product Component Type | Plug Assembly |
| Product Series Group | SSL Series |
| Circuit Position Count | 8 Positions (8 WAY) |
| Housing Material Formulation | NY 66 (Nylon 66) |
| Flammability Rating | UL94V-0 Standard |
| Inner Gasket Material | Silicon Rubber |
| Protection Cap Material | PBT |
| Primary Housing Color | Blue |
| Overall Length Metric | 35.0 ± 0.5 mm |
| External Profile Width | 23.0 ± 0.5 mm |
| External Profile Height | 20.0 ± 0.5 mm |
| General Tolerance Standard | <10: ±0.5 mm / >10-25: ±0.6 mm / >25-100: ±0.8 mm |
| Drawing Reference Revision | Document No. TSL-FPD()S(), Rev. B |
Product Details
| Core Technical Features | Engineering Advantages | Operational & Commercial Benefits |
| Triple-Material Protection (NY 66, Silicon, PBT) | Integrates a UL94V-0 rated fire-retardant outer housing with a flexible silicon rubber inner gasket and a PBT protection cap. | Delivers absolute flame retardancy and an airtight moisture seal under heavy industrial vibration, preventing corrosion and severe wiring field failures. |

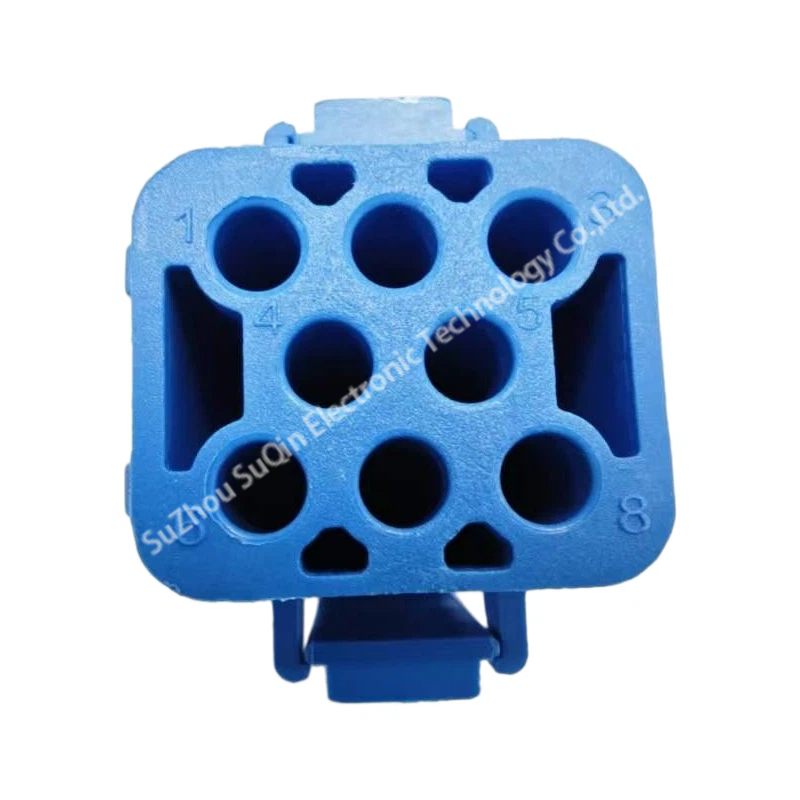

| Polarized 8-Way Layout with Blue Coding Suffix “SL” | Packs 8 isolated circuits into a compact 35.0 mm framework while utilizing a vibrant blue shell for high visual distinction. | Allows factory assembly line operators to instantly track distinct lines, completely cutting down cross-mating errors against black or gray connectors. |
| Strict Dimension Controls (±0.5 mm Factory Tolerance) | Every boundary metric strictly follows the Amphenol blueprint rules, ensuring perfect mechanical coupling with corresponding SSL receptacles. | Provides a clear tactile lock click upon engagement, speeding up manual installation lines and minimizing field service labor costs. |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.
Q1: What does the suffix “SL” mean in the part number TSL-FPD08SL?
Within the Amphenol SSL series coding chart, FPD represents a Plug Assembly , 08 indicates an 8-way circuit arrangement, and the suffix SL identifies the factory Blue color option. This helps wiring harness engineers easily segregate multi-branch circuits from Black (SB) or Gray (SG) lines visually.
Q2: Does this plug kit come pre-assembled with the inner seals?

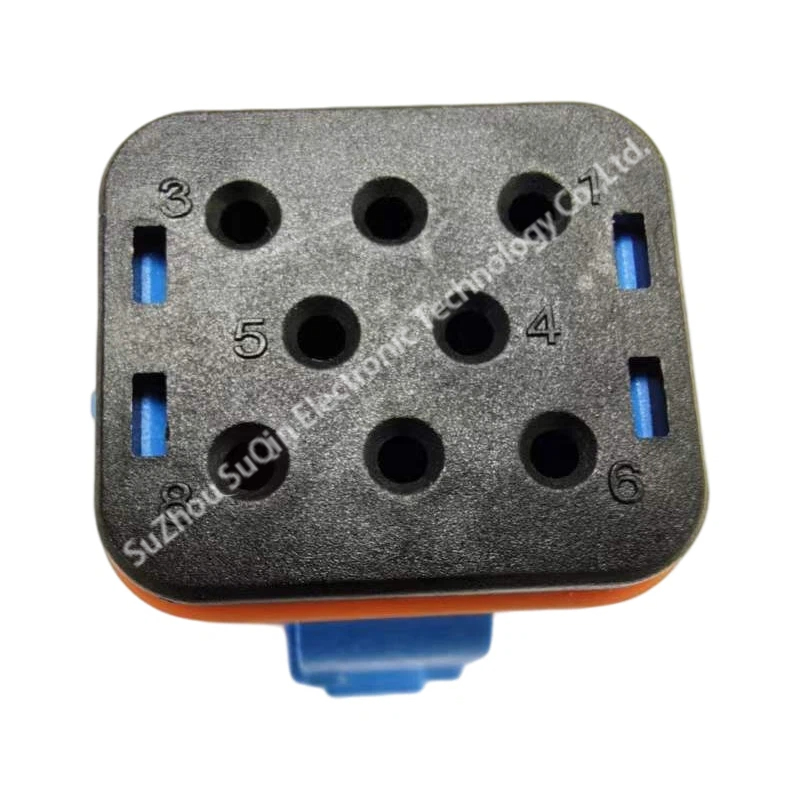

Yes, the TSL-FPD08SL represents a fully integrated factory housing kit. It comes pre-assembled with 1 unit of the Blue Plug Housing, 1 unit of the orange Silicon Rubber Inner Gasket, and 1 unit of the internal PBT Protection Cap. Mating male crimp pin contacts are sold separately based on wire gauge specifications.
Q3: What are the strict clearance dimensions required for wire routing enclosures?
The blueprint outlines explicit physical boundaries for this 8-way plug: a total length of 35.0 ± 0.5 mm, an outer width of 23.0 ± 0.5 mm, and an outer profile height of 20.0 ± 0.5 mm. Unspecified general features follow standard strict tolerance metrics (±0.5 mm for dimensions below 10 mm and ±0.6 mm for scales up to 25 mm).
