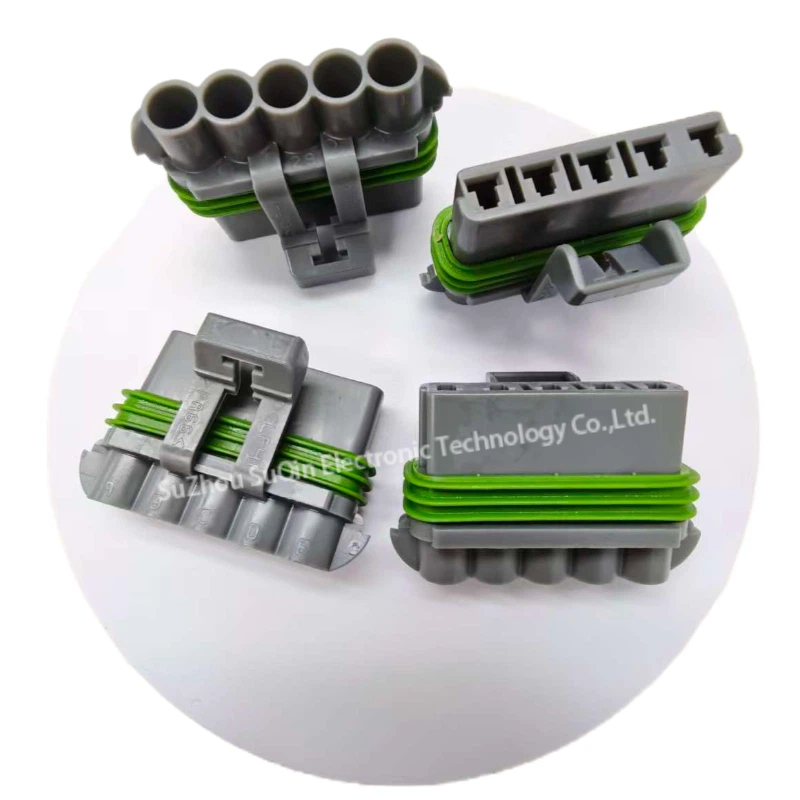

Aptiv 12084891 5-Way Female Metri-Pack 280 Sealed Connector | 30A Gray

Short Description:

Manufacturer: Aptiv (formerly Delphi)
Part Number: 12084891
Series: Metri-Pack 280
Positions: 5 Position (Single Row)
Current Rating: 30 Amps (High Power)
Gender: Socket (Female)
Sealing: Environmental Sealed (IP Rated)
Housing Color: Gray
Typical Application: Wiper Motor / High-Current Inline Connection
Temperature Range: -40°C to +125°C
Housing Material: Rugged Nylon (PA66)

Product Detail

Product Tags

Buy Aptiv 12162210. A 5-position female socket from Metri-Pack 280 series. Rated for 30A, sealed for automotive wiper motors and inline power applications. Operates -40°C to +125°C.

Data Overview

Attribute Category	Technical Specification
Brand	Aptiv (formerly Delphi)
Model	12084891
Connector Series	Metri-Pack 280
Positions	5-Way
Current Rating	30 Amps
Housing Color	Gray
Housing Material	Nylon (PA66)
Gender	Socket (Female)
Number of Rows	1 Row
Mating Part Number	12186400
Dimensions (LxWxH)	29.9 mm x 48.3 mm x 25 mm
Operating Temp	-40°C to +125°C
Locking Mechanism	Integrated Cavity Lock
Assembly Country	Mexico (MX)

Product Details

Features & Specifications	Technical Advantages	Strategic Business Benefits
High-Current 30A 280 Series Design	Engineered for 2.8mm blade terminals capable of handling consistent 30A loads.	Power Transmission Reliability: Safely powers high-torque wiper motors and auxiliary systems without risk of terminal burnout or excessive heat buildup.

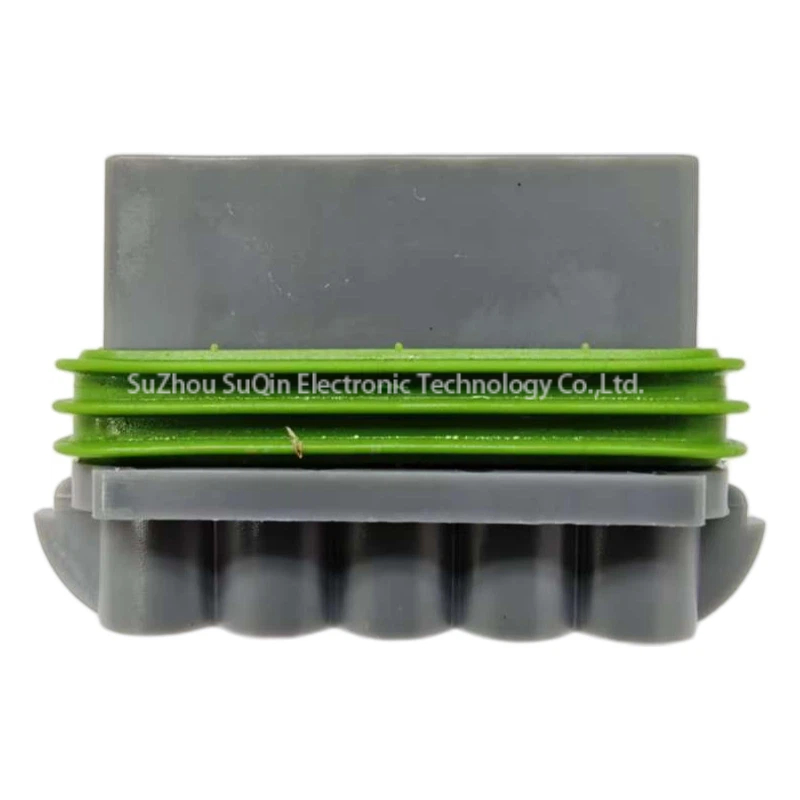

Metri-Pack 280 Environmental Seal	Triple-ribbed silicone seals ensure a hermetic barrier against moisture and salt.	Reduced Warranty Claims: Prevents corrosion at the contact point, ensuring wipers and critical motors function in heavy rain or snow, enhancing vehicle safety.

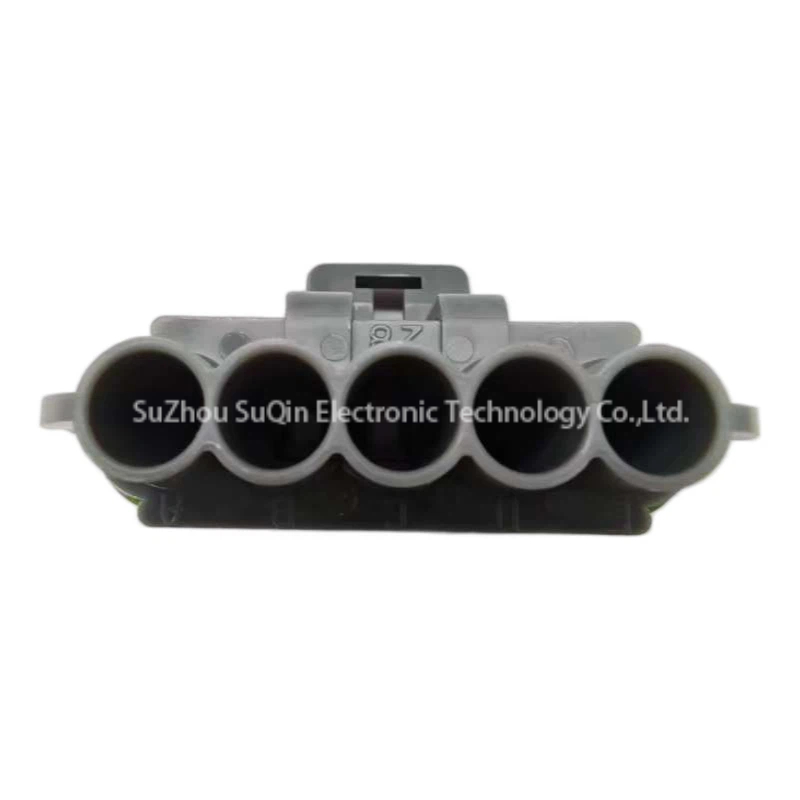

Precision Cavity Locking Mechanism	Features an internal primary lock to secure each terminal in its precise location.	Vibration Resistance: Guarantees electrical continuity even in high-vibration engine environments, preventing accidental terminal back-out and system failure.
Aptiv OEM Standardized Housing	Fully compatible with mating part 12186400 and standard 280 series terminals.	Universal System Compatibility: Streamlines the procurement process by utilizing industry-standard components, ensuring easy replacement and wide harness compatibility.

Our advantage

● Brand supply diversification,
Convenient one-stop shopping

● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.

● Complete information, fast delivery
Reduce intermediate links

● Good after-sales service
Quick response, professional reply

● Original genuine guarantee
Support professional consultation

● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

Q1: Which terminals are compatible with the 12084891 housing?

A: This housing uses Metri-Pack 280 Series female terminals. Since it is a sealed connector, you must use terminals that accommodate the appropriate cable seal (typically for 10-12 AWG or 14-16 AWG wires) to maintain the 30A current rating and IP protection.

Q2: Can I use 12084891 for applications other than wiper motors?

A: Absolutely. While it is commonly used for wiper motor sub-harnesses due to its durability, its 30A capacity and environmental sealing make it ideal for any inline power connection, such as electric cooling fans, fuel pumps, or auxiliary lighting systems.

Q3: What is the matching male connector for this part?

A: The official mating male plug for the 12084891 socket is Aptiv part number 12186400. Using the genuine mating part ensures the seals align perfectly for full waterproof protection.
