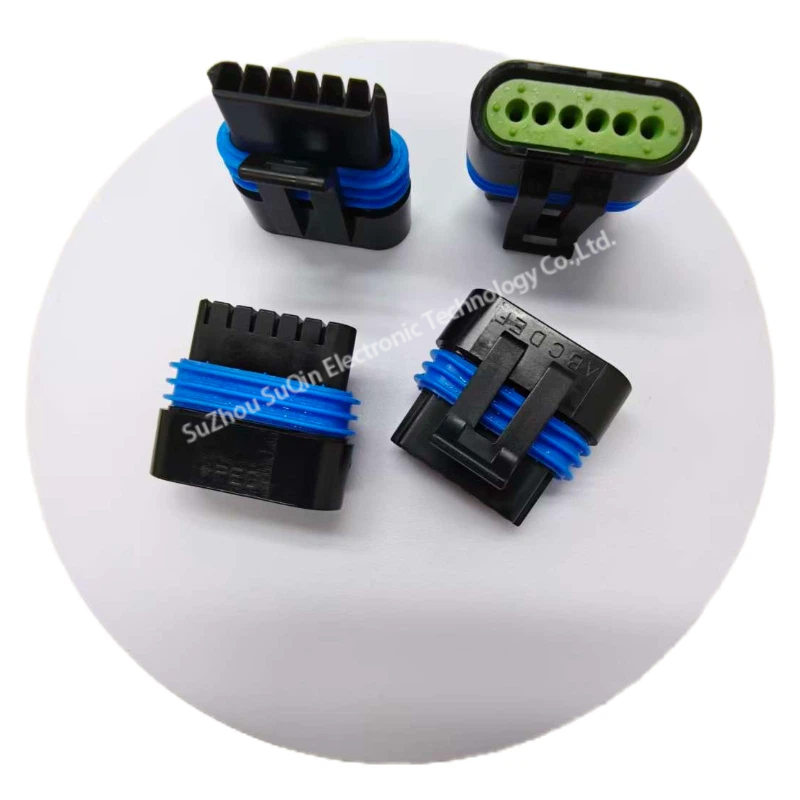

Aptiv 12162210 6-Way Female Metri-Pack 150.2 Sealed Connector
Short Description:
- Manufacturer: Aptiv (formerly Delphi)
- Part Number: 12162210
- Series: Metri-Pack 150.2 Series
- Number of Positions: 6 Position (Single Row)
- Gender: Female (Receptacle)
- Mounting Type: Cable Mount / Free Hanging
- Termination: Crimp
- Sealing: Sealed (Waterproof/Dustproof)
- Operating Temp: -40°C to +125°C
- Housing Color: Black
- Dimensions: 27.1 mm (L) x 30 mm (W) x 17.7 mm (H)
Product Detail
Product Tags
Order Aptiv 12162210. A high-performance 6-position female receptacle from the Metri-Pack 150.2 series. IP-sealed for automotive use, rated for -40°C to +125°C. Ideal for engine sensors and wiring harnesses.
Data Overview
| Attribute Category | Technical Specification |
| Brand | Aptiv (formerly Delphi) |
| Model | 12162210 |
| Connector Family | Metri-Pack |
| Sub-Series | 150.2 |
| Number of Poles | 6 |
| Gender | Receptacle (Female) |
| Mating Orientation | Straight (180°) |
| Housing Material | Nylon / PBT |
| Voltage Rating (Typical) | 12-24V DC (Automotive) |
| Current Rating (Per Contact) | Up to 14 Amps (Continuous) |
| Dimensions (LxWxH) | 27.1 x 30 x 17.7 mm |
| Color | Black |
| Country of Origin | Mexico (MX) |
Product Details
| Engineering Features & Specs | Technical Advantages | Operational & Business Benefits |

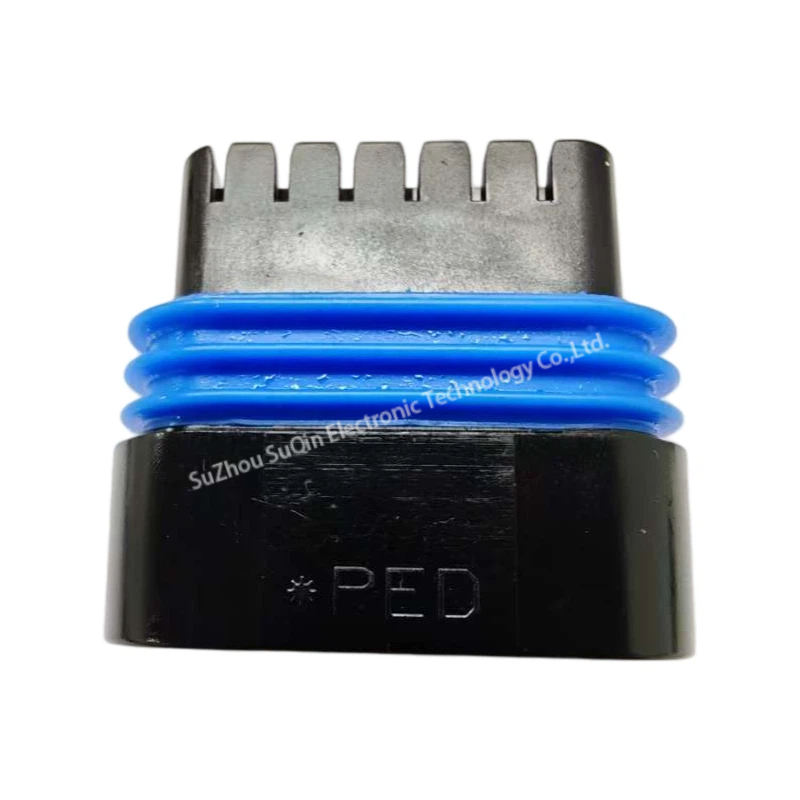

| Metri-Pack 150.2 Sealed Design | Utilizes specialized silicone seals that provide a multi-ribbed barrier against ingress. | Extreme Reliability: Guaranteed protection against water, salt, and automotive fluids, preventing intermittent signal failures and extending equipment service life. |
| Compact 6-Way Single Row Layout | Features a streamlined 17.7mm profile with high-density terminal spacing. | Space & Weight Savings: Perfect for modern, dense wiring harness designs where space is limited, without compromising electrical performance. |
| High-Temp PBT Housing (125°C) | Constructed from high-grade Polybutylene Terephthalate for thermal and chemical stability. | Engine-Bay Ready: Ensures the connector housing won’t crack or degrade when exposed to extreme engine heat or under-hood chemicals, reducing maintenance costs. |
| Standardized 150.2 Pull-to-Seat System | Fully compatible with standard Aptiv/Delphi Metri-Pack terminals and seals. | Simplified Logistics: Easy to integrate into existing Delphi-based systems, allowing for quick replacements or upgrades using standard industry tooling. |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.
Q1: Does the 12162210 housing include the terminals and seals?
A: No, the 12162210 is the connector housing only. To complete the assembly, you must order the Metri-Pack 150.2 series female terminals and the corresponding cable seals separately based on your specific wire gauge.
Q2: What is the difference between Metri-Pack 150 and 150.2?
A: While they share the same 1.5mm terminal width, the 150.2 series (like 12162210) features a slightly different housing design and interface seal meant for more compact, high-density applications compared to the original 150 series. They are typically not intermatable unless specified by the datasheet.
Q3: Is the 12162210 suitable for high-vibration applications?
A: Yes. The Metri-Pack 150.2 system is specifically engineered for automotive environments. Its secure latching mechanism and environmental seals are designed to maintain electrical continuity even under the intense vibrations found in engine blocks and heavy-duty vehicle chassis.
