Aptiv 15326678 GT 280 Series 2-Pin Automotive Connector Plug | Suqin

Short Description:

Brand Manufacturer: Aptiv (formerly Delphi)
MPN (Part Number): 15326678
Part Number Aliases: 15326678-B
Product Series: GT 280 Series
Connector Configuration: Housing for Male Terminals (Plug)
Total Circuit Positions: 2 Positions
Row Architecture: 1 Row (Single Row)
Mounting Style: Cable Mount / Free Hanging
Orientation Mounting Angle: Straight Exit
Housing Compound Material: High-Grade Reinforced Nylon

Product Detail

Product Tags

Shop genuine Aptiv (formerly Delphi) 15326678 automotive connector plug at Suqin. This GT 280 series 2-position male housing features a rugged nylon shell, locking lance, and 25A current capacity for vehicle wiring. Request a quote.

Data Overview

Technical Parametric Attributes	Spec Detail Values
Manufacturer	Aptiv (formerly Delphi)
Product Part Number	15326678
Part Number Aliases	15326678-B
Product Category	Automotive Connectors
Product Tradename / Family	GT Series / GT 280
Connector Type	Plug Housing (Male Shroud)
Number of Positions	2 Position
Number of Rows	1 Row
Contact Current Rating (Max)	25 A
Supported Wire Gauge	22 AWG to 20 AWG
Termination Style	Crimp
Contact Plating Compatibility	Tin
Housing Material	High-Grade Nylon
Locking Mechanism	Locking Lance
Mounting Angle	Straight
Mounting Style	Cable Mount / Free Hanging
Operating Temperature Range	-40°C to +125°C
Product Length	43.4 mm
Product Width	23.8 mm
Product Height	19.4 mm
Unit Weight	0.276132 oz
Primary Housing Color	Black

Product Details

Core Specifications	Engineering Advantages	Operational Benefits
Heavy-Duty GT 280 Nylon Housing	Provides rugged structural stability, excellent dielectric properties, and high resistance to automotive chemicals, engine heat, and environmental stress.	Extends the life cycle of the wire harness and reduces field breakdowns caused by brittle plastic failure.
Integrated Locking Lance Mechanism	Ensures that the crimped contacts snap firmly into position inside the cavity and remain mechanically unyielding under severe cable pulling.	Prevents contact back-out errors during harness processing and eliminates intermittent electrical signal drops.
2-Position Inline Compact Footprint	Optimizes critical spacing boundaries for localized automotive sub-circuits while supporting high-power delivery layout configurations.	Perfect for space-constrained vehicle areas like engine compartments, sensor clusters, and under-dash wiring modules.
High 25A Current Carrying Capacity	Handles continuous high-amperage electronic loads across 22-20 AWG wire boundaries without thermal accumulation or material warping.	Delivers versatile power management capabilities across common automotive accessories and high-vibration power circuits.

Our advantage

● Brand supply diversification,
Convenient one-stop shopping

● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.

● Complete information, fast delivery
Reduce intermediate links

● Good after-sales service
Quick response, professional reply

● Original genuine guarantee
Support professional consultation

● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

Q1: What wire sizes are officially supported by the Aptiv 15326678 GT 280 connector?

The 15326678 plug housing is engineered to support wire sizes within the 22 AWG to 20 AWG range. Choosing the proper wire gauge and mating crimp terminal ensures optimal sealing, correct terminal retention via the locking lance, and maximum electrical performance across the circuit.

Q2: Is this housing supplied with the electrical male contacts included?

No. The 15326678 part number is the connector nylon housing only (contacts are sold separately). To complete the connection system, you must purchase the appropriate GT 280 series crimp male contacts and associated cable seals based on your specific wire insulation diameter.

Q3: Can the Aptiv 15326678 connector survive harsh vehicle under-hood conditions?

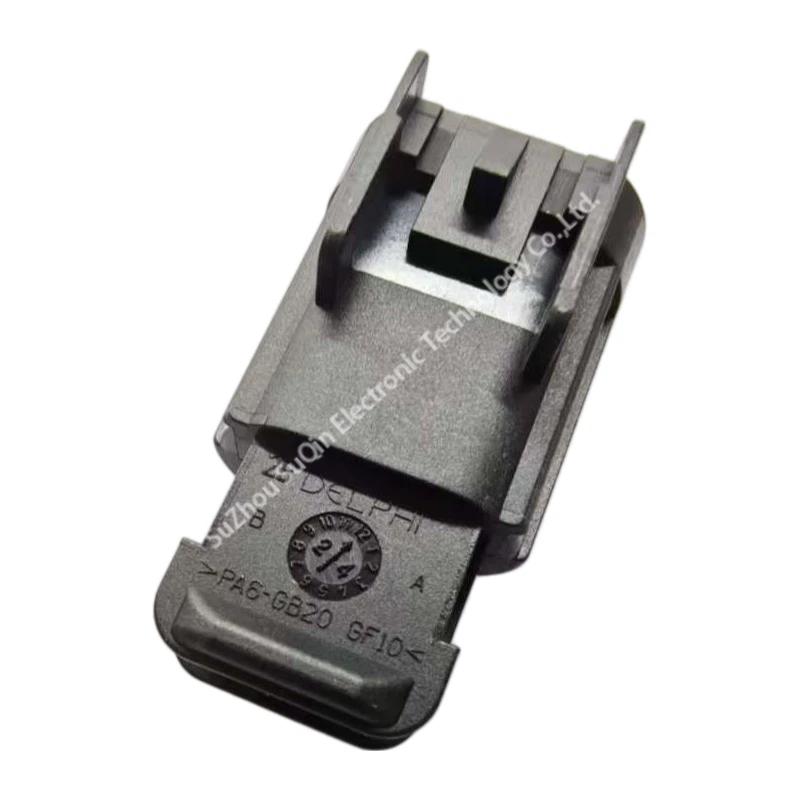

Yes, it is designed exactly for that environment. Built with high-grade PA6 reinforced nylon, this housing withstands extreme operating temperatures ranging from minus 40°C to 125°C. Its robust engineering makes it highly resistant to common automotive fluids, environmental contaminants, and continuous engine vibration.
