BINDER 99-5110-40-04 M16 Female Connector | 4-Pin IP67 Series 423
Short Description:
-
Manufacturer: BINDER (Germany)
-
Part Number: 99-5110-40-04
-
Series: Series 423 (M16 Standard)
-
Number of Poles: 4 Pin
-
Connector Type: Female Cable Connector (Free)
-
Locking System: M16 Screw Locking
-
Termination: Solder Connection
-
Protection Class: IP67 (Dust-tight & Waterproof)
-
Rated Current: 6 A
-
Rated Voltage: 250 V
-
Cable Outlet: 4.0 mm – 8.0 mm
-
Operating Temp: -40 °C to +95 °C
Product Detail
Product Tags
Order BINDER 99-5110-40-04 at Suzhou Suqin Electronic. 4-position M16 female circular connector, Series 423. IP67 rated, 6A/250V, solder termination for industrial automation and sensor systems.
Data Overview
| Attribute Category | Technical Specification |
| Brand | BINDER |
| Model / PN | 99-5110-40-04 |
| Connector Gender | Female |
| Number of Contacts | 4 Pole |
| Locking Thread | M16 x 0.75 |
| Wire Gauge Compatibility | Max 0.75 mm² (AWG 18) |
| Rated Impulse Voltage | 1500 V |
| Insulation Resistance | ≥ 10¹⁰ Ω |
| Contact Plating | Silver (Ag) |
| Housing Material | CuZn (Brass, nickel plated) |
| Contact Body Material | PBT (UL 94 V-0) |
| Mechanical Operation | > 500 Mating Cycles |

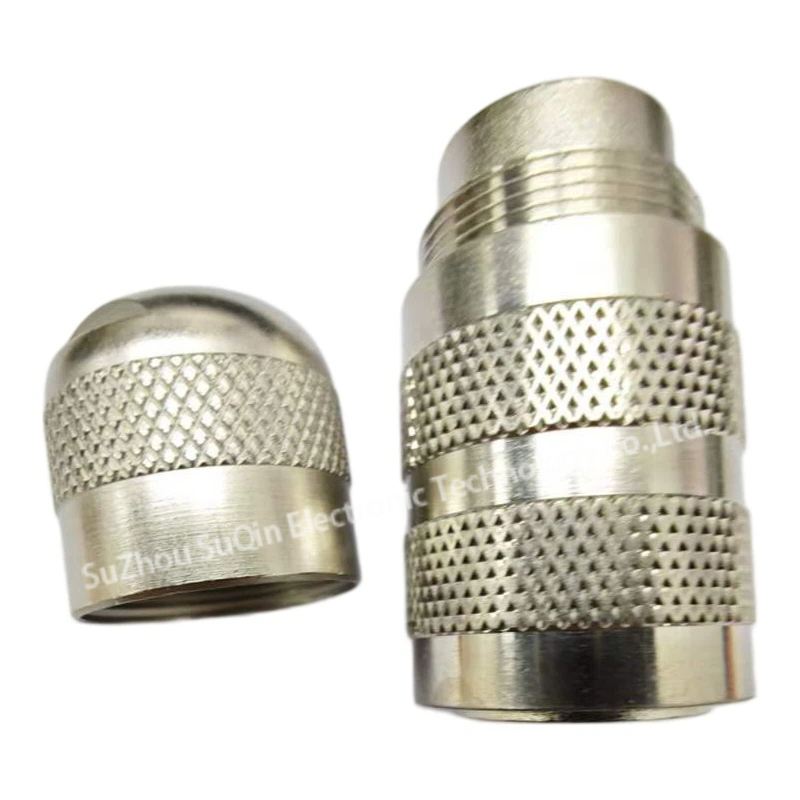

| Cable Exit Angle | 180° (Straight) |
Product Details
| Performance & Engineering Features | Technical & Operational Advantages | Strategic Business Benefits |
| Precision M16 Screw Locking | Provides a high-strength mechanical connection that resists heavy vibration and accidental pull-out. | Maximum System Uptime: Prevents signal interruption in automated production lines, significantly reducing costly machine downtime. |
| IP67 Ingress Protection | The internal sealing system blocks dust, moisture, and industrial coolants from entering the contact area. | Harsh Environment Durability: Ensures reliable performance in wet or dusty factory floors, extending the service life of connected sensors and controllers. |
| Robust Metal Housing (Series 423) | Built with high-quality nickel-plated zinc die-cast for superior mechanical impact and corrosion resistance. | Lower Maintenance Costs: The rugged design withstands daily industrial wear and tear, reducing the frequency of connector replacements. |

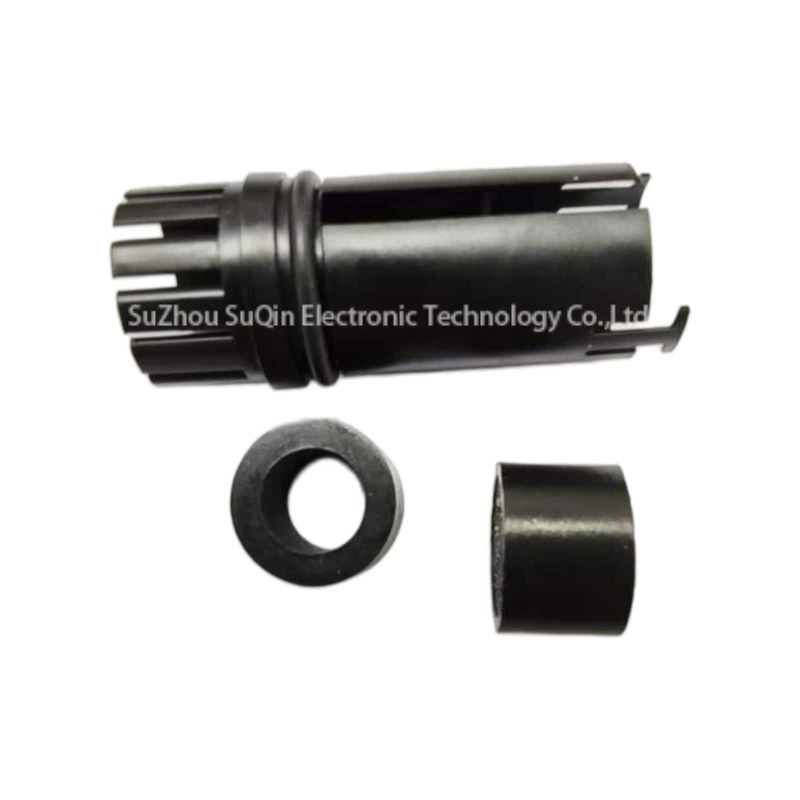

| Flexible 4-8mm Cable Outlet | Features a versatile strain relief clamp that accommodates a wide range of common industrial cables. | Versatile Application: Simplifies inventory management by using one connector model for multiple cable specifications across different projects. |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.
Q1: Can I use the BINDER 99-5110-40-04 in unshielded applications?
A: Yes, this specific model (99-5110-40-04) is an unshielded version. It is ideal for power transmission or signal applications where electromagnetic interference (EMI) is not a critical concern. For high-EMI environments, we recommend the shielded versions of the Series 423.
Q2: Is this M16 connector compatible with sensors from other brands?
A: Absolutely. The M16 x 0.75 locking thread is an industry-standard interface. As long as the mating male connector follows the standard M16 4-pin configuration, the 99-5110-40-04 will provide a secure and reliable connection.
Q3: How do I ensure the IP67 rating after assembly?
A: To maintain the IP67 protection level, ensure that the cable diameter is between 4mm and 8mm, the sealing nut is tightened to the recommended torque, and the solder joints are clean and properly insulated before closing the housing.
