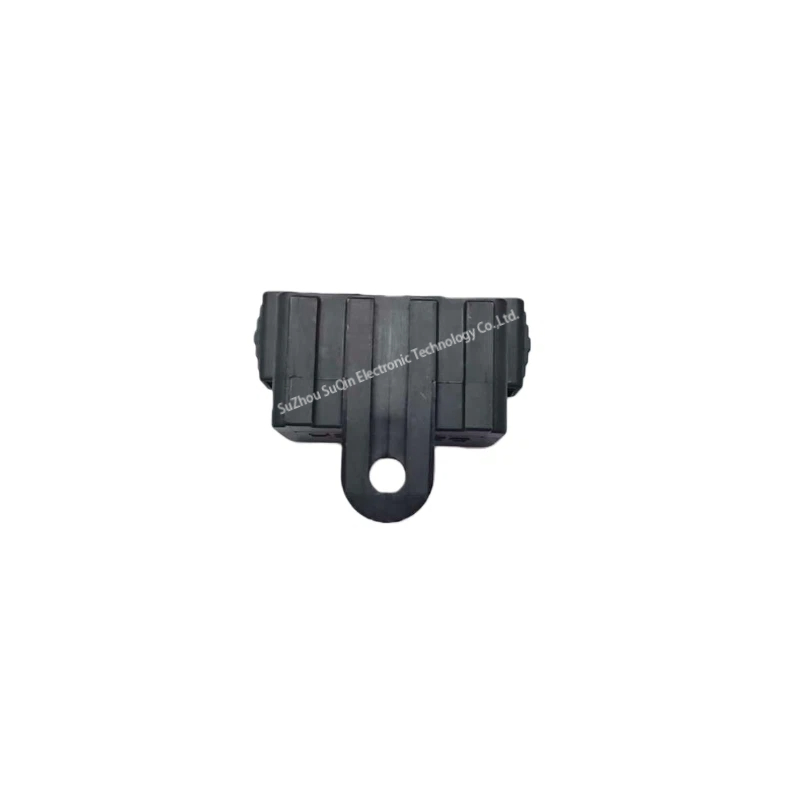

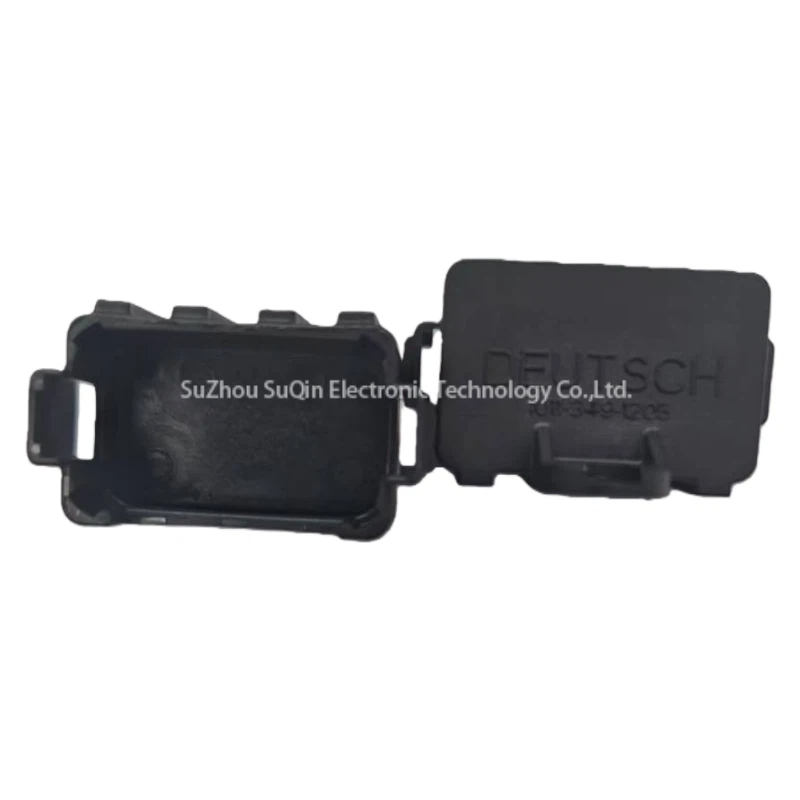

DEUTSCH 1011-349-1205 Dust Cap | 12-Pin DT Plug Protective Cover
Short Description:
-
Manufacturer: TE Connectivity / DEUTSCH
-
Part Number: 1011-349-1205
-
Series: DEUTSCH DT Series
-
Number of Positions: 12 Positions
-
Accessory Type: Dust Cap / Protective Cover
-
Compatible Style: DT Plug
-
Material: Glass-Filled Polyamide (PA GF)
-
Ingress Protection: IP6K9K (Extreme Dust/Water Protection)
-
Temperature Range: -55°C to +125°C (-67°F to +257°F)
Product Detail
Product Tags
Shop DEUTSCH 1011-349-1205. A 12-position black dust cap for DT series plugs. Features PA GF material, IP6K9K rating, and -55°C to 125°C range for heavy-duty protection.
Data Overview
| Attribute | Specification |
| Brand | TE Connectivity / DEUTSCH |
| Part Number | 1011-349-1205 |
| Connector Accessory Type | Dust Cap |
| Number of Positions | 12 |
| Compatible Connector Style | Plug |
| Primary Product Material | PA GF (Glass-Filled Polyamide) |
| Primary Product Color | Black |
| Operating Temperature Range | -55°C – 125°C [-67°F – 257°F] |
| IP Rating | IP6K9K |
| UL Flammability Rating | UL 94V-0 |
| Sealable | Yes |

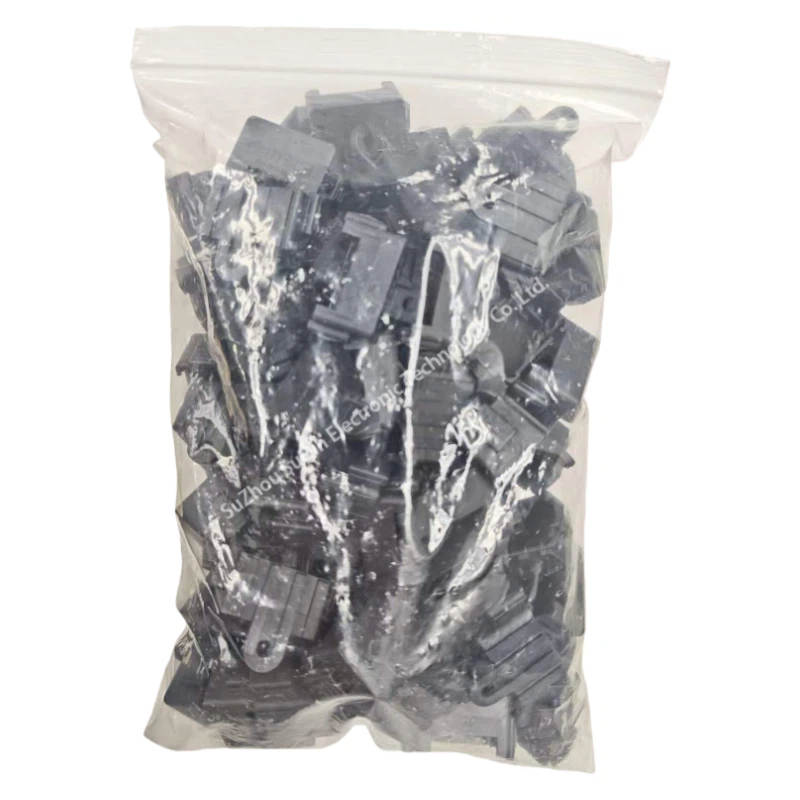

| Packaging Method | Box |
Product Details
| Product Features | Engineering Advantages | Customer Benefits |
| IP6K9K Rated Protection | Engineered to exceed standard sealing requirements, providing a barrier against high-pressure steam and dust. | Ensure System Longevity: Prevents contamination of critical 12-pin interfaces when not in use, reducing terminal corrosion and preventing costly electrical shorts during maintenance. |
| Rugged PA GF Construction | Manufactured from high-performance Glass-Filled Polyamide with UL 94V-0 flammability rating. | Maximized Durability: Offers exceptional impact resistance and fire safety, ensuring the cap remains intact even in the harshest industrial and engine bay environments. |
| Wide Temperature Tolerance | Fully operational in extreme conditions ranging from -55°C to 125°C. | Global Versatility: Performs reliably in any climate, from arctic cold to intense engine heat, guaranteeing consistent protection for your DT series infrastructure. |
| Serviceable Design | Purpose-built for quick installation and removal as a reusable protective accessory. | Operational Efficiency: Allows for rapid on-site servicing and protection of exposed plugs, keeping your equipment “ready-to-mate” without the need for cleaning or re-terminalizing. |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.
Q1: Is the 1011-349-1205 dust cap compatible with both DT and DTM plugs?
A: No, this specific model is designed exclusively for the DEUTSCH DT Series 12-position plugs. DTM series connectors use a smaller footprint and require a different accessory.
Q2: Does this cap provide a waterproof seal?
A: Yes, the 1011-349-1205 is rated IP6K9K, which means it provides a high level of protection against dust and high-pressure/steam jet cleaning when properly seated on a compatible DT plug.
Q3: Can this cap be used on a receptacle (socket) housing?
A: This specific part number is engineered for use with Plug housings. Protective covers for receptacles often require a different mating geometry.
