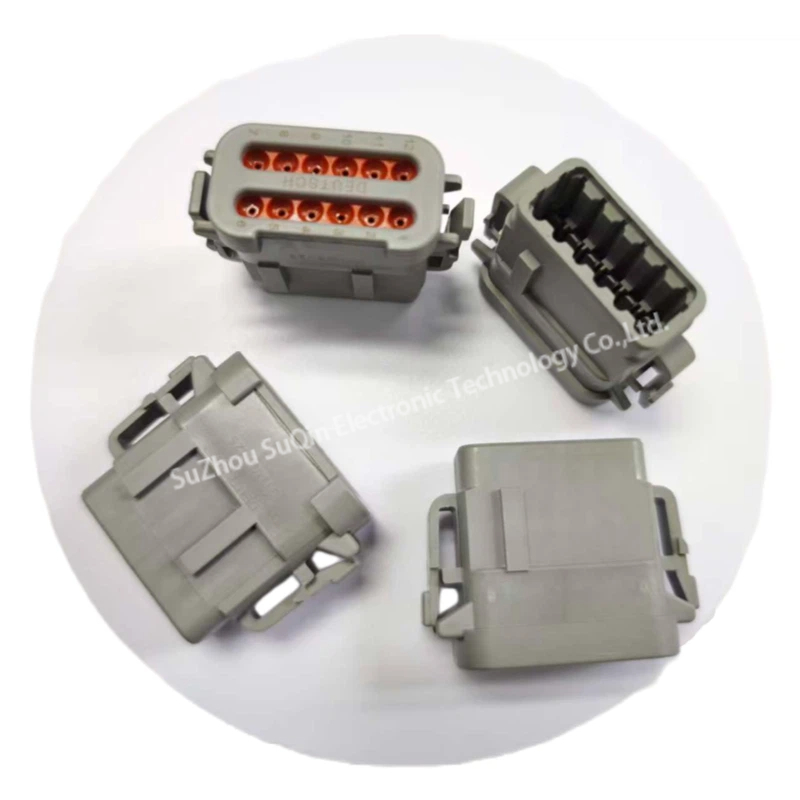

DTM06-12SA-E003 DEUTSCH 12-Pin Gray Plug with End Cap | IP68 Size 20

Short Description:

Manufacturer: DEUTSCH (TE Connectivity)
Part Number: DTM06-12SA-E003
Modification: E003 (Integrated Protective End Cap)
Number of Positions: 12 Circuits (Dual Row)
Contact Size: Size 20 (Max 7.5 Amps)
Protection Rating: IP68 & IP6K9K (Waterproof & Dust-proof)
Keying / Color: A-Key / Gray
Material: PA66 GF15 Impact-Resistant Thermoplastic
Temperature Range: -55°C to +125°C
Application: Engine Management, Sensors, and High-Density Power Distribution.

Product Detail

Product Tags

Shop DEUTSCH DTM06-12SA-E003. A 12-way gray plug featuring an integrated End Cap (E003) for superior seal protection. IP68/IP6K9K rated, 7.5A per circuit. Ideal for rugged EV & off-road wiring.

Data Overview

Attribute Category	Technical Specification
Brand	DEUTSCH (TE Connectivity)
Model	DTM06-12SA-E003
Modification Code	E003 (Integrated End Cap)
Connector System	Wire-to-Wire / Wire-to-Device
Position Count	12 Positions (2 Rows x 6)
Contact Size	Size 20 Socket
Max Current Rating	7.5 A
Operating Voltage	250 VAC/VDC
Keying Code	A (Gray)
Housing Material	PA66 GF15 (Glass Filled Nylon)
Seal Material	High-Grade Silicone Rubber
Operating Temp Range	-55°C to +125°C [-67°F to +257°F]
Wire Range	16 – 22 AWG [1.5 – 0.5 mm²]
Standards	SAE J2030, UL 94V-0

Product Details

Core Features & Specifications	Engineering & Operational Advantages	Value-Driven Business Benefits
Integrated E003 End Cap Design	Provides an extra layer of mechanical protection for the rear wire seals against debris and abrasion.	Reduced Failure Rates: Prevents moisture ingress caused by seal damage in harsh environments, minimizing costly downtime and maintenance calls.
Size 20 High-Density Contact System	Accommodates 12 positions in a miniaturized housing, supporting 7.5A per circuit.	Ultimate Space Optimization: Perfect for compact modern control modules and EV battery systems where every millimeter and gram counts.
30G Vibration & IP68 Sealing	Maintains electrical continuity under extreme 2000Hz vibration and pressure washing (IP6K9K).	Military-Grade Durability: Guarantees signal integrity in the most grueling racing or industrial conditions, protecting your high-value electronic components.
Visual Locking Confirmation (Wedge Lock)	Requires the WM-12S secondary wedge lock to ensure 100% terminal seat alignment.	Foolproof Assembly: Eliminates human error during harness production, ensuring that your products are shipped with zero connection defects.

Our advantage

● Brand supply diversification,
Convenient one-stop shopping

● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.

● Complete information, fast delivery
Reduce intermediate links

● Good after-sales service
Quick response, professional reply

● Original genuine guarantee
Support professional consultation

● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

Q1: What is the benefit of the E003 End Cap over the standard DTM06-12SA?

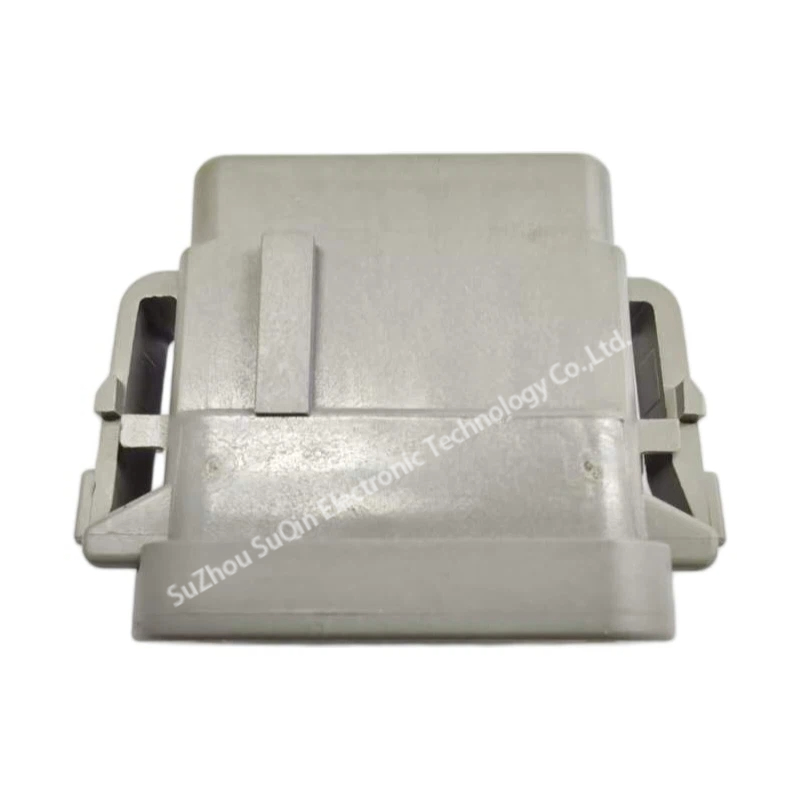

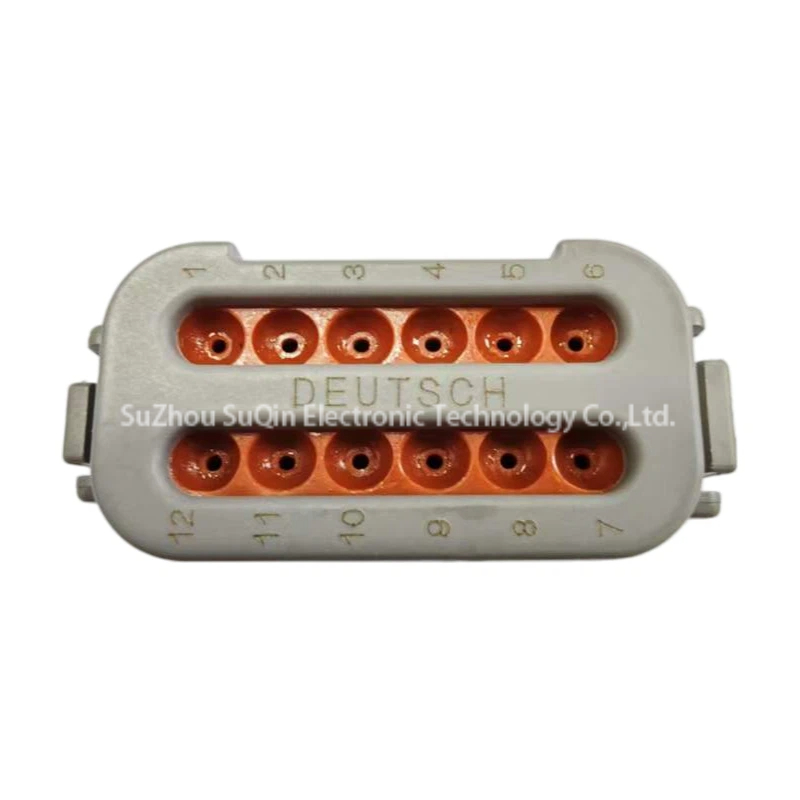

A: The E003 modification adds a rigid plastic cap to the back of the connector. This protects the orange silicone wire seals from being dislodged or damaged by moving parts, dirt, or debris, making it the preferred choice for exposed chassis or engine-bay mounting.

Q2: Which secondary Wedge Lock do I need for this housing?

All DTM06-12S housings, including the E003 version, require the WM-12S wedge lock (usually orange). The wedge lock ensures that the terminals are correctly seated and prevents them from backing out under vibration.

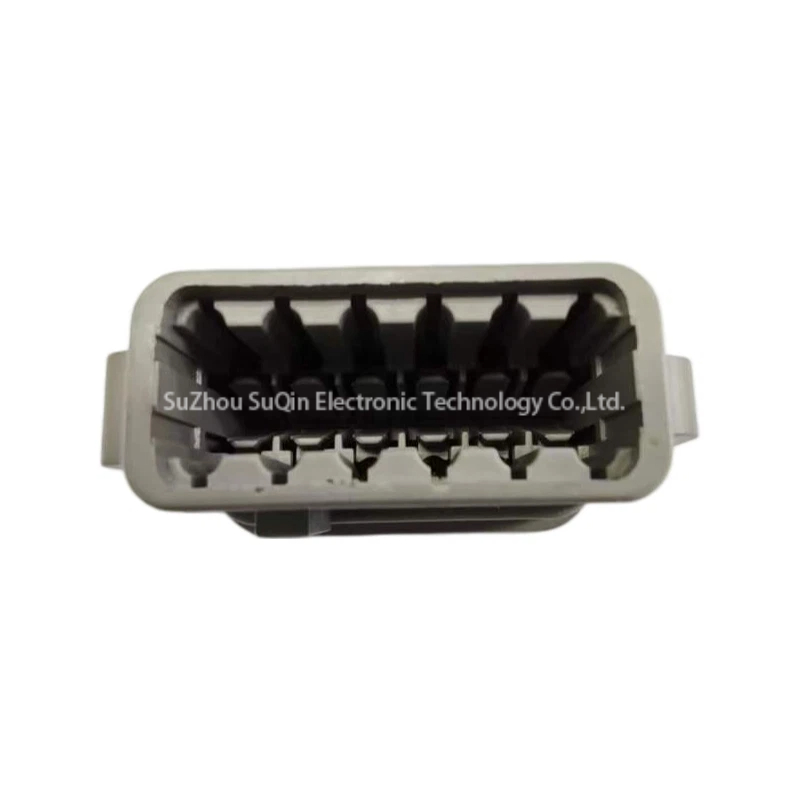

Q3: Is the DTM06-12SA-E003 compatible with standard DTM receptacles?

A: Yes. The front mating interface remains identical to the standard DTM06-12SA. It will mate with any DTM04-12PA series receptacle or flanged header with the corresponding “A” (Gray) keying.
