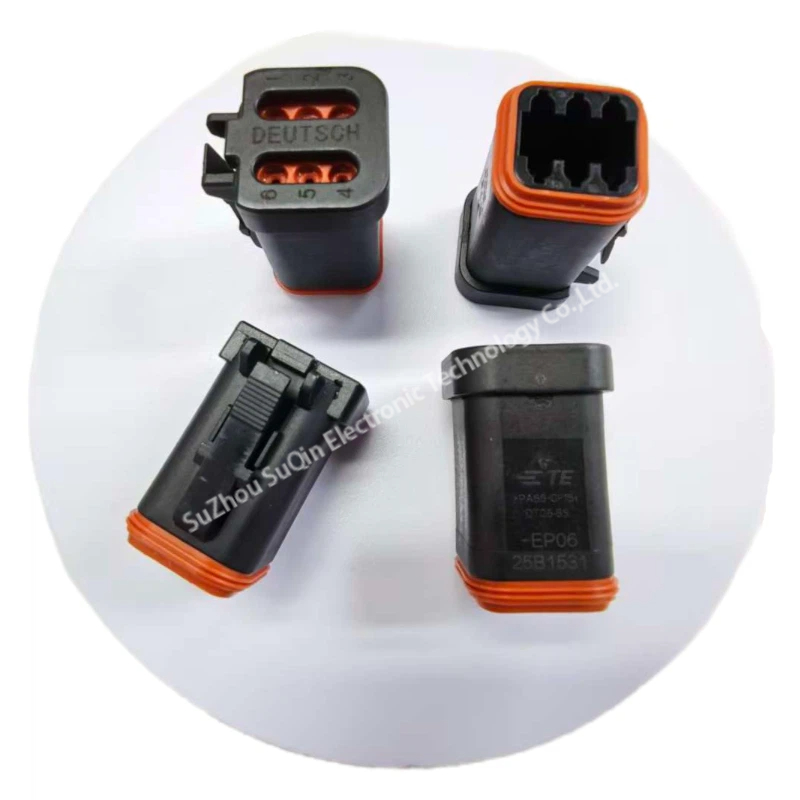

DT06-6S-EP06 DEUTSCH 6-Pin Black Plug | IP68 Enhanced Seal & End Cap

Short Description:

Manufacturer: DEUTSCH (TE Connectivity)
Part Number: DT04-6S-EP06
Series: DT Series (Heavy Duty)
Number of Positions: 6 Pin (Socket Housing)
Modification: EP06 (End Cap + Enhanced Seal Retention)
Contact Size: Size 16 (Max 13 Amps)
Ingress Protection: IP68 & IP6K9K (Submersible & Steam Jet)
Housing Color: Black
Operating Temperature: -55°C to +125°C
Primary Application: Engine Harness, Heavy Equipment, Marine Electronics.

Product Detail

Product Tags

Buy DEUTSCH DT06-6S-EP06. 6-pin black socket housing with EP06 end cap and enhanced seal retention. Supports 13A per circuit, IP68/IP6K9K rated. Optimized for heavy-duty automotive power & signals.

Data Overview

Attribute Category	Technical Specification
Brand	DEUTSCH (TE Connectivity)
Model	DT06-6S-EP06
Connector System	Wire-to-Wire / Wire-to-Board
Connector Type	Housing for Female Terminals (Plug)
Position Count	6 Positions (2 Rows x 3)
Contact Size	Size 16 Socket
Max Current Rating	13 A per contact
Nominal Voltage	12V / 24V / 48V (Up to 250 VDC)
Housing Color	Black
Housing Material	PA GF (Glass Filled Polyamide)
Sealing Rating	IP68, IP6K9K
Mating Pin Diameter	1.59 mm [.063 in]
Operating Temp Range	-55°C to +125°C [-67°F to +257°F]
Compliance	SAE J2030, UL 94-HB

Product Details

Engineering Features & Specs	Technical & Assembly Advantages	Strategic Business Benefits
EP06 Enhanced Seal Retention	Features an internal modification that prevents the orange silicone seal from rolling or dislodging during mating.	Zero Waterproofing Failures: Eliminates the risk of moisture ingress due to seal misalignment, significantly reducing field warranty claims.

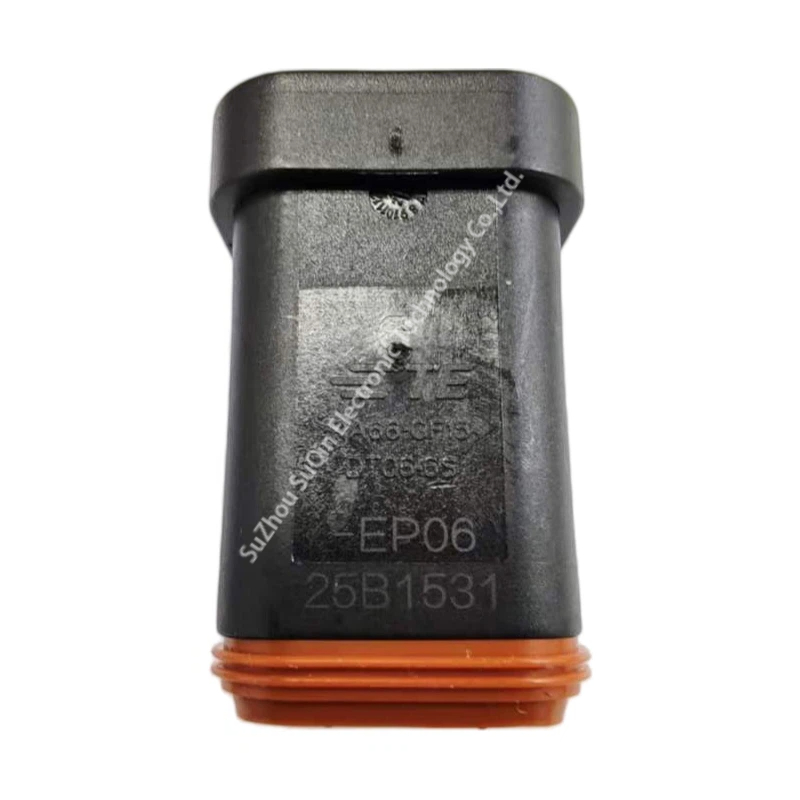

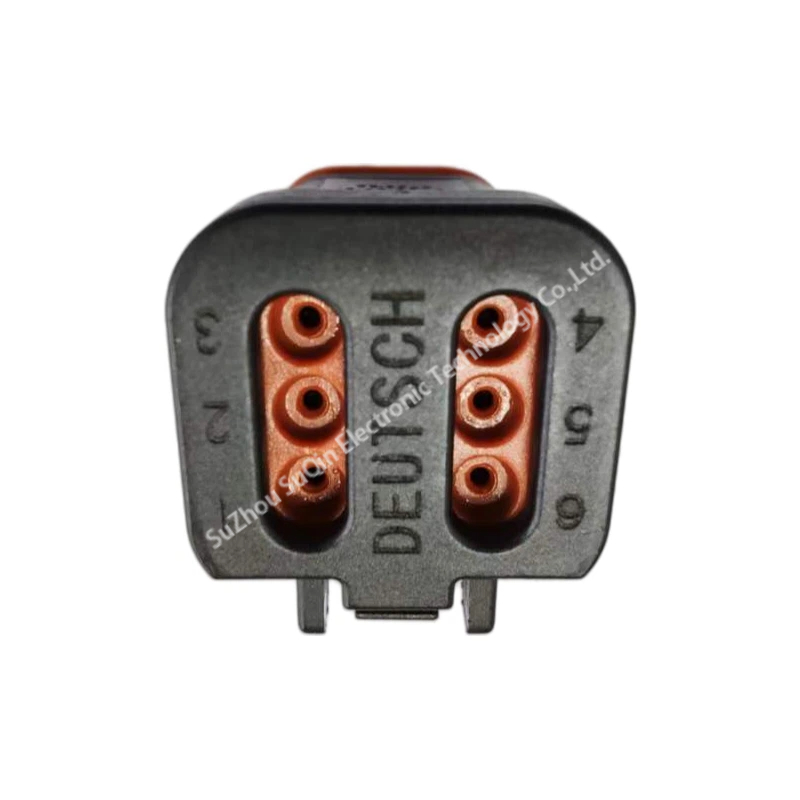

Integrated Protective End Cap	The rigid black end cap acts as a strain relief guide and shields the rear seals from high-pressure water and debris.	Maximum Durability: Protects critical wiring connections in exposed chassis locations, extending the operational life of the equipment.
Size 16 Precision Socket System	Supports a continuous current of 13A, providing stable conductivity for both power and sensor signals.	System Versatility: A single 6-pin interface can manage multiple functions (e.g., lighting + sensors), simplifying harness design and inventory.
PA GF Reinforced Thermoplastic	The glass-filled polyamide housing resists impact, extreme temperatures, and automotive fluids (oils/solvents).	Uninterrupted Performance: Ensures your electronics remain functional in the most grueling off-road or industrial environments, protecting brand trust.

Our advantage

● Brand supply diversification,
Convenient one-stop shopping

● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.

● Complete information, fast delivery
Reduce intermediate links

● Good after-sales service
Quick response, professional reply

● Original genuine guarantee
Support professional consultation

● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

Q1: What exactly does the “EP06” modification provide?

A: The EP06 modification is a “double-win” for reliability. First, it includes an End Cap for mechanical seal protection. Second, it features Enhanced Seal Retention , which uses an internal structure to lock the front silicone seal in place more firmly than standard DT connectors, preventing it from moving during multiple mating cycles.

Q2: Which secondary Wedge Lock do I need for the DT06-6S-EP06?

A: This 6-pin socket housing requires the W6S wedge lock (typically green). The wedge lock is essential for terminal alignment and to lock the terminals into the housing securely.

Q3: Can I use this connector with standard DT terminals?

A: Yes. The DT06-6S-EP06 is fully compatible with all standard DEUTSCH Size 16 contacts, including both solid (0462-201-16141) and stamped & formed (AT62-16-0122) versions.
