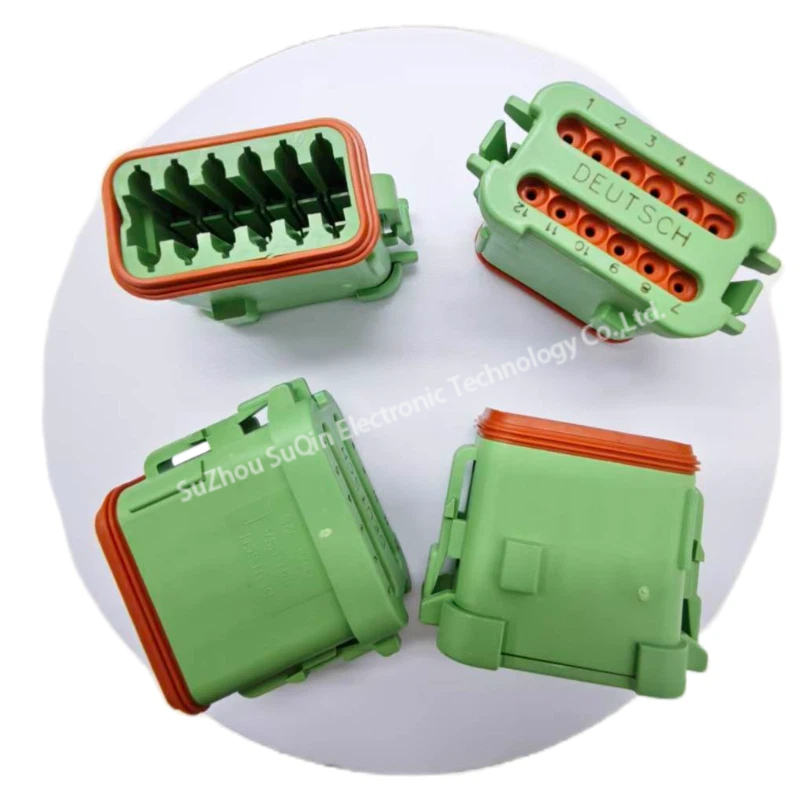

DT06-12SC-EP06 DEUTSCH 12-Pin Green Plug | Keying Code C & Enhanced Seal
Short Description:
-
-
Manufacturer: DEUTSCH (TE Connectivity)
-
Part Number: DT06-12SC-EP06
-
Color / Keying: Green / Code C (Mechanical Polarization)
-
Modification Code: EP06 (End Cap + Enhanced Seal Retention)
-
Number of Positions: 12 Pin (Dual Row)
-
Contact Size: Size 16 (Rated 13 Amps)
-
Ingress Protection: IP68 & IP6K9K (Waterproof & Steam Jet Resistant)
-
Housing Material: PA GF (Glass Filled Polyamide)
-
Operating Temp: -55°C to +125°C [-67°F to +257°F]
-
Mating Wedge Lock: W12S (Sold Separately)
-
Product Detail
Product Tags
Buy DEUTSCH DT06-12SC-EP06. 12-position green female housing featuring Keying Code C and EP06 modification (End Cap + Enhanced Seal Retention). IP68/IP6K9K rated for heavy-duty automotive and industrial power circuits.
Data Overview
| Attribute Category | Technical Specification |
| Series | DEUTSCH DT Series |
| Model Number | DT06-12SC-EP06 |
| Connector Type | Housing for Female Terminals (Plug) |
| Positions | 12 |
| Keying Code | Code C (Green) |
| Modification | EP06 (End Cap / Enhanced Seal Retention) |
| Current Rating | 13 Amps (Max) |
| Voltage Rating | 250 VAC / VDC |
| Contact Size | Size 16 (1.59 mm Pin) |
| Compatible Wire Size | 14 – 20 AWG (0.5 – 2.0 mm²) |
| Insulation Diameter Range | 2.23 – 3.68 mm [.088 – .145 in] |
| Environmental Rating | IP68 / IP6K9K |
| Mating Alignment | Keyed / Polarized |
Product Details
| Engineering Features & Specs | Technical & Assembly Advantages | Strategic Business Benefits |
| Mechanical Keying Code C (Green) | Unique internal slotting prevents mating with any DT04-12P except the matching Code C receptacle. | Eliminate Mating Errors: Prevents costly damage to sensitive electronics caused by plugging the wrong harness into the wrong port during field service. |
| EP06 Enhanced Seal Retention | Features a specialized housing structure that locks the perimeter seal in place, preventing it from rolling or popping out. | Superior Leak Protection: Ensures the IP68 seal remains intact even after multiple mating cycles, drastically reducing warranty claims related to water ingress. |

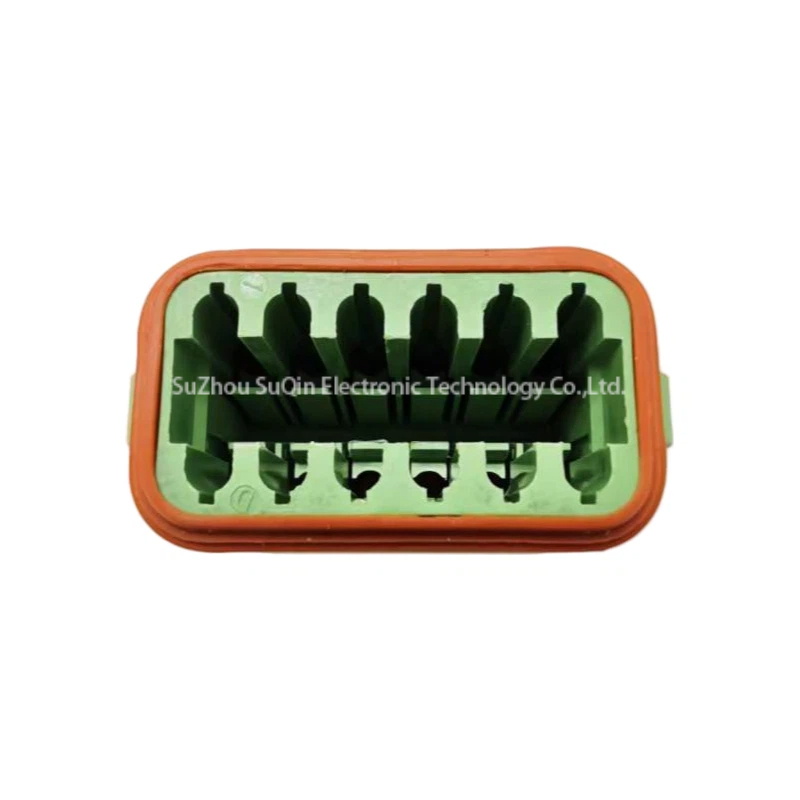

| Integrated Protective End Cap | Provides an extra layer of protection for wire entry points and offers improved strain relief for the harness. | Long-Term Durability: Shields individual wire seals from mud, debris, and physical impact, extending the life of the connection in off-road environments. |
| Rugged PA GF Construction | The glass-filled shell withstands extreme vibration (SAE J2030) and common automotive chemicals. | Reliable Power Delivery: Maintains structural integrity under heat and stress, ensuring consistent 13A power flow to critical systems. |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.
Q1: Why is the DT06-12SC-EP06 color-coded green, and can it mate with gray DT receptacles?
A: The green color signifies Keying Code C. It features a unique mechanical polarization (slotting) that allows it to mate only with a matching Code C receptacle (such as DT04-12PC). It will not fit into standard gray (Code A) or black (Code B) housings. This design is critical in complex harnesses to prevent cross-mating errors between different circuits.
Q2: What specific advantages does the EP06 modification offer over the standard DT series?
A: The EP06 modification provides two major upgrades: First, it includes an integrated End Cap that protects the rear wire seals from physical damage and debris. Second, it features Enhanced Seal Retention, which utilizes a modified housing structure to lock the perimeter seal in place, preventing it from rolling or displacing during high-force mating cycles.
Q3: Which terminals and wedge locks are required for a complete assembly?
A: To complete the connection, you will need 12 pieces of Size 16 DEUTSCH terminals (either solid or stamped & formed, rated up to 13A). Additionally, a W12S-P012 (or standard green W12S) wedge lock is required to secure the contacts and maintain the integrity of the Keying Code C alignment. We recommend using nickel-plated or gold-plated contacts for high-vibration automotive environments.
