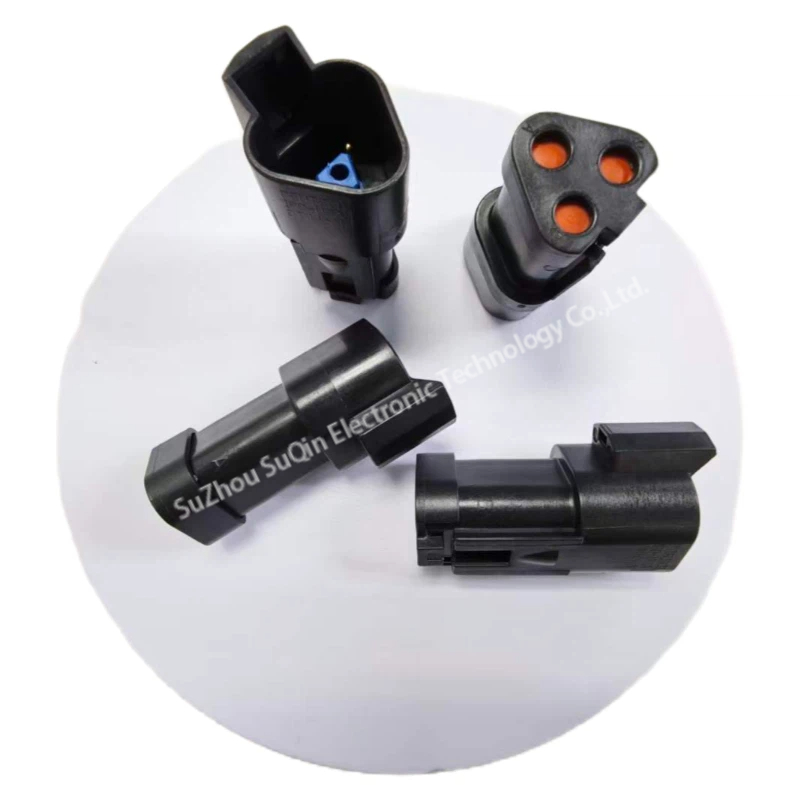

DT04-3P-EP10 DEUTSCH 3-Pin Black Receptacle | Integrated 120 Ohm CAN Bus Terminator

Short Description:

Manufacturer: DEUTSCH (TE Connectivity)
Part Number: DT04-3P-EP10
Modification Code: EP10 (Integrated 120 Ohm Resistor)
System Application: J1939 / CAN Bus Termination

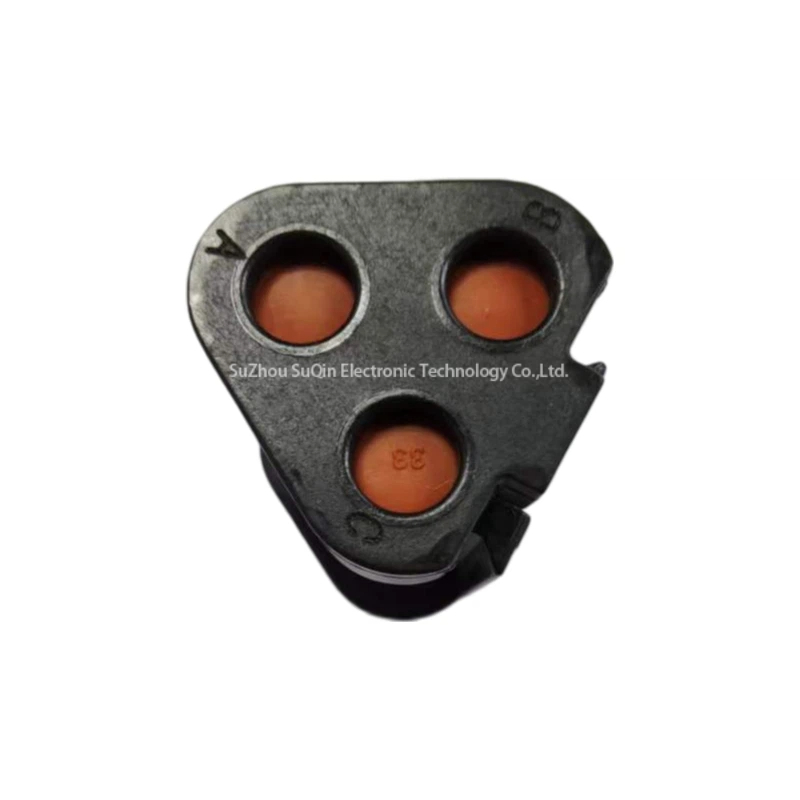

Number of Positions: 3 Pin (Triangular Layout)
Contact Size: Size 16 (Max 13 Amps)
Ingress Protection: IP68 & IP6K9K (Fully Waterproof)
Housing Color: Black
Body Material: PA GF (Glass Filled Polyamide)
Operating Temp: -55°C to +125°C

Product Detail

Product Tags

Buy DEUTSCH DT04-3P-EP10. High-performance 3-pin black triangular receptacle with integrated 120-ohm resistor for J1939/CAN-Bus signal termination. IP68/IP6K9K rated for heavy-duty environments.

Data Overview

Attribute Category	Technical Specification
Brand	DEUTSCH (TE Connectivity)
Model	DT04-3P-EP10
Connector System	Wire-to-Wire / Signal Termination
Connector Type	Housing for Male Terminals (Receptacle)
Internal Modification	120 Ohm Resistor (±5% Typical)
Number of Positions	3 (Triangular)
Housing Color	Black
Contact Size / Rating	Size 16 / 13 Amps
Pitch (Centerline)	8.7 mm [.341 in]
IP Rating	IP68 / IP6K9K
Operating Voltage	Up to 250 VDC
Operating Temperature	-55°C to +125°C [-67°F to +257°F]
Flammability Rating	UL 94-HB (12mm Flame Test)

Product Details

Engineering Features & Specs	Technical & Assembly Advantages	Strategic Business Benefits
Integrated 120Ω Resistor (EP10)	Pre-installed precision resistor within the housing eliminates the need for manual splicing or external resistor modules.	Communication Stability: Effectively suppresses signal reflection in CAN-bus networks, ensuring reliable data transmission and reducing diagnostic errors.

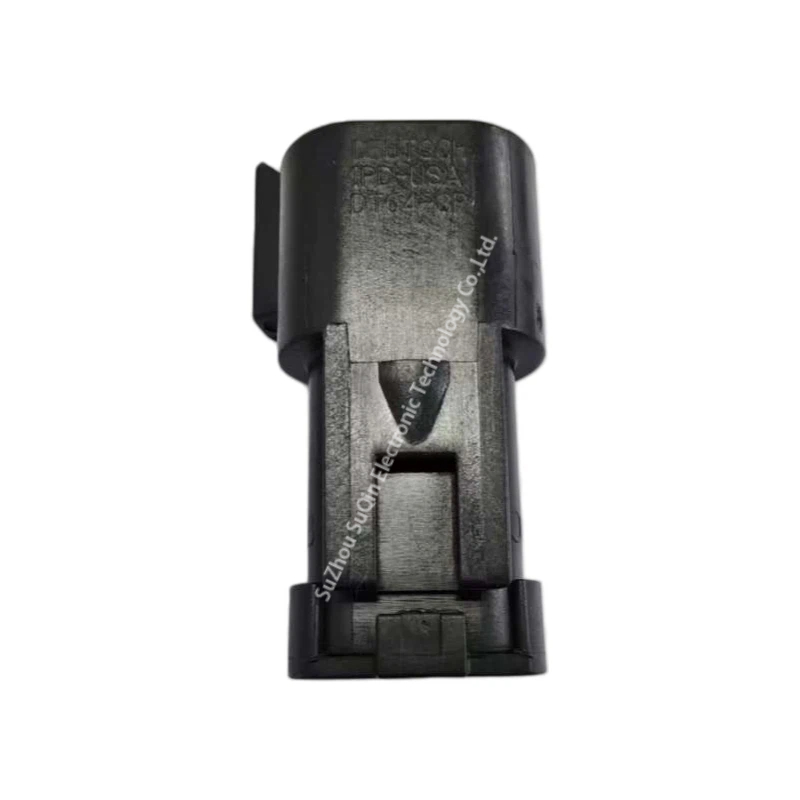

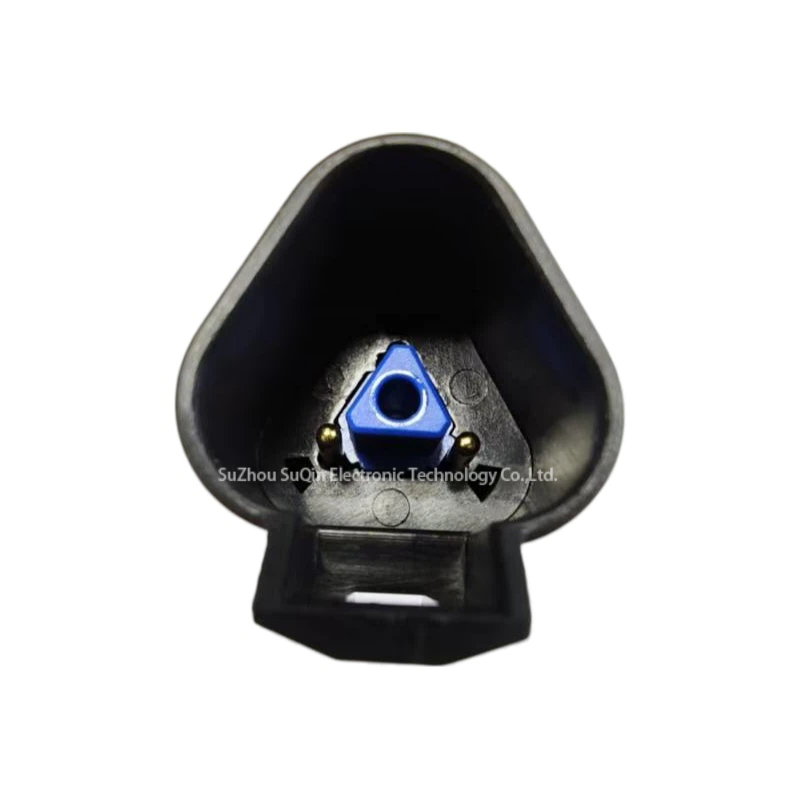

Triangular Space-Saving Profile	The distinct triangular 3-pin geometry ensures a compact footprint while preventing mis-mating with 2 or 4-pin clusters.	Efficient System Integration: Simplifies harness architecture in tight engine compartments, speeding up both production and field retrofitting.
Dual-Rated IP68/IP6K9K Sealing	Engineered to withstand high-pressure steam jet cleaning and long-term submersion in mud or water.	Zero Downtime: Protects sensitive termination components from the corrosive environments of mining and agriculture, extending the vehicle’s lifespan.
Reinforced PA GF Housing	High-impact glass-filled thermoplastic maintains structural integrity under extreme vibration and temperature cycling.	Reduced Field Failures: Eliminates the vulnerability of hand-made termination points, protecting the manufacturer’s brand reputation for quality.

Our advantage

● Brand supply diversification,
Convenient one-stop shopping

● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.

● Complete information, fast delivery
Reduce intermediate links

● Good after-sales service
Quick response, professional reply

● Original genuine guarantee
Support professional consultation

● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

Q1: What is the specific resistance of the DT04-3P-EP10?

A: This model features a built-in 120-ohm resistor. This is the industry standard for terminating CAN-bus (J1939) networks to match the characteristic impedance of the twisted-pair cable and prevent signal reflection.

Q2: Does this connector require a separate wedge lock?

A: Yes. Even though it has an internal resistor, you still need to use a W3P wedge lock (typically orange or green) to ensure the terminals and the resistor leads are properly aligned and locked into the housing.

Q3: Is the DT04-3P-EP10 compatible with the standard gray DT06-3S plug?

A: Yes, it is fully compatible with any DT06-3S series plug. However, in CAN-bus systems, it is common to pair this black receptacle with the corresponding black plug for visual consistency and easy identification on the harness.
