DEUTSCH DT06-3S-E008 3-Pin Plug | Gray Socket Housing with Shrink Boot Adapter

Short Description:

Manufacturer: TE Connectivity / DEUTSCH
Part Number: DT06-3S-E008
Series: DT Series
Modification: E008 (Shrink Boot Adapter)
Number of Positions: 3 Positions (Triangular Shape)
Connector Type: Housing for Female Terminals (Socket)
Contact Size: Size 16 (13A Max)
Ingress Protection: IP68 & IP6K9K (Fully Sealed)
Operating Temp: -55°C to +125°C
Application: Power & Signal (EV, Racing, Industrial)

Product Detail

Product Tags

Buy DEUTSCH DT06-3S-E008. A 3-position gray socket housing with integrated Shrink Boot Adapter. IP68/IP6K9K rated, 13A current capacity, and SAE J2030 compliant for heavy-duty sealing.

Data Overview

Attribute	Specification
Brand	TE Connectivity / DEUTSCH
Part Number	DT06-3S-E008
Modification Code	E008 (Shrink Boot Adapter)
Number of Positions	3
Shape	Triangular
Contact Size / Type	Size 16 / Socket
Current Rating	13 A Max
Operating Voltage	250 VDC / 250 VAC
Nominal Voltage Architecture	12V, 24V, 48V
Housing Material	PA GF (Glass-Filled Polyamide)
Centerline (Pitch)	8.66 mm (0.341 in)
Sealing Protection	IP68, IP6K9K
Compliance	SAE J2030, UL 94V-0 (Standard)

Product Details

Product Features	Engineering Advantages	Customer Benefits

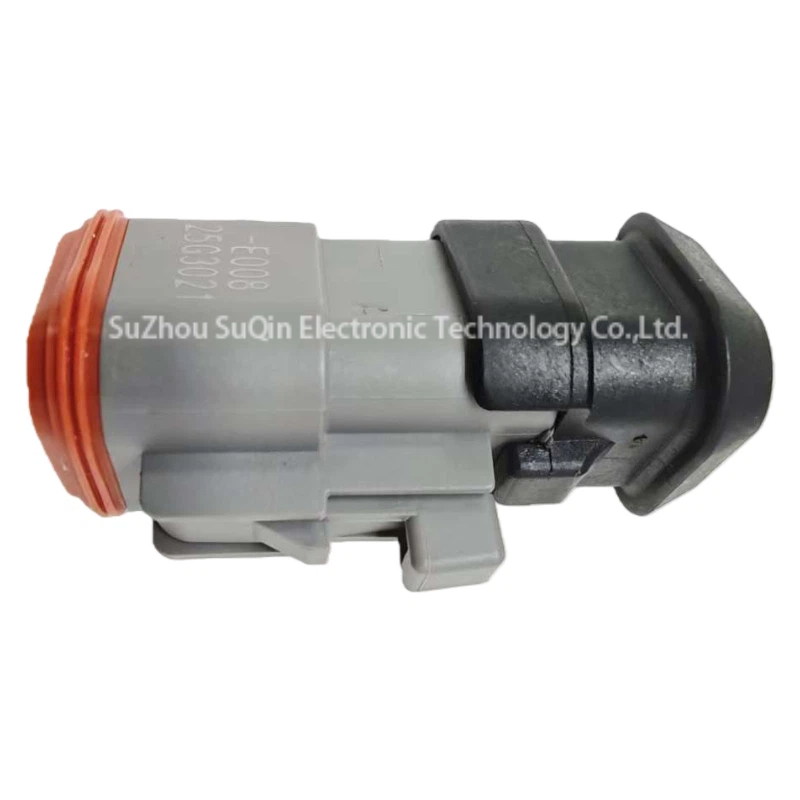

Integrated E008 Shrink Boot Adapter	Provides a dedicated rear attachment point for heat-shrinkable boots and tubing.	Superior Strain Relief: Ensures a professional, ultra-secure seal at the back of the connector, preventing wire fatigue and moisture ingress in high-flex or vibration areas.

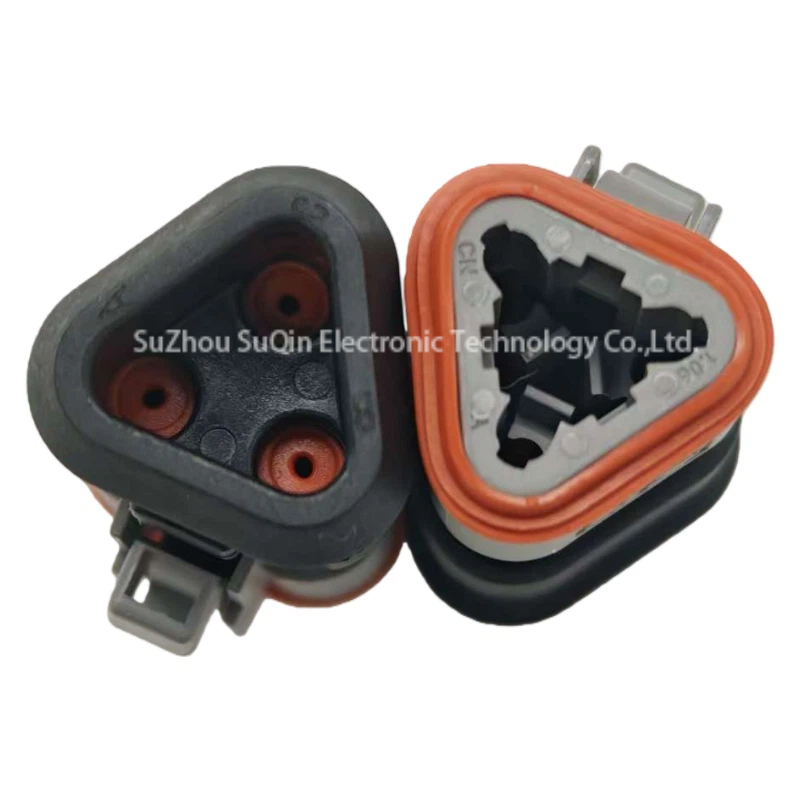

Unique Triangular 3-Way Layout	Compact triangular configuration designed for minimal footprint and precise polarization.	Compact & Error-Proof: Allows for high-density wiring in tight spaces while the keyed design prevents incorrect mating, saving installation and maintenance time.
High-Grade PA GF Housing	Molded from Glass-Filled Polyamide for exceptional ruggedness and UL-94 flame resistance.	Extreme Reliability: Maintains structural integrity under crushing loads and temperature swings from -55°C to 125°C, ensuring mission-critical systems never fail.
Size 16 Contact Compatibility	Supports industry-standard Size 16 sockets with a 13-Amp high-current rating.	Versatile Power Delivery: Capable of handling both signal and moderate power loads, making it a universal solution for automotive engine and chassis wiring.

Our advantage

● Brand supply diversification,
Convenient one-stop shopping

● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.

● Complete information, fast delivery
Reduce intermediate links

● Good after-sales service
Quick response, professional reply

● Original genuine guarantee
Support professional consultation

● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

Q1: What is the benefit of the E008 modification on the DT06-3S?

A: The E008 modification features an extended rear adapter specifically designed to hold a heat shrink boot (like Raychem boots). This provides superior environmental sealing and strain relief compared to a standard DT housing, especially in racing and heavy industrial applications.

Q2: Which wedgelock is required for this 3-pin plug?

A: The DT06-3S-E008 requires the W3S (Green) wedgelock to ensure proper terminal retention and position assurance. The wedgelock is sold separately.

Q3: Is this housing compatible with standard Size 16 DT terminals?

A: Yes, it is fully compatible with all standard Size 16 DEUTSCH DT socket terminals, including both solid (nickel or gold plated) and stamped-and-formed versions.
