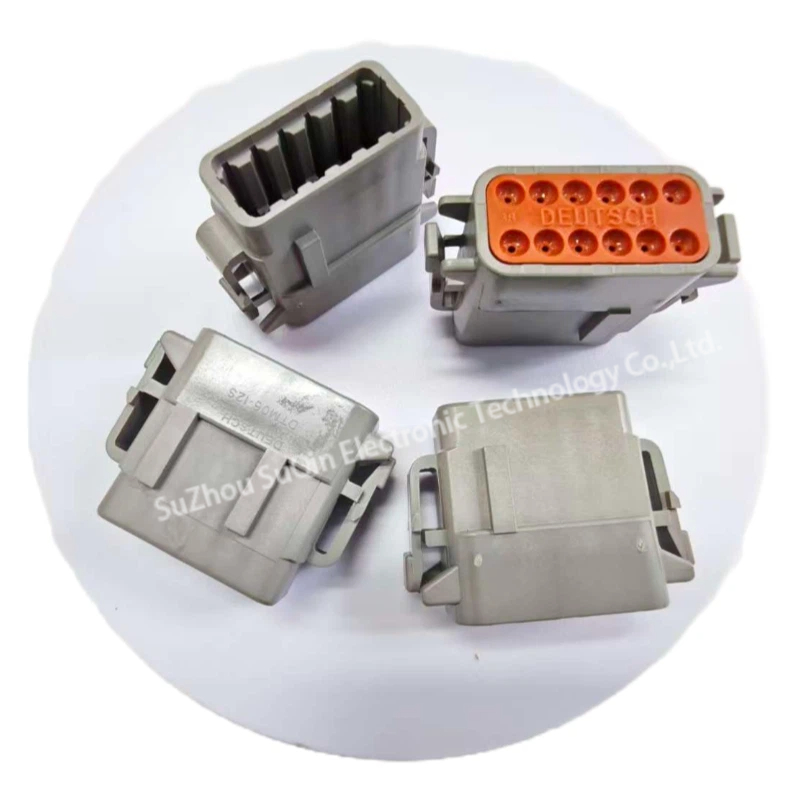

DTM06-12SA DEUTSCH 12-Pin Gray Plug | IP68 Sealed Size 20
Short Description:
-
Manufacturer: DEUTSCH (TE Connectivity)
-
Part Number: DTM06-12SA
-
Series: DTM Series (Miniaturized DT)
-
Number of Positions: 12 Pin
-
Contact Size: Size 20 (7.5 Amps)
-
IP Rating: IP68 & IP6K9K (Submersible & Steam Jet Resistant)
-
Keying / Color: A-Key / Gray
-
Operating Temp: -55°C to +125°C
-
Material: PA66 GF15 (Rugged Thermoplastic)
-
Voltage: 250 VAC/VDC
Product Detail
Product Tags
Buy DEUTSCH DTM06-12SA. A 12-position miniaturized sealed plug for Size 20 sockets. Features IP68/IP6K9K rating, 7.5A capacity, and gray A-keying. Perfect for high-density automotive & marine wiring.
Data Overview
| Attribute Category | Technical Specification |
| Brand | DEUTSCH (TE Connectivity) |
| Model | DTM06-12SA |
| Connector System | Wire-to-Wire / Wire-to-Board |
| Connector Type | Housing for Female Terminals (Plug) |
| Circuit Count | 12 Positions |
| Number of Rows | 2 Rows |
| Contact Size | Size 20 |
| Mating Pin Diameter | 1.02 mm [.04 in] |
| Current Rating (Max) | 7.5 A |
| Nominal Voltage | 12V / 24V / 48V (Up to 250V) |
| Centerline (Pitch) | 3.81 mm [.15 in] |
| Housing Material | PA 66 GF15 (Glass Filled Nylon) |
| Sealing Level | IP68, IP6K9K |
| Insulation Diameter Range | 1.35 – 3.05 mm [.053 – .12 in] |
| Standards Compliance | SAE J2030, UL 94V-0 |
Product Details
| Attribute Category | Technical Specification |
| Brand | DEUTSCH (TE Connectivity) |
| Model | DTM06-12SA |
| Connector System | Wire-to-Wire / Wire-to-Board |
| Connector Type | Housing for Female Terminals (Plug) |
| Circuit Count | 12 Positions |
| Number of Rows | 2 Rows |
| Contact Size | Size 20 |
| Mating Pin Diameter | 1.02 mm [.04 in] |
| Current Rating (Max) | 7.5 A |
| Nominal Voltage | 12V / 24V / 48V (Up to 250V) |
| Centerline (Pitch) | 3.81 mm [.15 in] |
| Housing Material | PA 66 GF15 (Glass Filled Nylon) |
| Sealing Level | IP68, IP6K9K |
| Insulation Diameter Range | 1.35 – 3.05 mm [.053 – .12 in] |
| Standards Compliance | SAE J2030, UL 94V-0 |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.
Q1: Do I need a wedge lock for the DTM06-12SA?
A: Yes. To ensure the terminals are securely locked and the seal is properly seated, you must use the WM-12S wedge lock. The connector is not considered fully assembled without this secondary locking piece.
2: What is the difference between DTM and DT series?
A: The DTM series is a miniaturized version of the DT series. It uses Size 20 contacts (7.5A max), whereas the DT series uses Size 16 (13A max). DTM is the preferred choice when space is limited but high-level sealing is still required.
Q3: Which wire size is compatible with DTM06-12SA?
A: This housing accepts wires with an insulation diameter between 1.35 mm and 3.05 mm, typically covering 16-22 AWG (0.5 – 1.5 mm²), depending on the specific Size 20 terminal used.
