DEUTSCH DT Series DT06-12SB 12-Pin Black Receptacle Housing | Suqin
Short Description:
-

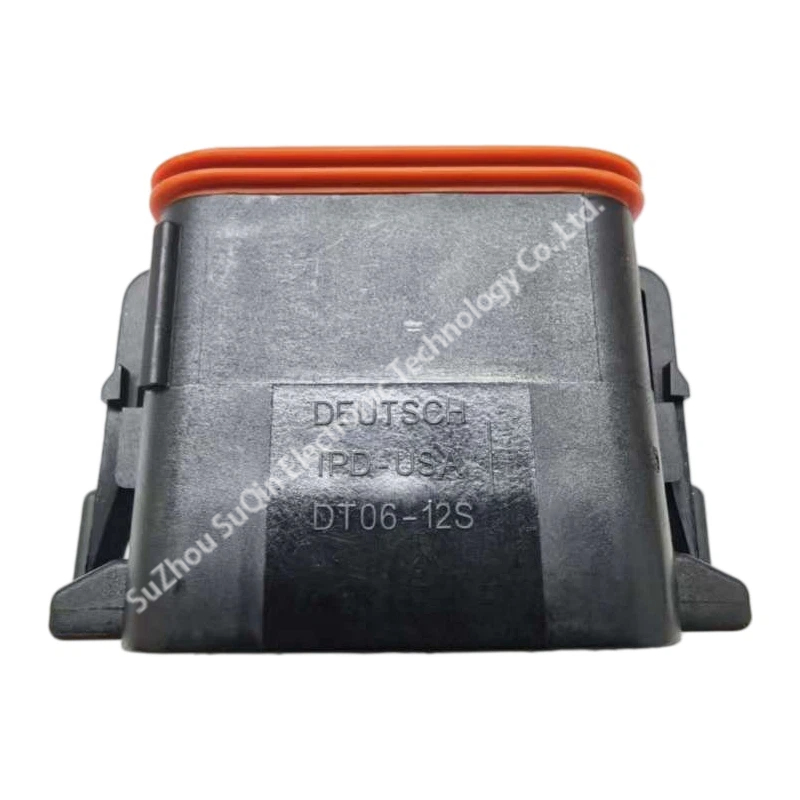

Series & Manufacturer: Manufactured by TE Connectivity under the DEUTSCH DT product family, carrying the part number DT06-12SB.
-

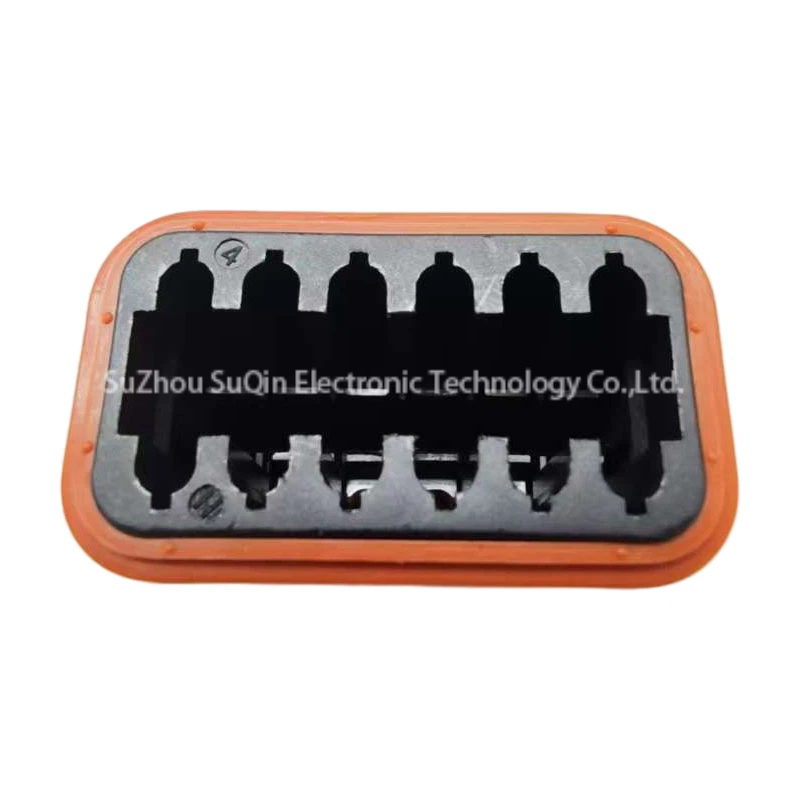

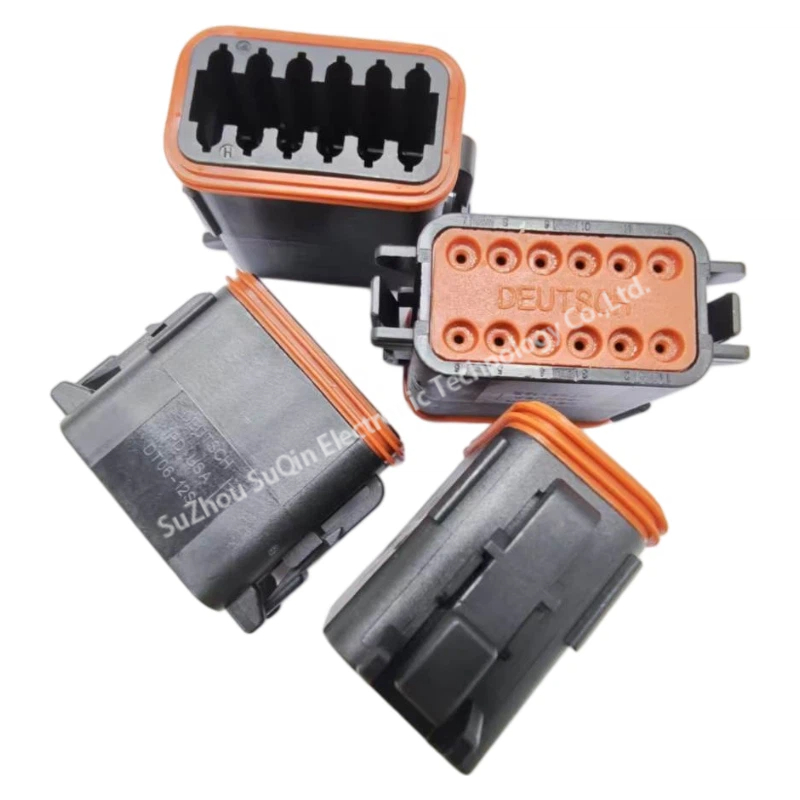

Configuration & Layout: Designed as a 12-position, dual-row rectangular housing configured for female size 16 socket contacts.
-

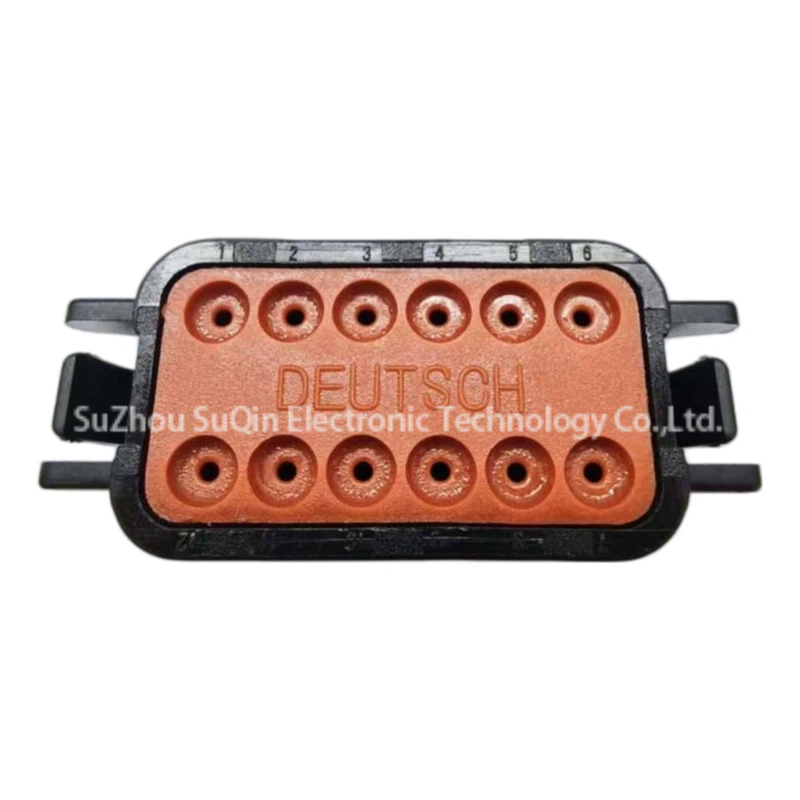

Environmental Sealing: Rated to IP68 and IP6K9K ingress protection standards, featuring an integrated orange radial seal and an orange rear wire seal to prevent moisture and dust ingress.
-
Material Composition: Injection-molded from glass-fiber reinforced Polyamide (PA GF) in standard industrial black, built to operate within a temperature range of -55°C to 125°C.
-
Mating & Retention Security: Features Keying Code B alignment to prevent mismatching and integrates housing latches compatible with secondary Terminal Position Assurance (Wedge Lock W12S, sold separately).
Product Detail
Product Tags
Factory-original DEUTSCH DT Series DT06-12SB 12-position black automotive connector housing for female socket contacts. Features Keying B, IP68/IP6K9K sealing, and glass-filled PA GF construction. Available via Suzhou Suqin.
Data Overview
| Parameter | Technical Specification |
| Manufacturer | DEUTSCH (TE Connectivity) |
| Part Number | DT06-12SB (Alternative: DT06-12S) |
| Series | DEUTSCH DT |
| Connector Type | Housing for Female Terminals (Receptacle) |
| Connector System | Wire-to-Wire |
| Number of Positions | 12 |
| Number of Rows | 2 |
| Pitch (Centerline) | 4.44 mm [.175 in] |
| Row-to-Row Spacing | 9.12 mm [.359 in] |
| Housing Material | PA GF (Polyamide Glass Filled) |
| Primary Product Color | Black |
| Keying Code | B |
| Contact Type | Socket |
| Contact Size | Size 16 |
| Mating Pin Diameter | 1.59 mm [.063 in] |
| Max Contact Current Rating | 13 A |
| Sealable | Yes |
| IP Rating | IP68 / IP6K9K |
| Operating Voltage | 250 VAC / 250 VDC |
| Nominal Voltage Architecture | 12 V / 24 V / 48 V |
| Cable Exit Angle | 180° (Straight) |
| Operating Temperature Range | -55°C to 125°C [-67°F to 257°F] |
| Compatible Insulation Diameter | 2.23 mm – 3.68 mm [.088 in – .145 in] |
| Agency/Standards Compatibility | SAE J2030 |
| UL Flammability Rating | 12mm Flame Test per Standard UL-94 |
| Primary Locking Feature | Integrated in Housing |
| Terminal Position Assurance | Yes (Requires Wedgelock W12S, sold separately) |
| Connector Mounting Type | Free-Hanging (In-Line) |
| Connector Dimensions (HLW) | 40.56 mm * 30.94 mm * 18.19 mm |
Product Details
| Mechanical Structure & Mating | Electrical Transmission & Insulation | Environmental Sealing & Material |
| 12-Circuit Dual-Row Key B Layout Configured in a 2 x 6 rectangular cavity layout with mechanical Keying Code B to ensure correct mating orientation in multi-connector installations. | 13A Rating with 4.44mm Pitch Built to house size 16 female socket terminals (1.59 mm mating pin diameter) supporting continuous electrical currents up to 13A. | IP68/IP6K9K Black PA GF Shell Molded from black glass-fiber reinforced Polyamide (PA GF) material for mechanical ruggedness and resistance to industrial fluids. |
| Integrates standard lateral locking latches for secure free-hanging inline mating with DT04-12PB plug series. | Features a 4.44 mm [.175 in] centerline pitch and 9.12 mm [.359 in] row-to-row spacing to maintain dielectric isolation up to 250 VAC/VDC. | Incorporates a front silicone radial gasket and rear wire seal compatible with insulation diameters of 2.23 – 3.68 mm [.088 – .145 in] per SAE J2030 standards. |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.
Q1: Does the DT06-12SB housing come package-complete with the wedgelock and terminals?
A: No. The part number DT06-12SB refers specifically to the black thermoplastic housing with its integrated wire and front radial seals. The secondary wedgelock (part number W12S) and DEUTSCH Size 16 solid or stamped & formed female socket contacts must be ordered separately based on your specific wire gauge.
Q2: What is the difference between DT06-12SA and DT06-12SB?
A: The differences lie in the color and mechanical keying. DT06-12SA is gray with Keying Code A, whereas DT06-12SB is black with Keying Code B. This mechanical keying difference prevents the accidental mis-mating of adjacent connectors carrying different circuits on the same wiring harness.
Q3: Can the DT06-12SB connector be used in marine or engine compartment environments?
A: Yes. The DT06-12SB is built from glass-filled polyamide (PA GF) and rated to IP68 and IP6K9K standards. It complies with SAE J2030 specifications, making it resistant to salt spray, fuel, engine lubricants, and moisture exposure under extreme temperature ranges of -55°C to 125°C.
