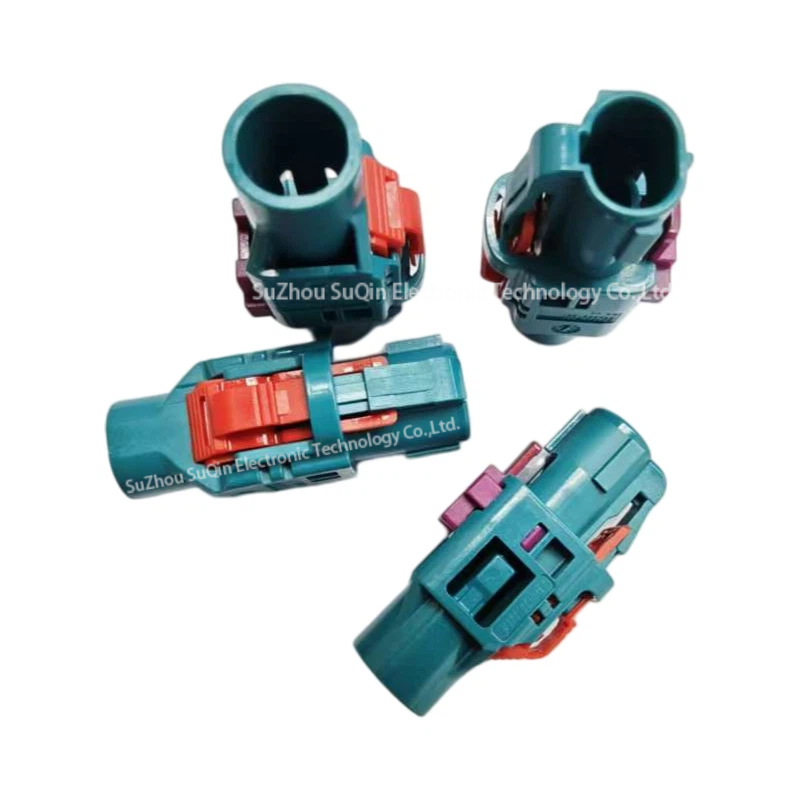

E6Z020-000-Z | Rosenberger H-MTD Code Z Water Blue Single Plug Housing
Short Description:
Product Detail
Product Tags
Source genuine Rosenberger E6Z020-000-Z H-MTD Code Z universal water blue straight single plug housings at Suzhou Suqin. Engineered for automotive ethernet, ADAS, and high-frequency RF data links up to 20 GHz.
Data Overview
| Attribute Category | Technical Specifications |
| Brand | Rosenberger |
| Part Number (PN) | E6Z020-000-Z |
| Product Subcategory | High-Speed Automotive Telematics Connectors |

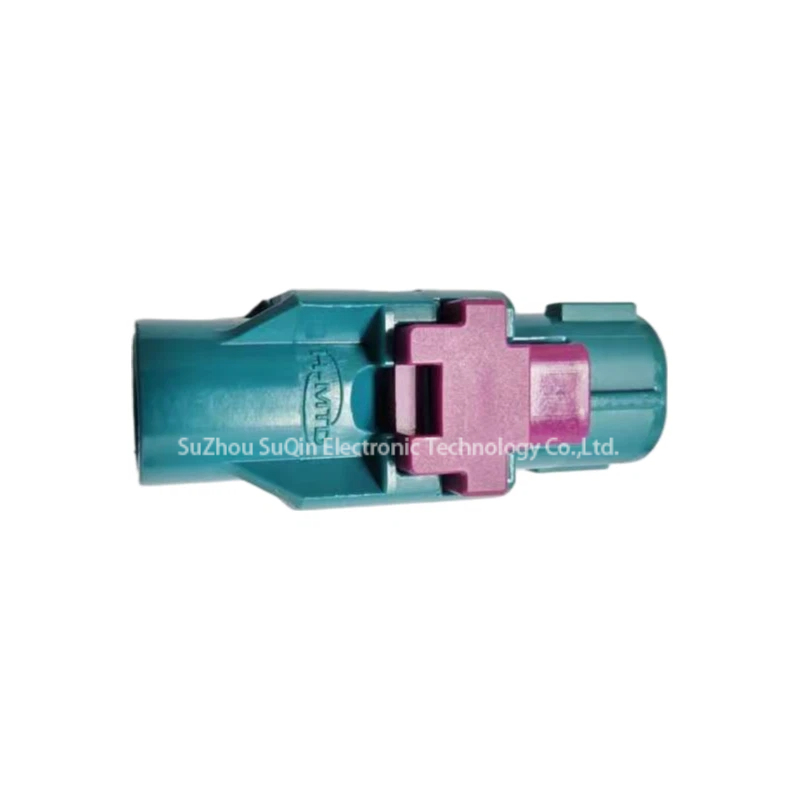

| In-Series / Inter-Series | In-Series H-MTD Interface Application |
| Component Profile | Plastic Outer Housing Body |
| Gender Definition | Male Plug Profile |
| Body Alignment | Straight Design |
| Housing Cavity Count | Single (1-Way Configuration) |
| H-MTD Coding Arrangement | Code Z (Universal / Neutral Type) |
| Standard Color Coding | Water Blue |
| Secondary Locking System | Red Connector Position Assurance (CPA) Mechanism |

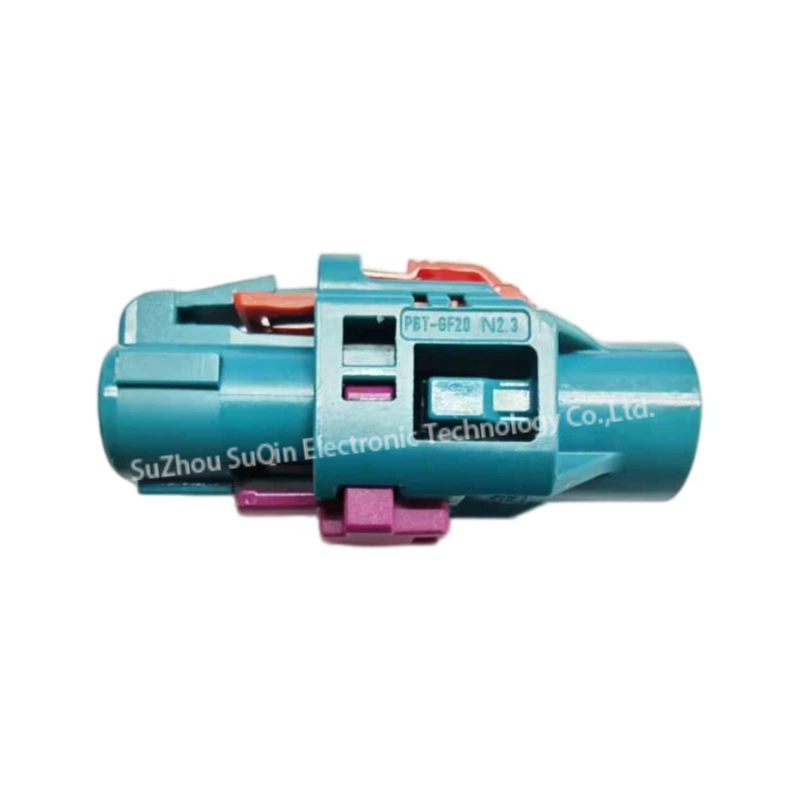

| Material Composition | PBT-GF20 Polymer |
| Primary Technology Category | Automotive Ethernet / Shielded Twisted Pair Data Routing |
| Maximum Operating Frequency | Up to 20 GHz |
| Maximum Data Rate Capacity | Up to 15 Gbps |
| Market Segment Target | ADAS Cameras, Autonomous Radar, LiDAR Systems, High-Res Displays |
| Country of Origin | Germany |
Product Details
| Universal Code Z High-Speed Keying | Optimized PBT-GF20 Material Grade | Dual-Locking CPA Security Mechanism |
| Feature: Molded to standard H-MTD Code Z geometry utilizing the universal neutral water blue color profile. | Feature: Molded from structural PBT-GF20 composite material displaying high rigid strength. | Feature: Built-in secondary mechanical engagement lever highlighted in bright contrasting red. |
| Advantage: Bypasses the strict mechanical keying lockouts of individual alphabetical codes to enable multi-use cross-mating. | Advantage: Provides outstanding dimensional stability, remaining resistant to high impacts and thermal deformation. | Advantage: Yields an unmistakable tactile snap and locks the connection tight against accidental pullouts. |
| Benefit: Simplifies wire harness testing procedures and minimizes factory warehouse SKU holding costs dramatically. | Benefit: Ensures the internal high-frequency 20 GHz center contacts remain in precise alignment over years of active driving. | Benefit: Eliminates signal micro-disconnections caused by constant chassis vibration on rough or unpaved road surfaces. |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.
Q1: What specific role does the red component on the Rosenberger E6Z020-000-Z play in wire harness safety?
A: The bright red lever is an integrated Connector Position Assurance (CPA) lock mechanism. Once the water blue H-MTD male plug is fully inserted into its mating counterpart, pushing the CPA forward acts as a secondary lock. This dual-stage retention system ensures that the plug cannot be pulled or vibrated apart under heavy automotive chassis movement, completely preventing accidental field disconnects.
Q2: What are the target transmission capabilities of the H-MTD series that this housing supports?
A: The Rosenberger H-MTD series is specifically engineered for next-generation vehicle networks. When paired with high-performance internal contacts and shielded cables, it supports raw data frequencies up to 20 GHz and extreme bandwidths up to 15 Gbps. This makes it a primary choice for autonomous driving ADAS cameras, uncompressed high-resolution cockpit displays, and automotive ethernet networks.
Q3: Can the Code Z configuration of the E6Z020-000-Z housing be used interchangeably with other colors?
A: Yes. Code Z (Water Blue) is the universal neutral coding defined under standard automotive layout specs. Unlike specific coding keys (such as Code A, B, or C) that have physical rib blockages to prevent mismating, Code Z has an adapted universal alignment that bypasses mechanical slot limits. This allows the E6Z020-000-Z plug housing to mate smoothly with any corresponding H-MTD female jack across your entire production line.
